920i® FlexWeigh Filler/Batcher Systems

Key Highlights

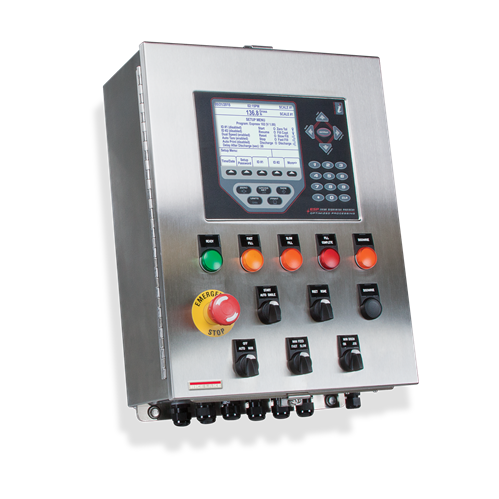

• Stainless steel wall-mount NEMA 4X enclosure

• Pre-engineered and pre-programmed for fast deployment

• Direct replacement for FlexWeigh DWM-IV systems

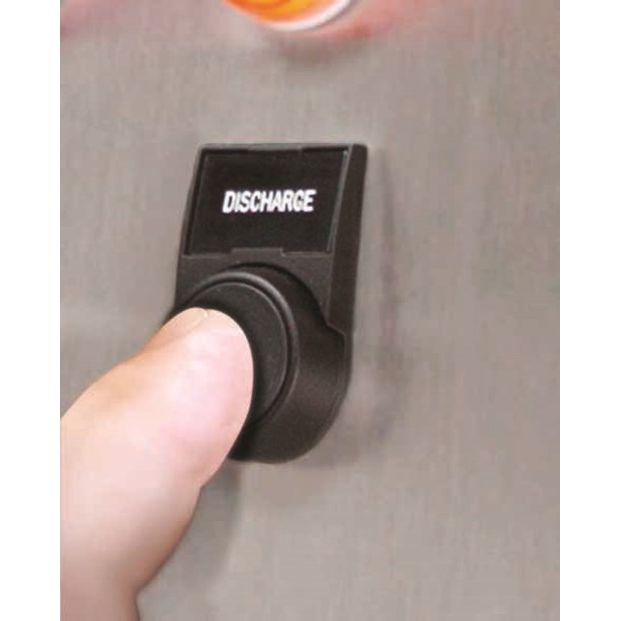

• Front panel switches including E-Stop, Start, Resume, and Discharge

• Softkeys for presets, CN#, ID#, formula#, totals

• Audit trail with accumulating total and subtotal registers

• Digital I/O board and relay output rack

• Rugged industrial build with customizable operational switches

The 920i FlexWeigh System offers a seamless, ready-to-install replacement for common manual and semi-automated weighing systems, including the FlexWeigh DWM-IV. Rice Lake combines the intelligence of the 920i programmable HMI indicator with durable control panel interfaces to automate and streamline a wide range of batching and filling applications.

Every model is factory-tested, pre-programmed, and optimized for immediate use, eliminating the need for time-consuming custom solutions. Operators benefit from fast deployment, reliable weighing, and simple operation, while supervisors gain accurate records and audit trails.

System Models

101 – Basic Filler

• Place empty container on the scale

• Automatically fill to preset weight

• Remove and replace container to repeat

102 – Automatic Fill and Discharge

• Automatically fill to preset weight

• Automatically discharge into container

• Cycle repeats upon container replacement

103 – Loss-In-Weight Filler (Refill Controlled)

• Dispense preset net weight quantities

• Refill triggered by low-level or preset limit

104 – Loss-In-Weight Filler (Continuous with Pause)

• Dispense until containers are empty

• System pauses mid-cycle and resumes upon refilling

201 – Multi-Ingredient Batcher (4 Dual-Speed / 8 Single-Speed)

• Automatically fill multiple ingredients in sequential order

• Ideal for multi-component product blending

202 – Multi-Ingredient Batcher with Discharge

• Fill tank or hopper with multiple ingredients

• Automatically discharge into vessel or process below

Switch and Output Summary

Indicator Features and Part Compatibility

• Front panel lamp indicators for Ready, Filling, Discharging, Refill Complete, Alarms

• Selector switches and push-button controls for Fill, Discharge, Refill, Dispense

• Legend plates for easy operator understanding

• Softkeys and legend lamps include Red, Green, Blue, and Amber indicators for state-specific signaling

• Designed for long lifecycle in rugged environments

  Eliminate custom programming delays and transition your weighing tasks into fully automated solutions with Rice Lake’s 920i FlexWeigh Systems—pre-configured, field-proven, and built to perform in harsh environments.
