Key Highlights
-
GLP/GMP/GCP/ISO Compliant: outputs calibration data and balance ID for full traceability.
-
System Diagnostics: alerts operators of abnormal weighing conditions for reliable performance.
-
RS-232C Bidirectional Interface: standard on HR-300i and HR-202i; optional on other models.
-
Clear LCD Display: for fast and accurate readability.
-
Weighing Chamber: ensures precision in controlled conditions.
-
WinCT® Software: for seamless communication and data transfer.
-
Underweigh Hook: supports density determination and specialized weighing applications.

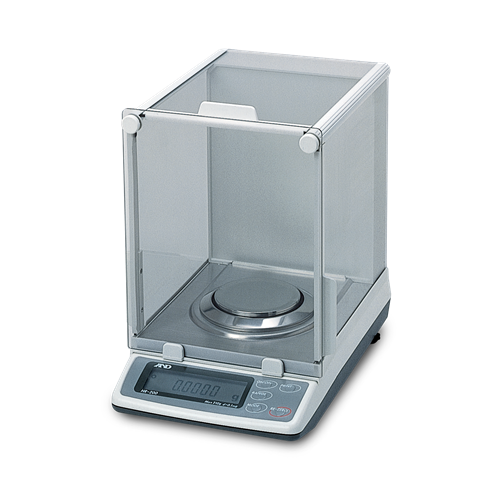

The A&D Orion HR Series Analytical Balance is engineered for laboratories requiring high precision and compliance-ready documentation. Built with advanced features such as GLP/GMP/GCP/ISO compliant outputs, the HR Series provides automatic recording of calibration data and balance identification to ensure accurate, verifiable results.
With system diagnostic capabilities, the Orion HR alerts operators to abnormal weighing conditions, maintaining consistent accuracy. An integrated LCD display and user-friendly design ensure simple operation, while the RS-232C interface (standard on select models) enables seamless data transfer to printers or PCs.
Designed for reliability in scientific, pharmaceutical, and industrial environments, the Orion HR Series balances deliver the precision and durability needed for routine lab use and advanced research.
Specifications
| Feature |
Specification |
| Weighing Units |
Carat, pennyweight, troy ounce, decimal ounce (see manual for full list) |
| Operating Modes |
Percentage, counting |
| Power |
120 VAC adapter, 50/60 Hz (110, 220, 240 V by special order) |
| Stabilization Time |
~3.5 seconds |
| Calibration Weight |
100 g / 200 g / 300 g |
| Operating Temperature |
41 °F to 104 °F (5 °C to 40 °C) |
| Humidity |
≤ 85% RH (non-condensing) |
| Approx. Weight |
17.6 lb (8.0 kg) |
| Warranty |
Five-year limited |
Model and Dimensions
| Model |
Capacity |
Readability |
Repeatability |
Linearity |
Weighing Chamber |
Pan Size |
Dimensions (W × D × H) |
Part Number |
| HR-300i |
320 g |
0.0001 g |
±0.0003 mg |
0.0002 mg |
6.45 × 5.84 × 9.88 in (164 × 149 × 251 mm) |
Ø 3.6 in (90 mm) |
8.54 × 17.4 × 12.24 in (217 × 442 × 316 mm) |
97642 |
Equip your lab with the A&D Orion HR Series Analytical Balance for unmatched accuracy, compliance-ready reporting, and long-term reliability.
Request a quote today to ensure your laboratory is prepared with precision you can trust.
