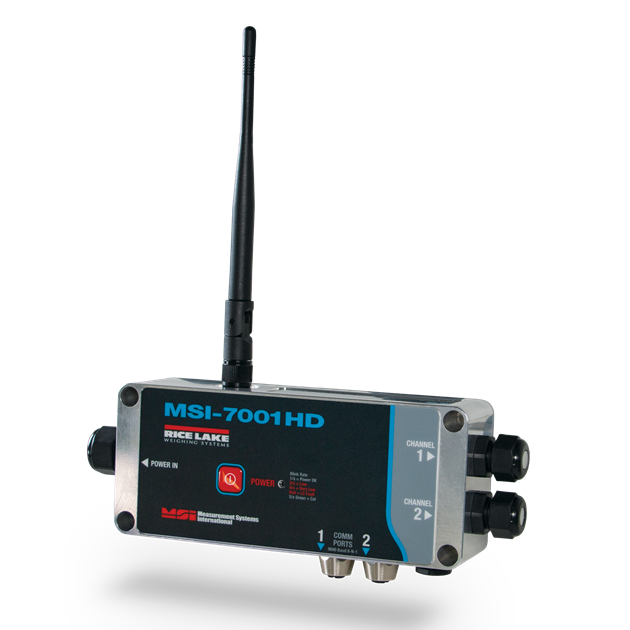

TranSend™ MSI-7001HD Wireless Load Cell Interface System
Original price
$1,523.75
-
Original price
$1,725.00
Original price
$1,523.75
$1,523.75
-
$1,725.00
Current price
$1,523.75
| /
Key Highlights
Compatible with any standard digital weight indicator
Wireless signal transmission from load cells to receiver
IP68-rated milled aluminum enclosure for rugged durability
Excitation voltage supplied by transmitter, not the indicator
Full duplex RS-232 communication
Wide operating temperature: -40 °F to 185 °F
Long-range transmission: up to 300 feet (line of sight)
Multiple RF communication options available (Wi-Fi, FHSS, 802.15.4)
Each transmitter/receiver pair individually matched
Serial communication cable included
A Smarter Wireless Interface for Industrial Load Cell Systems
The MSI-7001HD TranSend wireless interface system is designed to replace traditional hard-wired conduits with a robust, wireless connection between your load cells and digital weight indicators. Whether you're monitoring heavy equipment, overhead weighing systems, or tank and livestock scales, TranSend ensures uninterrupted, high-integrity data transmission without the vulnerabilities of exposed cabling.
Each MSI-7001HD transmitter is paired with its specific receiver to ensure secure and accurate data flow. The unit transforms load cell signals into digital data and sends it wirelessly using direct sequence spread spectrum at 2.4 GHz, making it suitable for most industrial RF environments. This system is also compatible with a wide range of MSI indicators and third-party devices including MSI-8000, MSI-8000HD, PLCs, PCs, and more.
Encased in a milled aluminum enclosure rated IP68, it stands up to dust, moisture, and extreme weather conditions — making it ideal for both indoor and outdoor installations. The MSI-7001HD supports extended operation temperatures from -40 °F to 185 °F, and offers flexible antenna options and advanced communication protocols for even broader compatibility.
Advanced features like multi-channel expansion, relay contact outputs, audible alarms, and load cell failure compensation elevate the system to function as a smart junction box, ensuring continuity and reliability across weighing operations.
Technical Specifications
Feature
Details
Power Input
5–6 VDC, 7–36 VDC, 9–36 VDC, 85–265 VAC
Excitation Voltage
+4.8 VDC for 16 × 350 ohm or 32 × 700 ohm load cells
Eliminate cable limitations and experience next-generation load cell communication with the MSI-7001HD TranSend Wireless Interface System. Whether you're modernizing a crane scale system or upgrading a complex industrial network, this solution delivers reliability, accuracy, and flexibility.
Contact us now to discuss your application and get a custom quote for your wireless weighing setup.
