Low Headroom Design: Only 14.5 to 16.65 inches tall
Infrared Remote Control: Up to 25 feet operating range
LCD Display with Backlight: Clear visibility in any light
Alloy Steel Shackles: 6:1 safety factor ensures lifting integrity

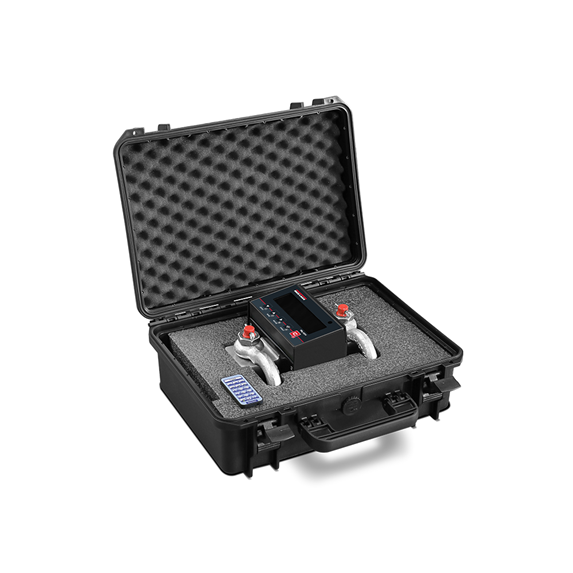

Compact Carrying Case: For protection and portability
Accuracy: ± 0.03% of capacity
Selectable Units: lb/kg/t
Power Efficient: Up to 40 hours battery life with AA batteries
High Overload Protection: 150% Safe / 500% Ultimate

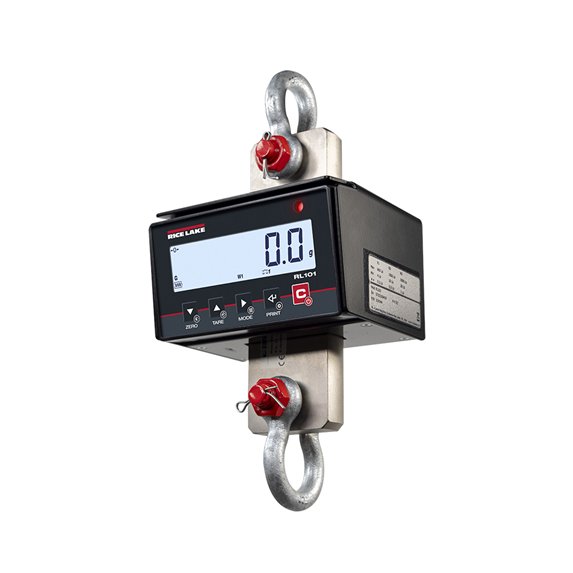

The RL101 Below-the-Hook (BTH) Digital Crane Scale is a reliable and compact solution for overhead weighing in tight spaces. Engineered for industrial use, this scale features a low headroom design to reduce lifting distance while maintaining high safety and performance standards.
Equipped with a vibrant backlit LCD and a 5-key waterproof keypad, the RL101 offers intuitive operation for zeroing, taring, mode changes, printing, and power control. An infrared remote control extends operability up to 25 ft, enhancing user convenience and safety during suspended weighing tasks.
The RL101's forged alloy shackles meet a 6:1 safety factor, while the device itself maintains a 500% ultimate overload threshold. The scale runs on four AA batteries, giving up to 40 hours of continuous use. Whether you're in fabrication, warehousing, or manufacturing, the RL101 is an excellent portable weighing solution that meets demanding operational requirements.
| Feature | Details |
|---|---|
| Capacities | 3,000 lb / 6,000 lb / 12,000 lb |
| Accuracy | ± 0.03% of capacity |
| Display | 1 in (25 mm) LCD with backlight |
| Control | Infrared remote (up to 25 ft) |
| Display Units | lb / kg / t selectable |
| Power | Four AA batteries (included) |
| Battery Life | Up to 40 hours |
| Auto-Off | Programmable (1-minute intervals or Off) |
| Annunciators | Net, Gross, Motion, Tare, Low Battery, etc. |
| Keypad | 5-key: Zero, Tare, Mode, Print, On/Off |
| Shackles | Forged alloy steel (6:1 safety factor) |
| Material & Rating | IP54 / Oven-fired painted steel |
| Overload Protection | 150% Safe / 500% Ultimate |
| Operating Temp | 14 °F to 104 °F (-10 °C to 40 °C) |
| Warranty | One-year limited |
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RL101 3K / 6K | 7.09 in | 3.15 in | 0.63 in / 0.87 in | 1.58 in / 2.17 in | 4.10 in | 9.67 in | 5.35 in |
