Fast Installation: Clamps quickly to the dead end of most common wire ropes
Overload Protection: Enables safety alerts and shutdowns based on weight thresholds
Rugged IP68 Design: Built from 4340 zinc-plated steel for demanding environments
Two Cable Ranges: Models for 3/8–1/2 in and 9/16–3/4 in wire ropes
Integrated Cable: 20 ft signal cable with color-coded blunt end termination
Compatible with MSI Devices: Use with SCT-2000 transmitter or MSI-8004 indicator
Custom Sizes Available: Designed to fit your application on request

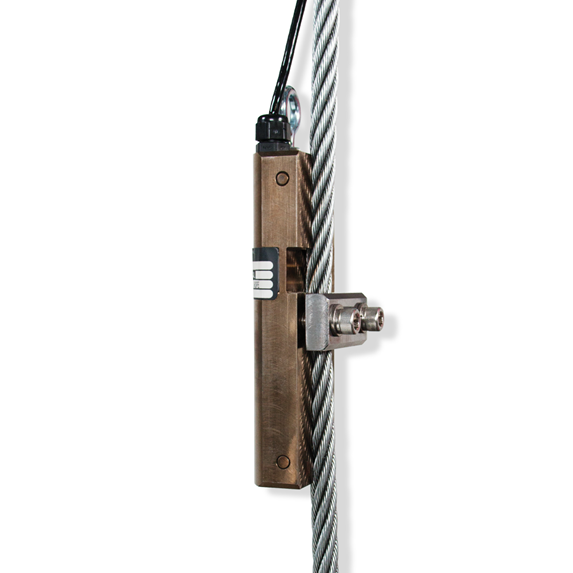

The MSI Clamp-On Load Cell offers a simple yet highly effective way to measure wire rope tension in overhead cranes and hoists. Designed for fast installation, this sensor clamps securely to the dead end of the wire rope and instantly begins transmitting load data.
Crafted from zinc-plated 4340 steel with an IP68 rating, it is rugged enough for outdoor or industrial environments where exposure to dust, water, or vibration is common. The sensor outputs a 350 ohm signal and connects to devices like the MSI-8004 remote LED indicator or the SCT-2000 transmitter, enabling real-time monitoring of load tension.

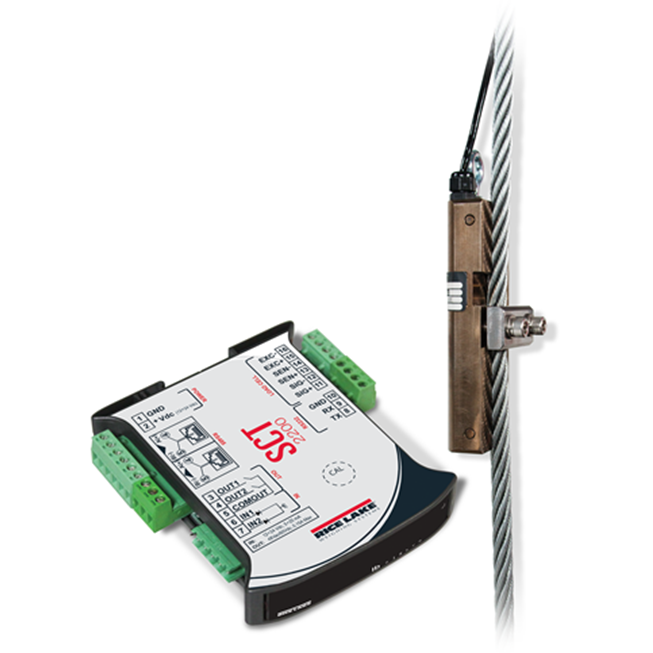

When integrated with the SCT-2000, the load cell allows for programmable weight-based setpoints that can activate operator alerts or automated safety shutoffs—critical for preventing dangerous overload conditions. Available in two envelope sizes to match popular wire rope diameters, this load cell provides a dependable, scalable safety solution for material handling systems.
| Feature | Details |
|---|---|
| Material | 4340 steel, zinc plated |
| Environmental Rating | IP68 |
| Output Resistance | 350 ohm |
| System Accuracy | 3 to 5% of calibrated capacity |
| Cable Length | 20 ft (6.1 m) integral cable |
| Cable Termination | Blunt end with color-coded wiring |
| Compatible Devices | MSI-8004 LED indicator, SCT-2000 transmitter |
| Custom Options | Available upon request |
| Applications | Overhead cranes, hoists, industrial rope systems |
| Warranty | One-year limited |
| Wire Color | Function |
|---|---|
| Red | + Excitation |
| Black | – Excitation |
| Green | + Signal |
| White | – Signal |

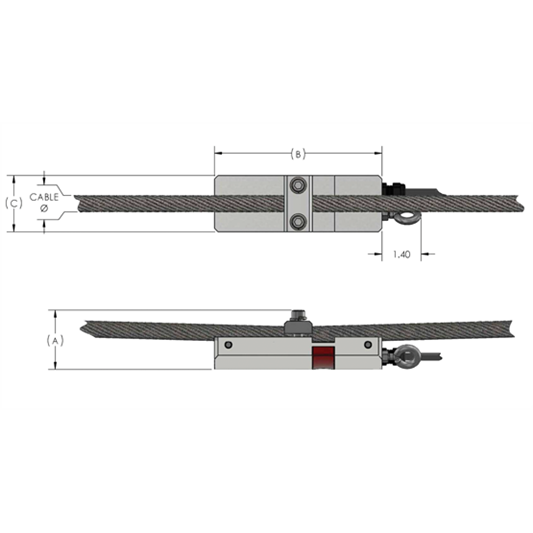

| Cable Range | Part Number | A | B | C |
|---|---|---|---|---|
| 3/8 – 1/2 in | 179080 | Cable + 1.70 in | 6.00 in | 2.00 in |
| 9/16 – 3/4 in | 179082 | Cable + 1.67 in | 6.00 in | 2.00 in |
Protect your crane systems from overloads and downtime with the MSI Clamp-On Load Cell—your reliable solution for wire rope tension monitoring.
Contact us now to request a quote or consult for a custom fit for your application.
