Key Highlights
-
Equipped with Compact Super Hybrid Sensor (SHS) technology for speed and accuracy
-
Vacuum Fluorescent Display (VFD) for clear, bright readouts
-
GLP/GMP/ISO compliant – outputs date, time, ID, serial, and calibration data to AD-8121 printer or PC
-
RS-232 interface for connectivity to computers or printers
-
Fast stabilization time of approximately 1 second
-
Multiple operating modes – weighing, counting, percentage, animal weighing, statistics, hold, comparator
-
Response indicator function for stable measurement control
-
Weighing chamber and underweigh hook for diverse applications
-
Optional upgrades: USB (FXi-02), LAN-Ethernet, built-in rechargeable battery
-
Five-year limited warranty

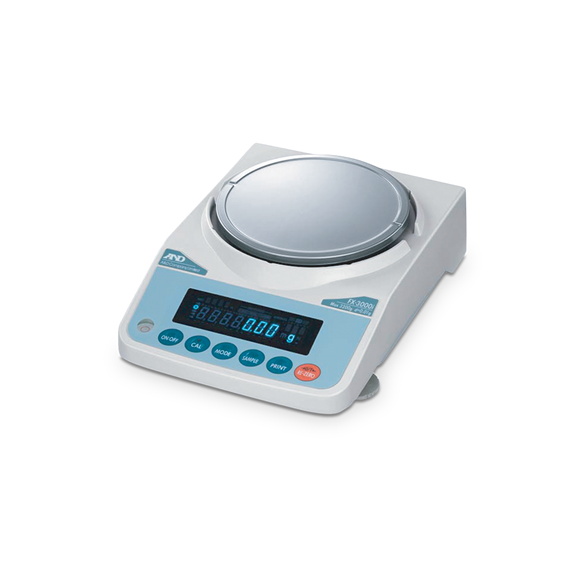

The A&D FX-i Series Precision Balance is engineered for high-speed, high-accuracy weighing across laboratory, research, and industrial environments. Featuring A&D’s Compact Super Hybrid Sensor (SHS), the FX-i Series delivers rapid stabilization within 1 second while maintaining precise repeatability.
With GLP/GMP/ISO compliance, the FX-i Series ensures traceable documentation by transmitting essential data such as calibration history, time, and ID numbers directly to printers or computers. Its Vacuum Fluorescent Display (VFD) provides excellent visibility, while the response indicator function ensures consistent, stable results.
The compact and lightweight design makes it suitable for space-limited setups, while connectivity options such as RS-232, USB, and LAN-Ethernet provide flexibility for modern labs. Whether used for counting, statistical analysis, animal weighing, or comparator functions, the FX-i Series is a reliable and versatile choice for precision applications.
Specifications
| Feature |
Details |
| Capacity Range |
122 g – 320 g (depending on model) |
| Readability |
0.001 g |
| Repeatability |
0.001 g |
| Linearity |
±0.002 g |
| Weighing Units |
Pound, carat, pennyweight, troy ounce, grain, pound/ounce |
| Operating Modes |
Weighing, counting, percent, animal, statistical, hold, comparator |
| Stabilization Time |
~1 second |
| Display Refresh Rate |
5, 10, or 20 times/second |
| Calibration Weights |
FX-120i: 100 g; FX-200i: 200 g; FX-300i: 300 g |
| Pan Size |
5.12 in (130 mm) |
| Dimensions |
7.6 × 10.3 × 3.3 in (193 × 263 × 85 mm) |
| Approx. Weight |
8 lb (3.5 kg) |
| Operating Temperature |
41 °F to 104 °F (5 °C to 40 °C) |
| Humidity |
85% RH max, non-condensing |
| Warranty |
Five-year limited |
Model Variants
| Model |
Capacity |
Readability |
Repeatability |
Linearity |
Pan Size |
Dimensions |
Part # |
| FX-120i |
122 g |
0.001 g |
0.001 g |
±0.002 g |
5.12 in (130 mm) |
7.6 × 10.3 × 3.3 in (193 × 263 × 85 mm) |
98021 |
| FX-200i |
220 g |
0.001 g |
0.001 g |
±0.002 g |
5.12 in (130 mm) |
7.6 × 10.3 × 3.3 in (193 × 263 × 85 mm) |
98022 |
| FX-300i |
320 g |
0.001 g |
0.001 g |
±0.002 g |
5.12 in (130 mm) |
7.6 × 10.3 × 3.3 in (193 × 263 × 85 mm) |
98023 |
The A&D FX-i Series Precision Balance combines speed, accuracy, and reliability in a compact design. With advanced SHS technology, flexible connectivity, and multiple weighing functions, it’s ideal for laboratories, research facilities, and industrial environments.
Order now today and upgrade your precision weighing with the FX-i Series.
