Complete kit with Rice Lake 380 Synergy Series digital indicator
Capacities available: 2,500 lb, 5,000 lb, and 10,000 lb
12 ft indicator cable with quick disconnect
3 ft ArmorGuard cable included
Factory calibrated for reliable livestock weighing
Non-Legal for Trade
Operates on 4 C-cell batteries (not included)
IP66 stainless steel enclosure for harsh environments
Ideal for weighing hogs, cattle, sheep, and general farm use
The Rice Lake Farm Bars with 380 Indicator provide a durable, mobile, and highly accurate weighing solution for livestock in agricultural settings. Designed for tough conditions, this system is ideal for weighing hogs, cattle, goats, and other livestock quickly and reliably.
The kit includes two high-strength farm bars, available in capacities from 2,500 lb to 10,000 lb, and a Rice Lake 380 Synergy Series indicator, housed in a stainless steel IP66 enclosure. With factory calibration, the system delivers consistent and accurate weight readings right out of the box.
The farm bars are hardwired together with an 8 ft cable, while the 12 ft indicator cable with quick disconnect allows flexible positioning in your operation. The 3 ft ArmorGuard cable protects against damage and adds long-term durability.
Simple to set up and easy to move between sites, this non-legal-for-trade weighing system is ideal for barns, feedlots, auctions, and mobile animal care applications.
| Feature | Specification |
|---|---|
| Capacities | 2,500 lb, 5,000 lb, 10,000 lb |
| Safe Overload | 150% of rated capacity |
| Full Scale Output | 3 mV/V nominal |
| Max Excitation | 15 VDC |
| Nonlinearity | 0.02% full scale |
| Hysteresis | 0.02% full scale |
| Bridge Resistance | 350 ohm |
| Temperature Range | -40 °F to 111 °F (-40 °C to 44 °C) |
| Cable (Between Bars) | 8 ft, hard-wired |
| Cable (Indicator) | 12 ft, with quick disconnect |
| ArmorGuard Cable | 3 ft (included) |
| Warranty | Two-year limited |
| Feature | Specification |
|---|---|
| Power Supply | 4 C-cell alkaline batteries (not included) |
| Optional Power | 115/230 VAC to 12 VDC adapter |
| Battery Life | 100 hours (1× 350 ohm load cell, no backlight) |
| Display | 6-digit LCD, 1 in (25 mm) digit height |
| Keys | 5 tactile buttons |
| Enclosure Rating | IP66, stainless steel |
| Communication Ports | RS-232 (3-wire), USB 2.0 |
| Annunciators | g, lb, t, tn, kg, oz, battery, PT, LT, gross, net, zero |
| Certifications | NTEP 21-051, MC AM-6184, CE, cULus |

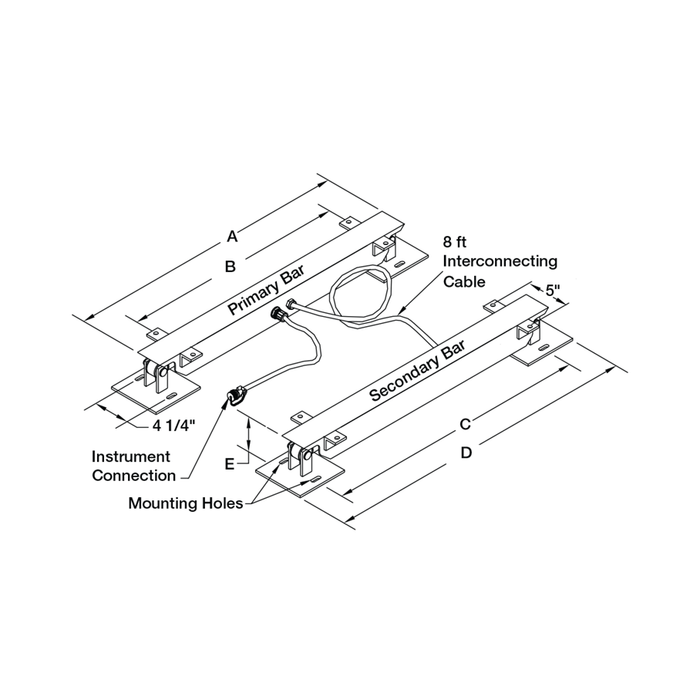

| A (in) | B* (in) | C (in) | D* (in) | E (in) |
|---|---|---|---|---|
| 22.00 | 15.00 | 19.75 | 25.75 | 4.00 |
| A (in) | B* (in) | C (in) | D* (in) | E (in) |
|---|---|---|---|---|
| 26.00 | 19.00 | 23.75 | 29.75 | 4.00 |
| 33.00 | 26.00 | 30.75 | 36.75 | 4.00 |
| 36.00 | 29.00 | 33.75 | 39.75 | 4.00 |
| 40.00 | 33.00 | 37.75 | 43.75 | 4.00 |
| 44.00 | 37.00 | 41.75 | 47.75 | 4.00 |
| 48.00 | 41.00 | 45.75 | 51.75 | 4.00 |
| A (in) | B* (in) | C (in) | D* (in) | E (in) |
|---|---|---|---|---|
| 32.00 | 25.00 | 29.75 | 35.75 | 4.00 |
| 36.00 | 29.00 | 33.75 | 39.75 | 4.00 |
| 48.00 | 41.00 | 45.75 | 51.75 | 4.00 |
| 60.00 | 53.00 | 57.75 | 63.75 | 4.00 |
| 72.00 | 65.00 | 69.75 | 75.75 | 4.00 |
*Note: B = A – 7 inches, D = C + 6 inches
From cattle to hogs and beyond, trust the Rice Lake Farm Bars with 380 Indicator to bring portability and precision to your livestock operation. With factory calibration, rugged construction, and a user-friendly display, you get the accuracy you need without the complexity. Whether you manage a farm, auction, or veterinary site, this kit delivers the reliability and simplicity essential for animal weighing. Request your quote today and upgrade your weighing solution.
