Tired of the guesswork in managing the health and weight of your livestock?

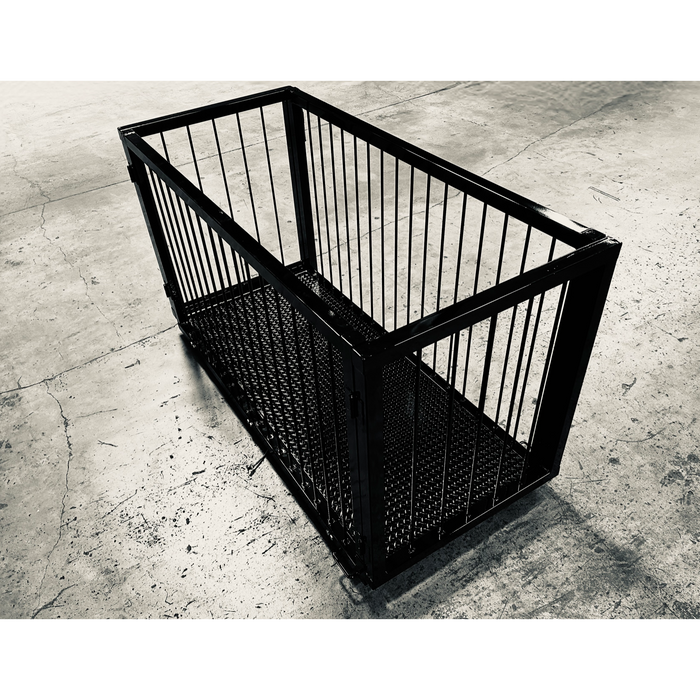

The SellEton SL-930-6'x30"-USA Livestock Cage System is the premium solution designed to eliminate uncertainty and streamline the monitoring of larger animals. With its robust 6' x 30" platform, this scale accommodates more giant animals with ease, allowing for stress-free weigh-ins. Crafted for the demands of agriculture and livestock applications, this USA-made system ensures precision and reliability in every measurement.
Key Benefits:
-
Accurate Weighing: This product features four IP67 alloy steel load cells for precise weight measurements, which are essential for health monitoring and medicinal dosing.
-
Durable Construction: Built with a rugged diamond deck safety treadplate or an optional smooth stainless steel deck, both ensuring longevity and durability in demanding agricultural environments.
-
Easy Access: Dual gates and a low-profile design facilitate easy entry and exit, reducing stress for animals and handlers.
-
Convenient Features: It includes a Peak Hold indicator to capture the weights of moving animals and a 20-foot heavy-duty metal shielded cable for flexible setup.
-
Optimal Design: Adjustable ball and cup leveling feet and top access to these components make installation and maintenance straightforward.
-
Health and Safety Focus: Designed to be easy to clean and maintain, promoting better hygiene and animal health.
-
Protection Assured: Overload protection prevents scale damage, ensuring a long-lasting investment.
-
Reliable Power: It comes with an SL-7510-SS-C Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.
-
NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
-
Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
-
Power Options: Includes an AC adapter; optional battery available.
-
Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
-
Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
-
Alarms: Features overload/underload alarms and an automatic error warning alarm.
-
Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
-
Connectivity: Capable of connecting to a remote display and multiple printers.
-
Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
-
Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
-
Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
-
Display: LCD or LED, 1-inch with a 6-digit numeric readout.
-
Units: lb, kg (primary), oz, g (LCD only).
-
Accuracy: Class III, 5,000 e.
-
Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
-
Excitation Voltage: 5V DC.
-
Output Current: Max 120 mA.
-
Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
-
Display Resolution: 30,000; ADC: 2,000,000.
-
Zero Stability Error: TKspn < ± 6 ppm/K.
-
Sensitivity: Internal 0.3 μV/d.
-
Input Voltage: -30 to +30mV DC.
-
Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
-
Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
-
Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
-
Display Increment: Selectable 1, 2, 5, 10, 20, 50.
-
Decimal Point: Selectable 0, 1, 2, 3, 4.
-
Conversion Rate: 12 samples/second typical.
-
Analog Signal Input Range: 1mV / V to 3mV/V.
-
Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
-
Measurement Rate: 0~15mV.
-
Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for the SL-930 Livestock Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
-
Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-
Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.
-
Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.
-
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.
-
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
-
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication
By integrating the SellEton SL-930 into your agricultural operations, you'll ensure the well-being of your animals and enhance the efficiency and accuracy of your farming practices. Imagine the peace of mind knowing that your livestock are healthy, thriving, and being cared for with the most reliable technology in agriculture scales. Invest in the SellEton SL-930-6'x30"-USA Livestock Cage System and feel confident in your ability to monitor and manage the health of your livestock effectively, leading to happier, healthier animals and a more productive agricultural business.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
