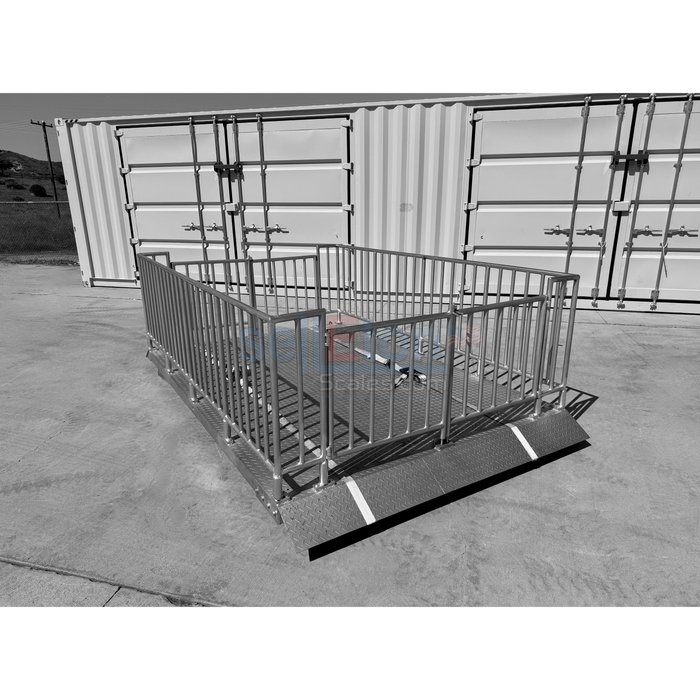

The SL-930-10’x7’ Cage System Portable Livestock Animal Weighing Scale is your solution to this common agricultural challenge. Designed specifically for the dynamic needs of modern farms, this scale ensures precise measurements and secure handling of animals ranging from sheep and goats to bulls and cows.
Key Benefits:
-
Spacious Platform: It measures 10’ x 7’ (120” x 84”) and provides ample space for various animal sizes.
-
High Capacity and Accuracy: Handling up to 10,000 lbs with precision up to 1 lb, ensuring accurate readings every time.
-
Mobility and Convenience: It features swivel casters and a hand wrench for easy mobility and setup. The casters can be removed for stationary use.
-
Safety Features: Two casters have a braking feature that stabilizes the scale during the weighing process, enhancing safety for operators and animals.
-
Durable Construction: The diamond plate surface increases stability and durability, ideal for the agricultural environment.
-
Advanced Indicator: Equipped with a NEMA 4X/IP67 watertight stainless steel LCD indicator, built-in RS232 communication port, and pre-programmed fast capture weighing functions to streamline your operations.
-
Additional Features: It offers an accumulation mode to totalize weights and factory calibration with overload protection to ensure long-term reliability.
-
Reliable Power: It comes with an SL-7510-SS-C Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.
-
NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
-
Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
-
Power Options: Includes an AC adapter; optional battery available.
-
Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
-
Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
-
Alarms: Features overload/underload alarms and an automatic error warning alarm.
-
Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
-
Connectivity: Capable of connecting to a remote display and multiple printers.
-
Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
-
Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
-
Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
-
Display: LCD or LED, 1-inch with a 6-digit numeric readout.
-
Units: lb, kg (primary), oz, g (LCD only).
-
Accuracy: Class III, 5,000 e.
-
Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
-
Excitation Voltage: 5V DC.
-
Output Current: Max 120 mA.
-
Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
-
Display Resolution: 30,000; ADC: 2,000,000.
-
Zero Stability Error: TKspn < ± 6 ppm/K.
-
Sensitivity: Internal 0.3 μV/d.
-
Input Voltage: -30 to +30mV DC.
-
Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
-
Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
-
Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
-
Display Increment: Selectable 1, 2, 5, 10, 20, 50.
-
Decimal Point: Selectable 0, 1, 2, 3, 4.
-
Conversion Rate: 12 samples/second typical.
-
Analog Signal Input Range: 1mV / V to 3mV/V.
-
Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
-
Measurement Rate: 0~15mV.
-
Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for the SL-930-10’x7’ Livestock Weighing
Enhance your operations with a range of add-on features designed to meet your specific needs:
-
Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-
Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.
-
Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.
-
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.
-
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
-
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication
Invest in the SL-930-10’x7’ scale and experience the peace of mind that comes from knowing your efficient and precise livestock management. Feel empowered as you enhance your farm’s productivity and profitability with this essential, premium scale tailored for agriculture and livestock.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
