Are you struggling with accuracy in harsh, wet environments or needing precise measurements for sensitive processes?

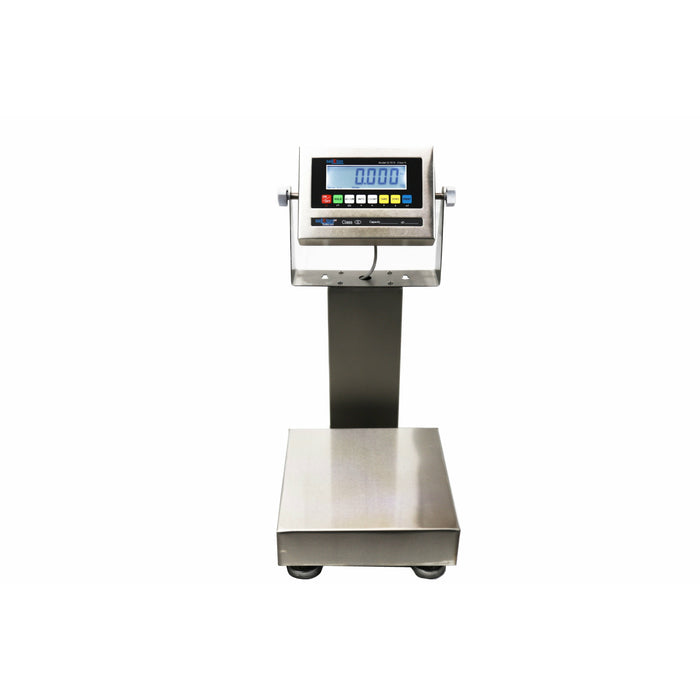

The SL-915SS-HP NTEP Stainless Steel Tabletop High Precision Bench Scale is your ultimate solution. Designed for environments where cleanliness and accuracy are paramount, this scale ensures flawless performance under the most demanding conditions.

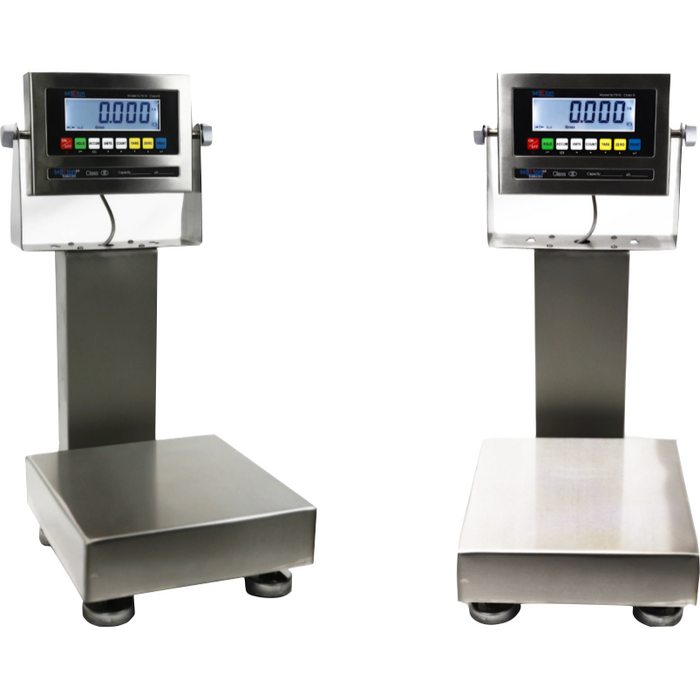

Available Models and Capacities:
-
SL-915SS-HP-6: 10”x10” Capacity: 6lb x 0.0002lb (3kg x 0.1g)
-
SL-915SS-HP-15: 10”x10” Capacity: 15lb x 0.0005lb (7.5kg x 0.2g)
-
SL-915SS-HP-30: 10”x10” Capacity: 30lb x 0.001lb (15kg x 0.5g)
-
SL-915SS-HP-60: 10”x10” Capacity: 60lb x 0.002lb (30kg x 1g)
Key Benefits:
-

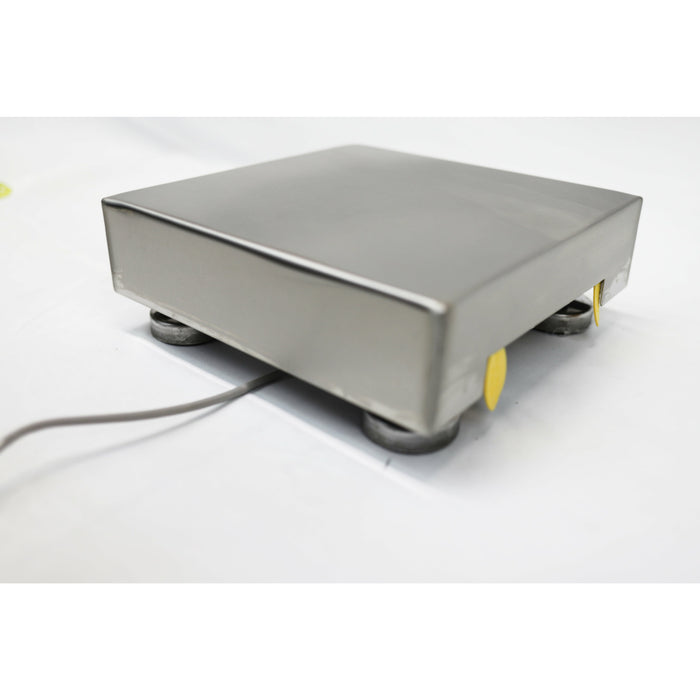

Robust Stainless Steel Construction: The scale and indicator are crafted from stainless steel, designed for easy cleaning and enduring the rigors of daily washdowns.

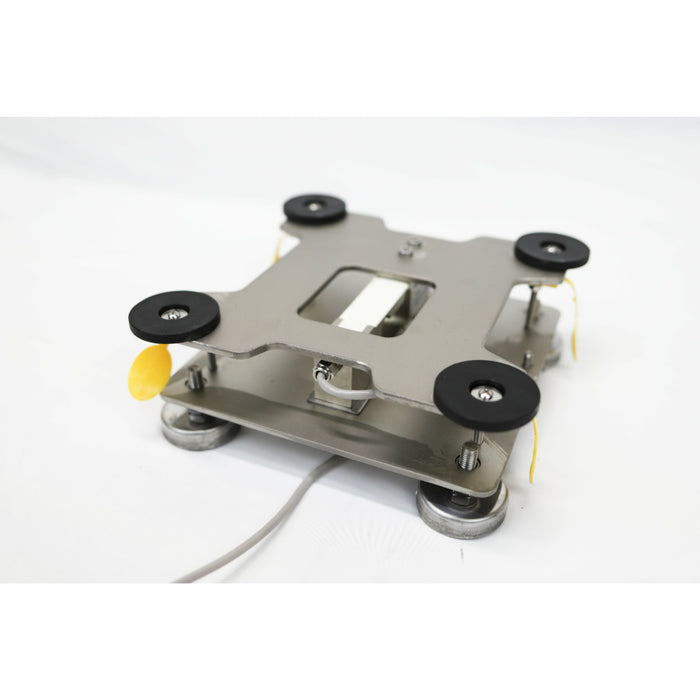

- High Precision Measurements: Features a high-accuracy single point strain gauge aluminum load cell, making it perfect for critical weighing tasks in food processing and other sensitive industries.
-
Versatile and Legal for Trade: Meets NTEP Class III standards with 5000 divisions and includes a legal for-trade indicator, making it ideal for commercial applications where precision is crucial.
-
Durable and Safe Design: It is built with a heavy-duty platform and rugged stainless steel enclosure, offering longevity and overload protection, ensuring stability and reliability in industrial settings.
-
Comprehensive Package: It comes complete with a platform, shroud, indicator, load cells, column, level feet, and all necessary hardware for immediate setup.
-

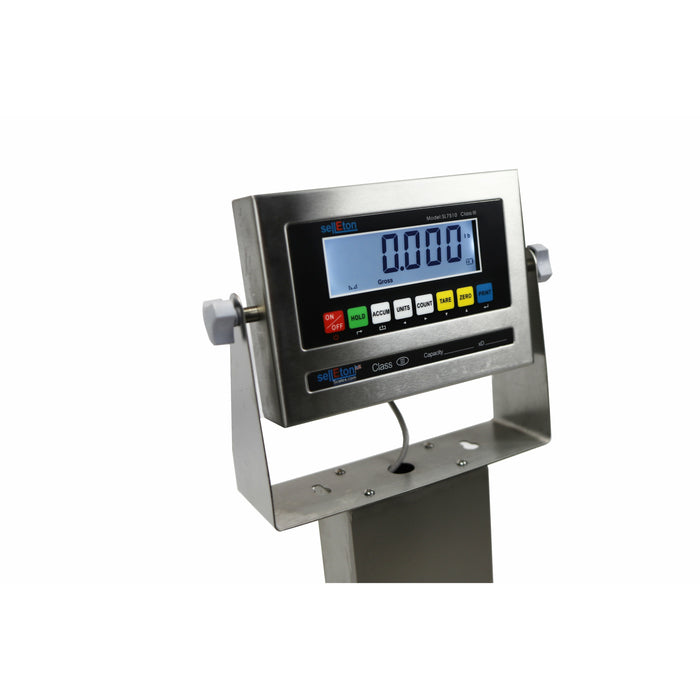

Reliable Power: It comes with an SL-7510-SS-C Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.
-
NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
-
Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
-
Power Options: Includes an AC adapter; optional battery available.
-
Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
-
Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
-
Alarms: Features overload/underload alarms and an automatic error warning alarm.
-
Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
-
Connectivity: Capable of connecting to a remote display and multiple printers.
-
Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
-
Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
-
Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
-
Display: LCD or LED, 1-inch with a 6-digit numeric readout.
-
Units: lb, kg (primary), oz, g (LCD only).
-
Accuracy: Class III, 5,000 e.
-
Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
-
Excitation Voltage: 5V DC.
-
Output Current: Max 120 mA.
-
Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
-
Display Resolution: 30,000; ADC: 2,000,000.
-
Zero Stability Error: TKspn < ± 6 ppm/K.
-
Sensitivity: Internal 0.3 μV/d.
-
Input Voltage: -30 to +30mV DC.
-
Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
-
Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
-
Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
-
Display Increment: Selectable 1, 2, 5, 10, 20, 50.
-
Decimal Point: Selectable 0, 1, 2, 3, 4.
-
Conversion Rate: 12 samples/second typical.
-
Analog Signal Input Range: 1mV / V to 3mV/V.
-
Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
-
Measurement Rate: 0~15mV.
-
Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for the SL-915-Bench Scale with Free Software
Enhance your operations with a range of add-on features designed to meet your specific needs:
-
Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-
Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.
Choosing the SL-915SS-HP means opting for peace of mind in your weighing operations. Imagine the confidence you’ll gain knowing every measurement contributes accurately to your business’s success, from portion control in food processing to ensuring compliance in commercial transactions. Enhance your operational efficiency with this reliable, high-performance industrial floor scale and feel secure in the quality and consistency of your products.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
