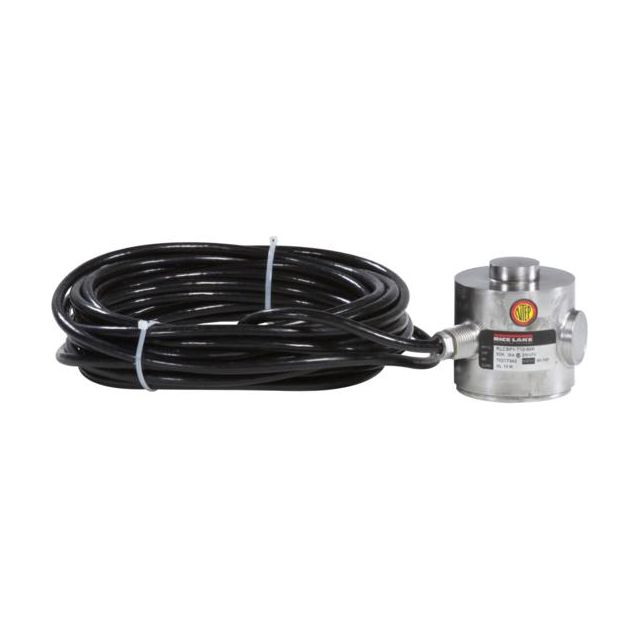

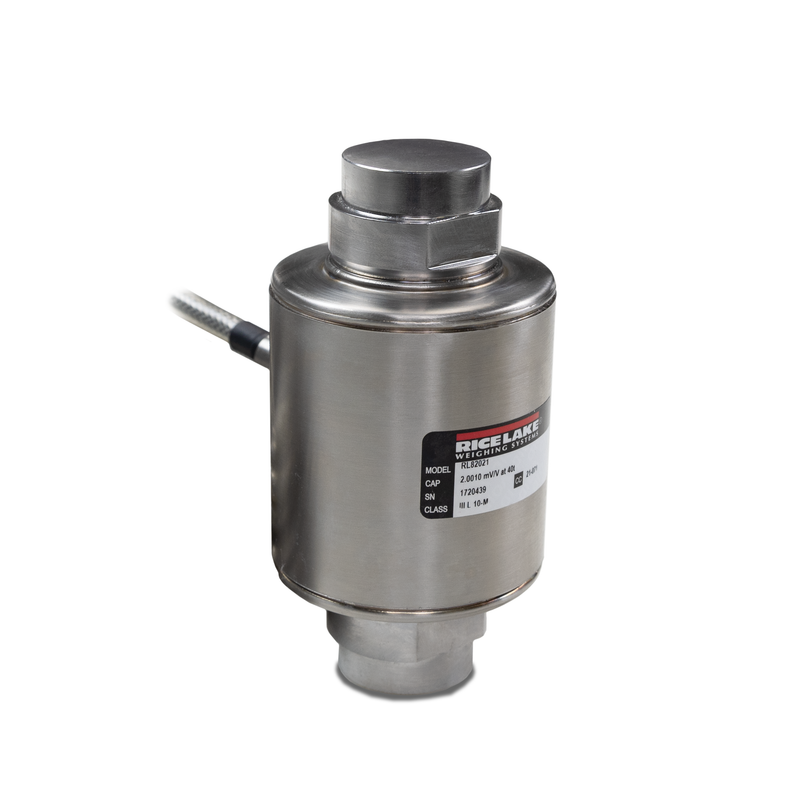

Rice Lake RL82021 Stainless Steel Rocker Column Load Cell

Original price $799.00 - Original price $799.00
Original price $799.00
$839.00
$839.00 - $839.00
Current price $839.00

Downloads

Key Features:

  • Hermetically Sealed – Ensures long-lasting performance in harsh environments with an IP69K-rated seal.
  • Stainless Steel Construction – Corrosion-resistant material for maximum durability.
  • Built-in Lightning Protection – Provides enhanced safety and longevity.
  • High Capacity Options – Available in 30t and 40t capacities to suit various industrial applications.
  • Precision Performance – Combined error of just 0.013% full scale and non-repeatability of 0.01% full scale.
  • Reliable Connectivity – Equipped with an 18m stainless overbraid cable for durability and signal integrity.
  • NTEP Certified – Meets stringent standards for legal-for-trade applications.
  • Two-Year Limited Warranty – Ensures peace of mind with every purchase.


RL82021 Load Cell Specifications

Specification
Value
Full Scale Output
2.0 mV/V
Output Resistance
1,005 (±5) ohm
Input Resistance
1,150 (±50) ohm
Material/Finish
Stainless steel
Temperature (Compensated)
14 °F to 104 °F (-10 °C to 40 °C)
Temperature (Operating)
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type
Hermetically sealed, IP69K
Safe Overload
120% full scale
Rated Excitation
5 to 10 VDC
Combined Error
0.013% full scale
Non-repeatability
0.01% full scale
Insulation Resistance
5,000 megohm
Deflection at Capacity
0.621 mm
Cable Length
18 m stainless overbraid cable
Warranty
Two-year limited
Approvals
NTEP Certified

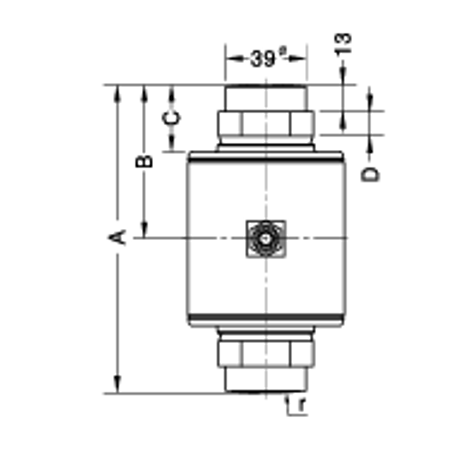

RL82021 Load Cell Dimensions

Rated Capacity (lb) A (in) B (in) D (in) F (in) G (in) H (Thread Size) L-Depth (in)
25,000 - 50,000 3.00 3.25 6.00 0.40 1.25 1/2-20 UNF 0.31
100,000 4.00 5.00 6.00 0.51 2.31 3/4-16 UNF 0.56
200,000 6.00 7.25 17.00 1.04 3.13 3/4-16 UNF 0.75

The Rice Lake RL82021 Stainless Steel Rocker Column Load Cell is designed for industrial precision and durability. Whether you're upgrading an existing system or building a new one, this load cell delivers accurate, reliable performance. Contact our team today to request pricing and confirm availability.
