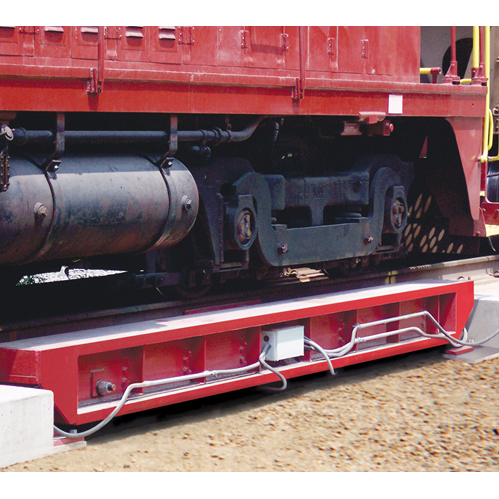

SURVIVOR® PL Low Profile Rail Scale

Key Highlights

• Low-profile modular rail scale – no pit required

• Equipped with 100,000 lb capacity compression load cells

• Full scale capacity up to 350,000 lb, NTEP and Measurement Canada certified

• Platform sizes available in 12 ft 6 in, 15 ft, 18 ft, and 25 ft

• Profile height: 18.5 in (top of pier to base of rail) and 24.5 in (top of pier to top of rail)

• 7 ft 8 in wide platform with 1/4 in bolted steel checkered deck

• Built-in surge protection kit and internal conduit runs

• Supports 115 lb and 132 lb rail (other rail types optional)

• Fully compliant with AAR, AREMA, NIST, and Cooper E-80 specifications

• Configurable for single, double, or multiple draft weighing setups

• Manufactured with more steel content than most competing models for longer service life

The Rice Lake SURVIVOR® PL Low Profile Rail Scale is a rugged and reliable Legal for Trade solution for railcar weighing that eliminates the need for a pit, significantly reducing construction costs and long-term maintenance. Built with heavy-duty compression load cells, internal conduit runs, and a bolted steel checkered top plate, this scale is engineered to provide accurate, durable, and safe rail weighing in even the most demanding industrial environments.

With standard platform sizes ranging from 12 ft 6 in to 25 ft and a profile height of just 18.5 to 24.5 inches, the SURVIVOR PL offers a modular design that makes installation fast and efficient. Whether you're weighing full cars, partial trucks, or using it in double-draft mode, the system can be customized to suit virtually any application.

The scale supports multiple draft configurations—including single, single/single, single/double, double, and double/double—making it adaptable to various car sizes and traffic volumes. With an unmatched combination of steel content, structural performance, and flexibility, the SURVIVOR PL stands alone as the industry’s most advanced low-profile rail scale.

Specifications

Optional Features

• Custom platform sizes and configurations

• Flush deck installation design

• Concrete or steel approaches

• T-beam or rail plate approach hardware

• Intermediate section hardware

If you're looking for a pit-free, modular rail scale that delivers exceptional performance and long-term durability, the SURVIVOR® PL Low Profile Rail Scale is the solution. Designed to weigh railcars in single or double-draft configurations, this system offers unmatched flexibility and compliance with industry standards.

Contact SellEton Scales today to request a quote or speak with a specialist about customizing a SURVIVOR PL system for your rail weighing application.
