Rugged mild steel frame with 304 stainless steel cover
Ideal for heavy-duty, high-capacity industrial weighing applications
NTEP Certified, IP67 aluminum environmentally sealed load cell
Five-point overload protection ensures durability and long life
Polyurethane rubber leveling feet with stainless steel stems
Available in 30 × 30 in and 36 × 36 in sizes (custom options available)
Designed to withstand frequent heavy loads in harsh environments
The BenchMark® HD Heavy-Duty Bench Scale is built to perform in demanding industrial environments where strength, stability, and accuracy are critical. Designed with a rugged powder-coated mild steel frame and a 304 stainless steel cover, this scale stands up to heavy use and provides long-lasting durability.
Equipped with an environmentally sealed, IP67-rated aluminum load cell, the BenchMark HD offers accurate results even in less-than-ideal conditions. Whether you're operating in shipping, manufacturing, or warehousing, this bench scale handles tough tasks with ease.
Standard sizes of 30 × 30 inches and 36 × 36 inches cover most industrial needs, and custom sizes and capacities are available for more specific applications.
| Feature | Specification |
|---|---|
| Load Cell Output | IP67 aluminum, environmentally sealed |
| Output Impedance | 350 ohm |
| Maximum Overload | 200% |
| Overload Protection | Five-point, independently adjusted |
| Frame Material | Mild steel, powder coated black |
| Cover Material | AISI304L stainless steel, Ra = 45 ± 10 |
| Leveling Feet | Polyurethane rubber with stainless steel stems |
| Cable Length | 10 ft (3 m) |
| Temperature Compensated | 14 °F to 104 °F (-10 °C to 40 °C) |
| Warranty | Two-year limited |
| Approvals | NTEP 06-010, Class III 5,000 d Measurement Canada AM-5625 Load cell is cFMus approved |

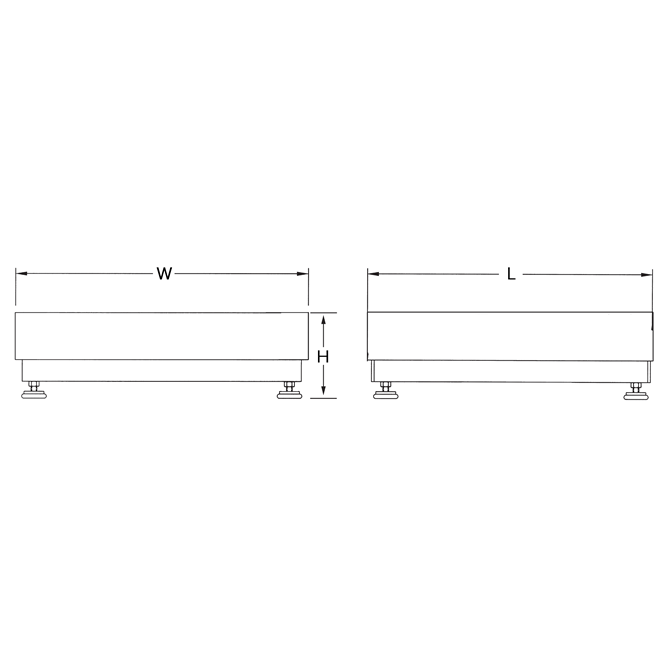

| Platform Size | Height (H) | Width (W) | Length (L) |
|---|---|---|---|
| 30 × 30 in | 8.75 in | 30.00 in | 30.00 in |
| 36 × 36 in | 8.75 in | 36.00 in | 36.00 in |
Note: 1 inch = 25.4 mm
Need a heavy-duty solution for your toughest weighing challenges? The BenchMark HD Bench Scale delivers dependable performance and rugged construction. Contact us now to request a quote or configure a custom solution!
