Includes two scale platforms with anchor brackets and four on/off ramps
Axle capacity up to 60,000 lb using tandem 30,000 lb platforms
Built-in IP67-rated 20,000 lb shear beam load cells (4 per platform)
Treaded steel top plate with top-access foot adjustment holes
Equipped with JB4SS TuffSeal® signal trim junction box
Carbon steel captured ball feet for enhanced stability
Comes with 20 ft SURVIVOR® EL147HE cable
Portable and rugged—perfect for temporary or mobile installations
Non-Legal for Trade axle weighing solution
Easy installation with included lifting eye bolts (anchor bolts not included)

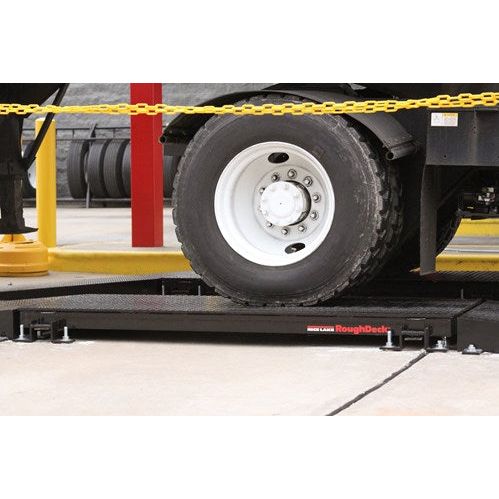

The Rice Lake RoughDeck® AX Axle Scale offers a portable, affordable, and rugged solution for temporary or on-site axle weighing applications. Designed with the same tough construction standards as the rest of Rice Lake's RoughDeck series, this axle scale provides dependable axle weight measurements in virtually any location.

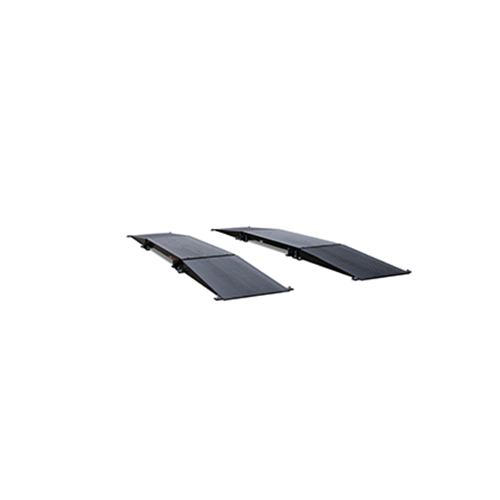

The complete system includes two low-profile scale platforms and four on/off treaded steel ramps, making it ideal for quick deployments at construction sites, shipping yards, or remote vehicle check stations. Each scale platform houses four 20,000 lb IP67-rated single-ended shear beam load cells, offering a total axle capacity of 60,000 lb across tandem platforms.
With features like top-access foot adjustment, side-access junction box, carbon steel captured ball feet, and factory-installed eye bolts, installation is fast and hassle-free. The RoughDeck AX system also includes the TuffSeal® JB4SS signal trim junction box and SURVIVOR EL147HE cable, ensuring long-term protection in tough outdoor environments.
This system is not Legal for Trade but provides critical axle weight monitoring to help prevent overloading, reduce risk of fines, and maintain vehicle safety.
| Feature | Specification |
|---|---|
| Platform Dimensions | 84 in L × 32 in W × 6 in H |
| Ramp Dimensions | 60 in L × 32 in W × 6 in H |
| Axle Capacity (Tandem) | 60,000 lb (30,000 lb per platform) |
| Load Cells per Platform | Four 20,000 lb single-ended shear beam load cells (IP67-rated) |
| Top Plate | Treaded steel with top-access foot adjustment holes |
| Junction Box | JB4SS TuffSeal® signal trim junction box |
| Cabling | 20 ft SURVIVOR® EL147HE cable |
| Feet | Carbon steel captured ball feet |
| Installation | Includes ¾-10 NC eye bolts for lifting (anchor bolts not included) |
| End Load Capacity | 133% full scale at 30,000 lb |
| Warranty | Load cells: 2 years; All other components: 1 year limited |
| Legal for Trade | No |

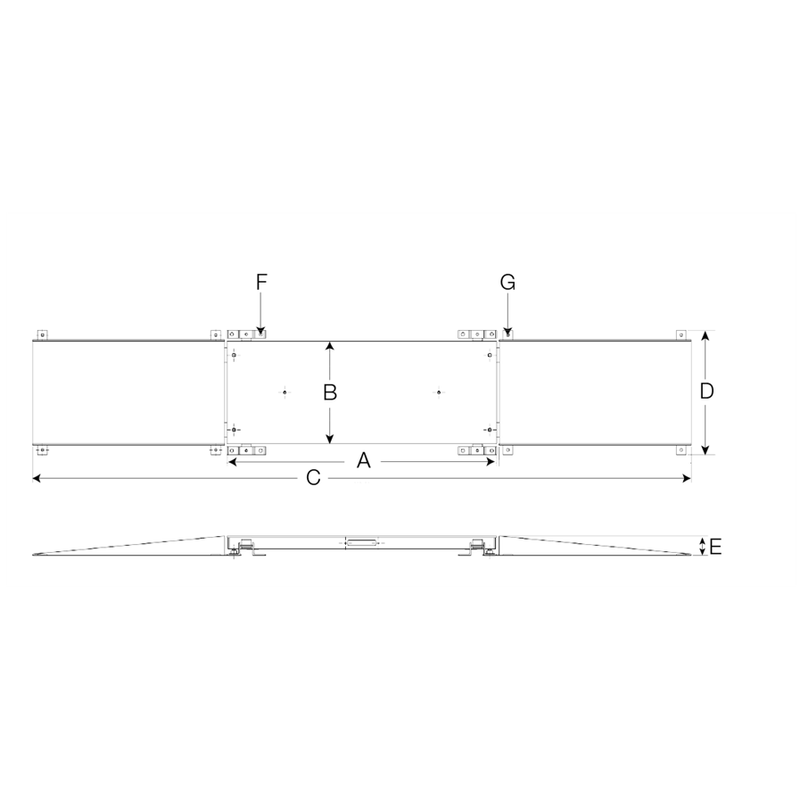

| Reference | Dimension |
|---|---|
| A | 84.00 in |
| B | 32.00 in |
| C | 205.50 in |
| D | 38.75 in |
| E | 6.00 in |
| F | 1.00 in |
| G | 0.75 in |
If your operation demands a rugged, mobile axle weighing system, the RoughDeck® AX Axle Scale delivers unmatched value and reliability. Built to handle the harshest site conditions and frequent relocations, this system is ideal for ensuring accurate axle weight readings and preventing costly overload penalties.
Contact SellEton Scales today to request a quote or learn more about integrating the RoughDeck AX into your fleet management or industrial weighing operation.
