Rugged double steel deck construction for enhanced durability
Available in 7.5 ft, 9.5 ft, and 11.5 ft lengths
50,000 lb axle capacity – ideal for portable, seasonal, or onsite weighing
Four IP67-rated, 20,000 lb single-ended load cells per platform
JB4SS TuffSeal® signal trim junction box with top access
Carbon steel captured ball feet with top access foot adjustment holes
20 ft SURVIVOR® EL147HE cable included

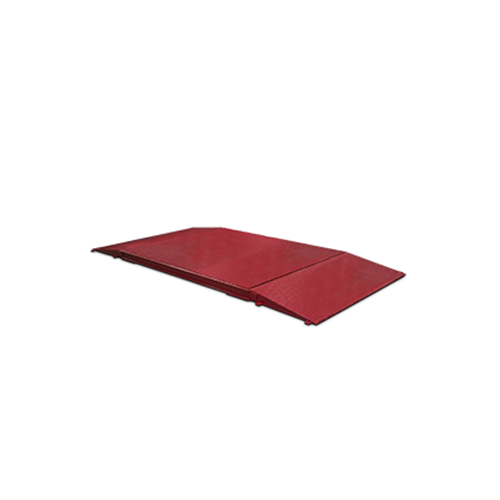

Optional ramps and scale frame available
Non-Legal for Trade
Built Tough for Portable Axle Weighing

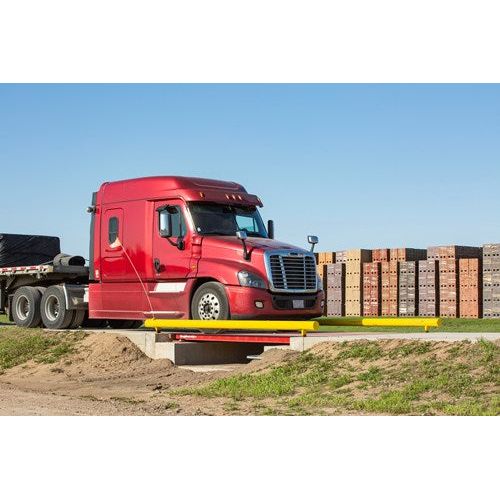

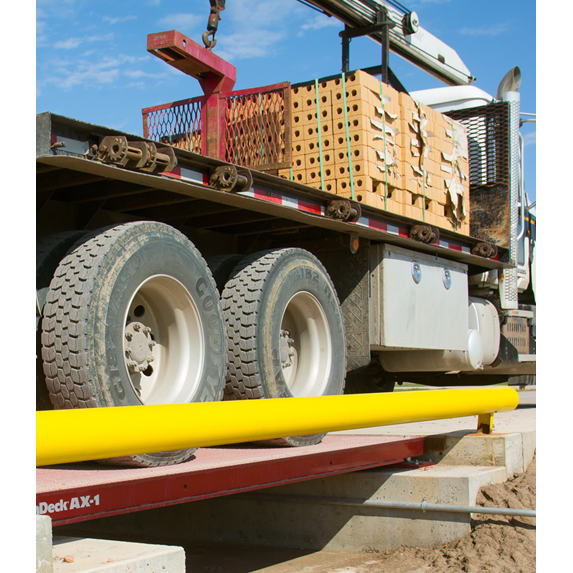

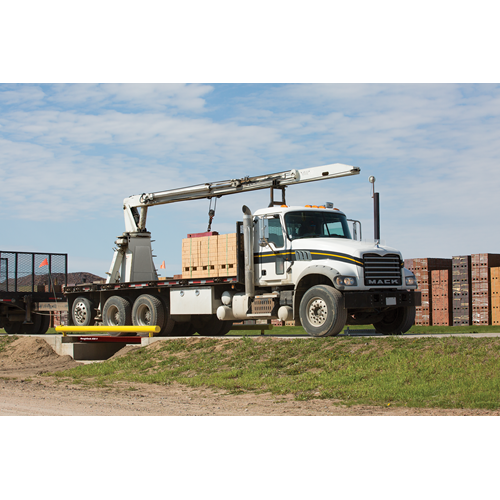

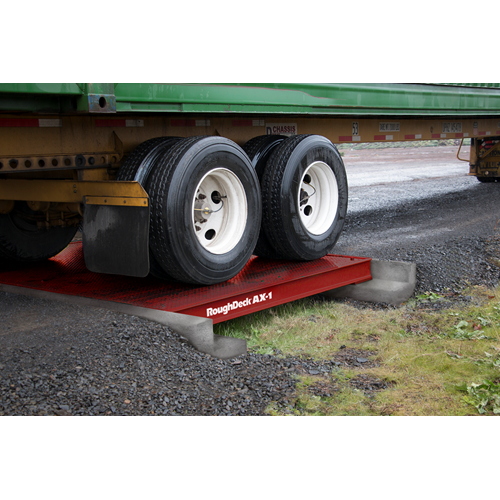

The RoughDeck® AX-1 Axle Scale by Rice Lake is designed for operations that demand rugged, on-the-go vehicle weighing. With a 50,000 lb capacity, this axle scale is equipped with double steel deck construction that resists flexing, ensuring longevity and consistent performance.
Engineered for Strength and Safety

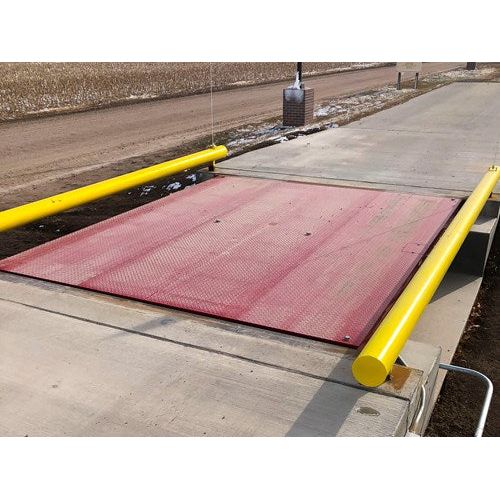

Its unique top and bottom steel plate structure delivers enhanced rigidity and weighing precision. The diamond tread surface provides traction for safe vehicle entry/exit, while the wide one-piece platform simplifies alignment during weighing.
Customizable and Portable
The AX-1 is perfect for seasonal or temporary weighing applications. It is easy to deploy and remove as needed. Available in three standard lengths (7.5 ft, 9.5 ft, 11.5 ft) with optional ramps and frame system for stability and easy relocation, this scale adapts to your unique requirements.
Reliable Performance Anywhere
Whether used on a farm, construction site, or industrial location, the RoughDeck AX-1 ensures accuracy with top-access foot adjustment holes, sealed load cells, and a TuffSeal® junction box. The included SURVIVOR® EL147HE cable ensures reliable data transmission.
| Feature | Details |
|---|---|
| Axle Capacity | 50,000 lb |
| Load Cells | Four single-ended, IP67, 20,000 lb |
| Deck Type | Treaded, double steel deck |
| Junction Box | JB4SS TuffSeal® signal trim, top access |
| Cable | 20 ft SURVIVOR® EL147HE |
| Construction | Carbon steel with ball feet |
| Legal for Trade | No |
| Warranty | Load Cells: 2 years All other components: 1 year limited |

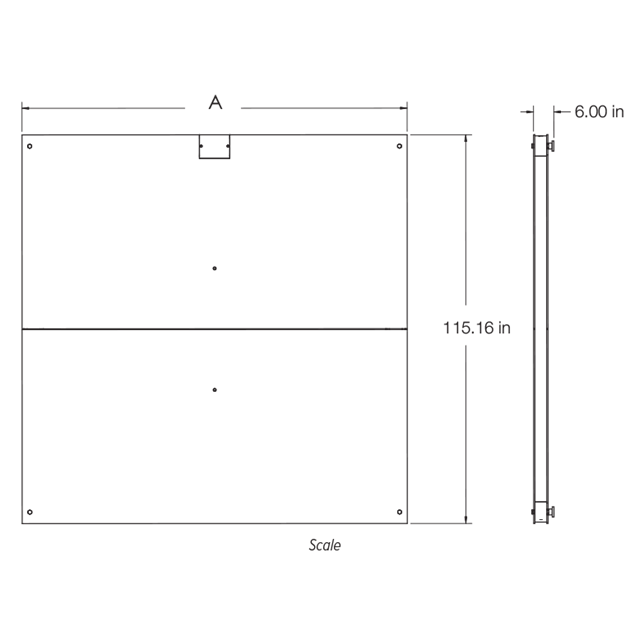

| Part Number | Length (A) |
|---|---|
| 169649 | 90.00 in |
| 169650 | 114.00 in |
| 169651 | 138.00 in |

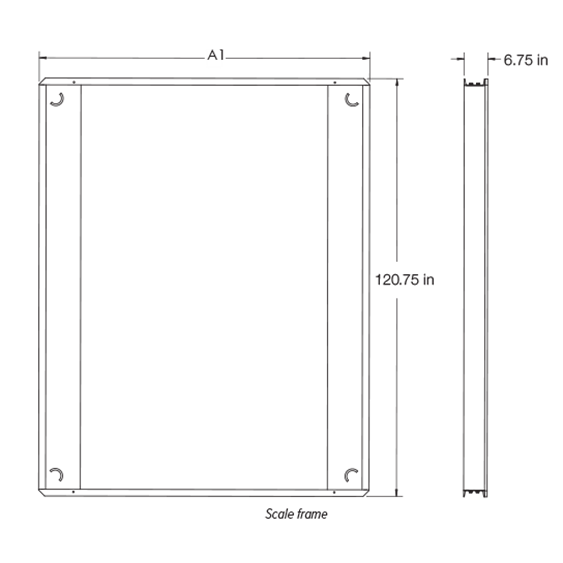

| Part Number | Length (A1) |
|---|---|
| 169652 | 95.75 in |
| 169653 | 119.75 in |
| 169654 | 143.75 in |

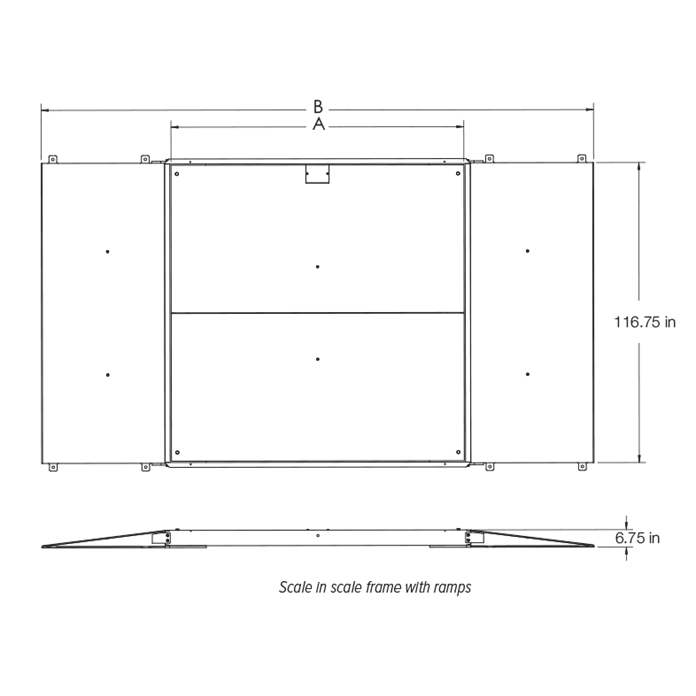

| Part Number | A (Scale) | B (Total Length) |
|---|---|---|
| 169645 | 90.00 in | 191.75 in |
| 169647 | 114.00 in | 215.75 in |
| 169648 | 138.00 in | 239.75 in |

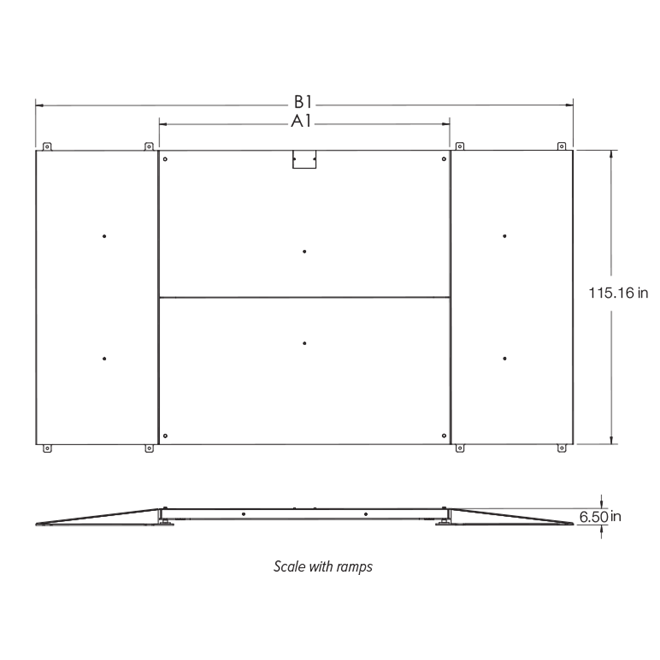

| Part Number | A1 (Scale) | B1 (Total Length) |
|---|---|---|
| 169649 | 90.00 in | 187.00 in |
| 169650 | 114.00 in | 211.00 in |
| 169651 | 138.00 in | 235.00 in |
Note: 1 inch = 25.4 mm
Whether you're managing seasonal loads or need a durable solution for onsite axle weighing, the RoughDeck® AX-1 delivers dependable results in a portable package. Contact us today to request a quote or ask about custom configurations tailored to your application.
