Key Highlights
Wire Rope Tension Monitoring up to 12,500 lbf
Wide Rope Compatibility: 3/16 in to 1 in diameters
Dual-Line LCD Display: Easy to read in bright conditions
Rugged IP65 Housing: Powder-coated aluminum frame
Multiple Units Displayed: lbf, kgf, and kN
Factory-Programmed Calibrations: Up to 8 included
Battery Powered: 24-hour operation with 2 AA alkaline batteries
OSHA-Ready Design: Safety strap accommodation
User-Defined Functions: 2 programmable keys for quick access
Optional: Heavy-duty carrying case for field use
The MSI Dyna-Clamp is a reliable and rugged digital tension meter engineered to accurately measure the tension of wire ropes used in lifting, rigging, and cable-safety applications. This handheld device is built for field use and features a dual-line LCD display that ensures visibility even under harsh sunlight.
Ideal for professionals needing to verify load tension, the Dyna-Clamp supports up to 1-inch wire rope diameters without any mechanical adjustments. Its live tension readings are displayed prominently, while the second line on the LCD can be configured to show peak or average tension, or rope diameter—enhancing usability and real-time insights.
Durability is at the forefront of the Dyna-Clamp's design. Its IP65-rated anodized aluminum frame withstands tough environments, while its scratch-resistant screen overlay protects against jobsite wear and tear.
The unit comes preloaded with up to eight factory calibrations, eliminating the need for recalibration between common wire rope types—helping to reduce downtime and improve accuracy. Plus, with OSHA-compliant safety strap capability, it's the safe and smart choice for critical tension verification tasks.
Specifications Table
Feature
Details
Power
2 × AA 1.5 V alkaline batteries (NiMH optional)
Max Tension Capacity
12,500 lbf / 5,670 kgf / 55.60 kN
Rope Diameter Range
3/16 in (5 mm) to 1 in (25 mm)
Resolution
2,500 divisions
Accuracy
±3% of capacity
Display (Primary)
Six 0.7 in (18 mm) numeric digits
Display (Secondary)
Eight 0.5 in (13 mm) numeric digits
Display Units
lbf, kgf, kN
Keys
Power, Zero, F1, F2 (programmable)
Operating Temp. Range
-4 °F to 122 °F (-20 °C to 50 °C)
Auto-Off
Selectable: 15, 30, 45, or 60 minutes
Setpoints
Two setpoints with LED indicators
Enclosure
IP65 rated, powder-coated aluminum
Approvals
CE Marked, UKCA
Warranty
Two-year limited

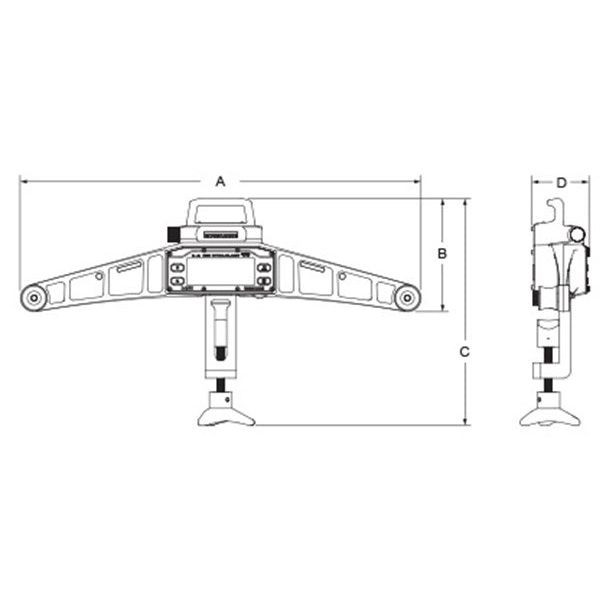

Dimensions (L×W×H)
25.7 × 7.3 × 3.7 in (652.8 × 185.5 × 94 mm)
Carrying Case (Optional)
Heavy-duty protective storage case
Ready to improve your tension measurement accuracy? Equip your team with the MSI Dyna-Clamp—a durable, precise, and easy-to-use tension meter for real-world rope applications. Contact us now for pricing, availability, or to add optional accessories like the heavy-duty carry case.
