Precision Tension Monitoring: Accuracy up to 0.1% of full scale
Heavy-Duty Design: Aircraft-grade aluminum or steel (depending on capacity)
LCD Readout: 1" or 1.22" six-digit display for easy visibility
Battery Powered: Up to 300 hours runtime with common batteries
Wireless RF Optional: Connects to MSI-8000, 8000HD RF, 8004HD RF, and TranSend™
RS-232 Output: For data logging and communication
Full-Function Remote Support: On/Off, Zero, Tare, Peak Hold, and more
OSHA-Ready: Accepts Crosby® shackles and includes peak safety load capacity

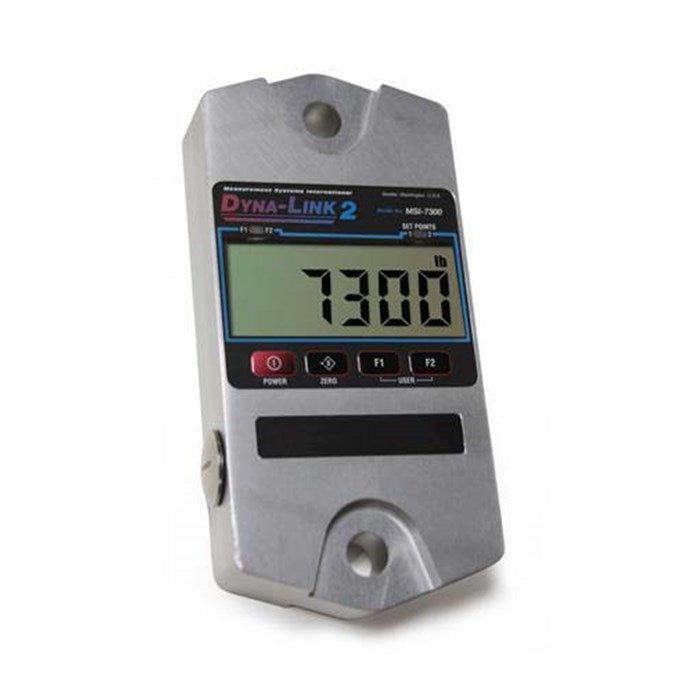

The MSI-7300 Dyna-Link 2 is a rugged and portable digital tension dynamometer designed for precision load monitoring in industrial environments. Built to excel in overhead lifting, tension testing, and load verification applications, the Dyna-Link 2 offers superior strength, accuracy, and wireless communication capabilities—all in a compact, battery-powered package.
With a lightweight anodized aluminum frame (up to 100000 lb) or steel body construction (for 120000 lb and above), this device is NEMA Type 4/IP65 rated, providing strong resistance against harsh environments. The large, backlit LCD screen ensures weight values are visible even from long distances.
For advanced applications, the Dyna-Link 2 includes an optional RF modem that wirelessly connects to the MSI-8000 family of remote displays, offering remote control and monitoring up to 100 ft (30 m). It also supports RS-232 output for logging and integration with third-party systems.
Battery life is highly efficient—delivering up to 300 hours of operation with standard alkaline C or D cells, depending on model capacity. The integrated auto-off mode and programmable setpoints make it perfect for mission-critical operations requiring long-duration accuracy and control.

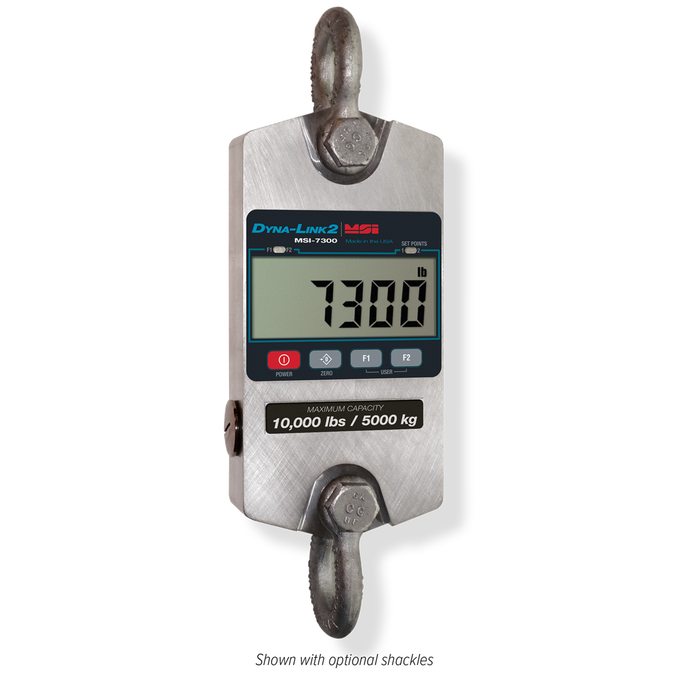

Pair with Crosby® shackles, a serial output cable, or a heavy-duty transport case for a complete turnkey load monitoring solution.
Specifications Table
Feature
Details
Accuracy
0.1% FS (≤100000 lb), 0.5% FS (≥120000 lb)
Display
5-digit (1.22"), 6-digit (1.00") LCD
Display Units
lb, kg, kN, tons, metric tons
Power
2 × C-cell (≤10000 lb), 2 × D-cell (≥25000 lb)
Operating Time
150–300 hours; 25–30 hours with RF modem
Material
2024 aircraft-grade aluminum or 4340 mild steel
Enclosure Rating
NEMA 4 / IP65, anodized aluminum or zinc-plated steel
Typically 100–300 ft (line of sight), consult for longer
Shackle Dimensions Table
W.L.L. (tons)
A
B
C
D
E
F
H
L
N
P
Weight (lb)
3 1/4
0.63
1.06
0.75
2.38
0.63
1.69
1.56
4.22
2.94
0.69
1.58
6 1/2
0.88
1.44
1.00
3.31
0.88
2.28
2.13
5.75
4.03
0.97
3.95
17
1.50
2.38
1.63
5.75
1.50
3.88
3.63
9.88
6.88
1.62
19.50
25
1.75
2.88
2.00
7.00
1.75
5.00
4.32
11.88
8.50
2.12
31.30
40
1.75
2.88
2.00
7.00
1.75
5.00
4.32
11.88
8.50
2.12
33.91
55
2.00
3.25
2.25
7.75
2.00
5.75
5.00
13.38
9.75
2.00
51.75
120
3.00
5.00
3.25
13.00
3.00
7.88
6.50
21.50
14.50
3.63
178.00
250
4.00
8.50
5.00
20.00
4.50
13.00
12.00
35.00
24.50
6.50
600.00
For oversized shackles and shims, consult the factory for compatibility and pricing.
Trust your tension monitoring to a proven powerhouse. Whether you're lifting heavy loads, verifying rigging tension, or conducting critical force measurements, the MSI-7300 Dyna-Link 2 offers unmatched reliability, wireless flexibility, and high-visibility performance.
Contact us now to request a quote, explore wireless accessory packages, or configure the ideal tension monitoring setup for your operation.
