Key Highlights
-
High-Temperature Ready with anti-heat shielding options
-
NTEP Certified – Legal for Trade from 500 to 70,000 lb
-
IP66-Rated Marine-Grade Aluminum Housing
-
Safe Load Ratings: 200% Safe / 500% Ultimate
-
Multiple Capacities Available – From 500 to 100,000 lb
-
RF & Wi-Fi Connectivity with MSI-8000, LaserLight2™, TranSend™
-
360° Swivel Hook with Crosby® hardware or equivalent
-
Digital Calibration & Remote Display Support
-
Rechargeable 12V Battery with 75-hour Runtime
-
Complies with OSHA, ANSI, ASME Safety Standards

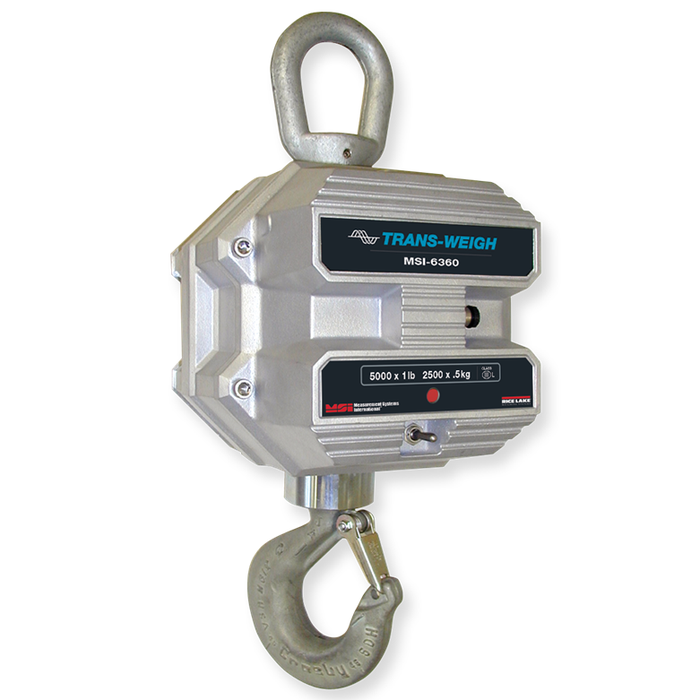

The MSI-6360 Trans-Weigh is engineered for extreme industrial environments, offering exceptional performance in high-temperature and heavy-capacity applications. Its marine-grade IP66 cast aluminum housing safeguards internal components while maintaining accurate, NTEP-certified measurements across a wide range of capacities—from 500 to 100,000 lb.
With an integrated 12V rechargeable battery, the MSI-6360 delivers up to 75 hours of operation, and its compatibility with MSI’s RF remote displays allows operators to safely monitor loads from a distance. Optional Wi-Fi integration extends capabilities into networked systems, while custom top and bottom interfaces support specialized lifting hardware or headroom constraints.
Safety is built into every component—featuring a 5:1 ultimate safety factor, and full compliance with OSHA, ANSI, and ASME lifting standards. The MSI-6360 also offers advanced filtering, automatic power management, and digital calibration via MSI's remote system for easy configuration and maintenance.
Specifications
| Feature |
Details |
| Power |
12V rechargeable battery with 115/230 VAC charger (included) |
| Operating Time |
Up to 75 hours (typical use) |
| Displayable Units |
Pounds or Kilograms (selectable) |
| Accuracy |
± (0.1% + 1d) of capacity |
| Resolution |
3,000 to 5,000 d standard, up to 10,000 d optional |
| Material Rating |
NEMA Type 4, IP66 |
| Enclosure |
Marine-grade 356 anodized cast aluminum |
| Design Overload |
200% Safe / 500% Ultimate |
| Operating Temperature |
-40 °F to 176 °F (-40 °C to 80 °C) |
| Certified Temperature |
14 °F to 104 °F (-10 °C to 40 °C) |
| Radio Link |
802.15.4 at 2.4 GHz, typical range 100–300 ft |
| Calibration |
Digital via MSI ScaleCore remote |
| Optional Interfaces |
RF modem, Wi-Fi, Rugged Remote, custom top/bottom adapters |
| Approvals |
NTEP CC 19-122, ANSI, OSHA, ASME compliant |
| Warranty |
One-year limited |
Capacities & Dimensions
| Capacity (lb / kg) |
Resolution (lb / kg) |
A |
B |
C |
D |
E |
F |
Hook |
Top Interface |
Shipping Wt |
| 500 / 250 |
0.2 / 0.1 |
18.2 in |
2.25 in |
3.06 in |
1.44 in |
1.41 in |
- |
5 ton alloy swivel |
CR #7 eyenut |
51 lb (22 kg) |
| 2,000 / 1,000 |
1 / 0.5 |
18.2 in |
2.25 in |
18.2 in |
1.44 in |
1.41 in |
- |
5 ton alloy swivel |
CR #7 eyenut |
51 lb (22 kg) |
| 5,000 / 2,500 |
1 / 0.5 |
20.4 in |
2.5 in |
3.5 in |
1.81 in |
1.69 in |
- |
7 ton alloy swivel |
CR #8 eyenut |
60 lb (26 kg) |
| 10,000 / 5,000 |
2 / 1 |
20.4 in |
2.5 in |
3.5 in |
1.81 in |
1.69 in |
- |
7 ton alloy swivel |
CR #8 eyenut |
60 lb (26 kg) |
| 20,000 / 10,000 |
5 / 2 |
28.4 in |
4.0 in |
6.25 in |
2.62 in |
2.41 in |
- |
15 ton alloy swivel |
CR #11 eyenut |
103 lb (45 kg) |
| 30,000 / 15,000 |
10 / 5 |
29.9 in |
4.0 in |
6.25 in |
3.0 in |
3.19 in |
- |
22 ton alloy swivel |
CR #11 eyenut |
123 lb (53 kg) |
| 50,000 / 25,000 |
10 / 5 |
40.9 in |
5.0 in |
6.0 in |
3.62 in |
3.63 in |
15 in |
30 ton alloy swivel |
CR #2130 (25T shackle) |
233 lb (105 kg) |
| 70,000 / 35,000 |
20 / 10 |
43.1 in |
5.0 in |
6.0 in |
4.56 in |
3.75 in |
15 in |
37 ton alloy swivel |
CR #2140 (40T shackle) |
268 lb (120 kg) |
| 100,000 / 50,000 |
20 / 10 |
52 in |
5.75 in |
6.65 in |
5.06 in |
4.25 in |
16.25 in |
45 ton alloy swivel |
CR #2140 (55T shackle) |
418 lb (188 kg) |
Engineered for extreme heat, heavy loads, and uncompromising performance— the MSI-6360 Trans-Weigh Crane Scale is the industrial powerhouse your operations need. With NTEP certification, Wi-Fi and RF integration, and marine-grade construction, it's built to tackle your toughest weighing challenges.
Get a quote today or contact us for custom configurations, anti-heat protection, or connectivity solutions for your weighing system.
