Key Highlights
-
Massive Capacity Range: 500 lb to 100,000 lb (250 kg to 50,000 kg)
-
NTEP Certified & Measurement Canada Approved
-
IP66 Rated Aluminum Body: Rugged for industrial environments
-
Swivel Hook or Shackle Options with 360° thrust-bearing rotation
-
Two Power Options: D-cell batteries (up to 1000 hrs) or rechargeable 12V battery (250 hrs)
-
1.75” LCD Display with brightness control and annunciators
-
User-Programmable Buttons for peak hold, net/gross, print, and more
-
200% Safe / 500% Ultimate Overload Safety Factor
-
RF Modem and Wi-Fi Connectivity Options
-
Flexible Installation: Top/bottom adapter and interface customization options

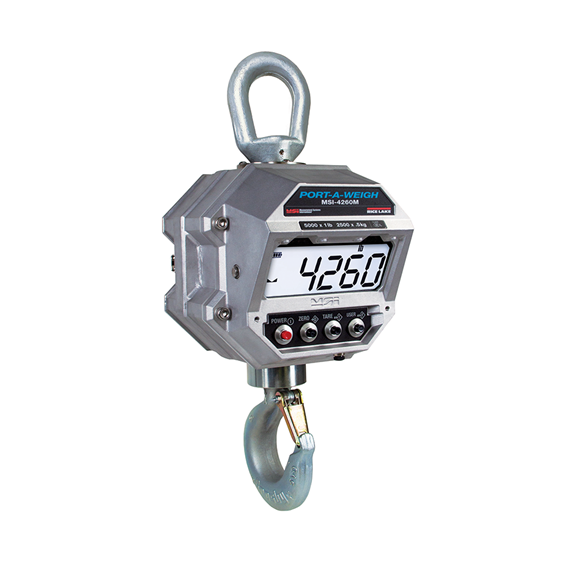

The MSI-4260M Port-A-Weigh Industrial Crane Scale is built to deliver unmatched performance, safety, and adaptability in demanding overhead lifting applications. With an industry-leading capacity range of 500 to 100,000 lb, this scale meets the needs of warehouses, manufacturing plants, construction sites, shipyards, and more.
Constructed with IP66-rated cast aluminum, it protects critical electronics from dust, water, and impact, making it ideal for indoor or outdoor use in the harshest environments. The Crosby®-style 360° swivel hook (or shackle) ensures easy and safe load handling during suspended weighing.
This NTEP Certified and Measurement Canada Approved scale includes a large five-digit LCD display with programmable brightness and critical annunciators for real-time operational status. The MSI-4260M also offers RF modem compatibility with MSI remote displays and Wi-Fi for specialty integration.
Safety is built into every aspect—its 200% safe and 500% ultimate overload protection provides complete peace of mind during critical lifting operations.
Specifications Table
| Feature |
Details |
| Capacity Range |
500 lb to 100,000 lb (250 to 50,000 kg) |
| Resolution |
NTEP Class III: 2,500d
Class IIIL: 5,000d
Non-NTEP: up to 10,000d |
| Accuracy |
±(0.1% + 1d) of applied load |
| Display |
Five-digit, 1.75 in (44.5 mm) LCD with adjustable brightness |
| Displayable Units |
Pounds or Kilograms (Selectable) |
| Housing Material |
Cast Aluminum, IP66 Rated |
| Operating Temperature |
-20 °F to 122 °F (-28 °C to 50 °C) |
| Certified Temperature Range |
14 °F to 104 °F (-10 °C to 40 °C) |
| Overload Protection |
200% Safe / 500% Ultimate |
| Filtering |
OFF, LO, HI-1, HI-2 |
| Power – Alkaline Batteries |
Six (6) D-cell 1.5V – Up to 1,000 hrs |
| Power – Rechargeable Battery |
12V battery with 115/230 VAC charger – Up to 250 hrs |
| Auto-Off Timer |
Selectable: 15, 30, 45, 60 min or OFF |
| Auto Sleep Timer |
Selectable: 5, 15, 30 min or OFF |
| Communication Options |
RF modem, Wi-Fi (optional) |
| RF Frequency / Range |
802.15.4 @ 2.4 GHz / 100–300 ft (line of sight) |
| Customizable Interfaces |
Oversized hooks, top/bottom adapters, audible alarms |
| Certifications |
NTEP CC 19-122 (500 to 70,000 lb)
Measurement Canada: AM-6198 (500–5000 lb), AM-6249 (10,000–20,000 lb) |
| Warranty |
One-Year Limited |
Optional Upgrades & Accessories
-
RF Modem: Connects to MSI-8000, 8000HD, 8004HD, TranSend™, and LaserLight2™
-
Wi-Fi Communication: Available for specialty integration
-
Rugged Remote Control: For easier access and readings
-
Oversized Hooks or Shackles: For custom load handling
-
Low Headroom Adapters & Custom Interfaces
-
Audible Alarms: For overload alerts
When your industrial operation demands precision, durability, and certified safety, trust the MSI-4260M Port-A-Weigh Crane Scale. It’s the ultimate solution for suspended weighing, with flexible power, wireless communication, and full customization.
Request a quote now and scale up your lifting efficiency with the MSI-4260M.
