Key Highlights
-
Up to 100,000 lb Capacity with ±0.1% accuracy
-
NTEP Certified and Intrinsically Safe for hazardous zones
-
FM, ATEX, UL, IECEx Approved for use in explosive environments
-
IP66 Cast Aluminum Enclosure with NEMA 4 rating
-
Multi-Color LED Display with brightness control and annunciators
-
12V Rechargeable Battery with up to 200 hours of runtime
-
Optional RF and Wi-Fi Connectivity
-
Custom Top/Bottom Interfaces and Oversized Hooks Available
-
Anti-Heat Shielding for high-temperature applications
-
200% Safe / 500% Ultimate Overload Protection

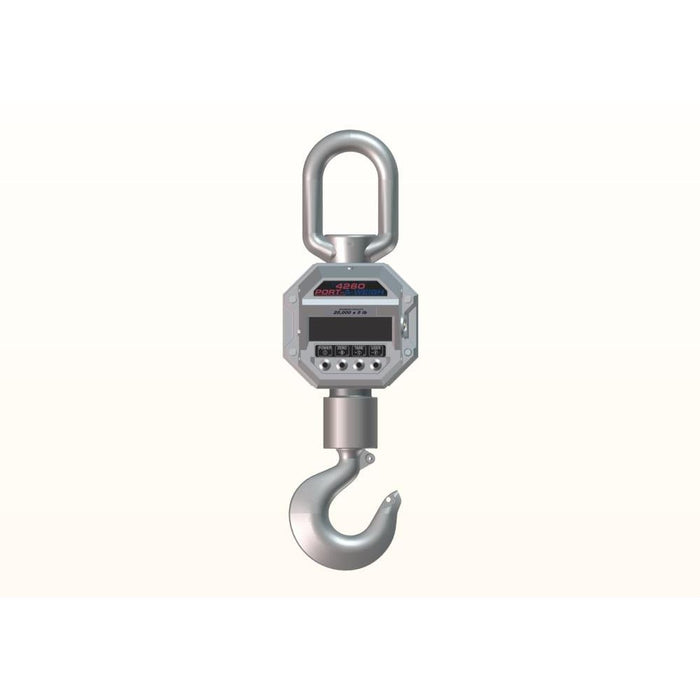

The MSI-4260 Port-A-Weigh Industrial Crane Scale is purpose-built for heavy-duty, hazardous, and high-risk lifting environments. With an intrinsically safe design, it meets rigorous certifications including FM, ATEX, IECEx, and UL, making it ideal for industries such as oil and gas, chemical plants, foundries, and explosive zones.
Constructed with IP66 marine-grade cast aluminum, it houses sensitive electronics inside a sealed, NEMA 4-rated enclosure for maximum protection against moisture, dust, and impact. The scale features a high-visibility five-digit LED display with programmable brightness, clear annunciators, and intuitive controls for zero, tare, and programmable functions.
This model provides exceptional accuracy (±0.1% +1d) and supports weight readings in pounds or kilograms, ensuring versatility in global operations. Optional communication upgrades like RF modem, Wi-Fi, and remote control extend operational convenience, especially in overhead weighing setups.
With a wide range of customization options and an optional low headroom adapter, the MSI-4260 adapts to virtually any lifting scenario while maintaining reliable, intrinsically safe performance.
Specifications Table
| Feature |
Details |
| Capacity |
Up to 100,000 lb (50,000 kg) |
| Accuracy |
±0.1% +1 d of applied load |
| Resolution |
2,000 to 5,000 d standard (up to 10,000 d optional) |
| Display |
1.2 in (30 mm), 5-digit multi-color LED (red, orange, green) |
| Units |
Pounds or Kilograms (Selectable) |
| Controls |
Power, Zero, Tare, F1 (programmable) |
| Annunciators |
COZ, net, gross, total, peak, low battery, lb/kg, motion, setpoints |
| Enclosure |
Marine-grade 356 alloy anodized cast aluminum |
| Environmental Rating |
NEMA Type 4 / IP66 |
| Temperature Range (Certified) |
14 °F to 104 °F (-10 °C to 40 °C) |
| Temperature Range (Operating) |
-40 °F to 122 °F (-40 °C to 50 °C) |
| Overload Protection |
200% Safe / 500% Ultimate |
| Power Supply |
12V rechargeable battery with 115/230 VAC charger |
| Battery Life |
Up to 200 hours (less with RF modem) |
| Auto-Off Mode |
15, 30, 45, 60 min or OFF |
| Auto-Sleep Mode |
Powers down during inactivity and restarts with weight change or key press |
| Filtering Options |
OFF, LO, HI-1, HI-2 |
| Service Counters |
Tracks lifts over capacity or % of capacity |
| Approvals |
NTEP CC 19-122 (500–70,000 lb)
Measurement Canada AM-6198 (500–5,000 lb), AM-6249 (10,000–20,000 lb)
FM, UL, ATEX, IECEx Intrinsically Safe |
| Warranty |
One-year limited |
Optional Add-Ons
-
RF Modem for remote display compatibility (100–300 ft range)
-
Wi-Fi module for ScaleCore Webserver integration
-
Anti-heat shielding for high-temp applications
-
Low headroom top adapter
-
Oversized hook or shackle options
-
Audible alarm for over-capacity warnings
-
Rugged remote control
-
Factory Mutual and ATEX approved versions for intrinsic safety
-
Custom top and bottom interface configurations
When safety, compliance, and durability are non-negotiable, the MSI-4260 Industrial Crane Scale delivers. Whether you're operating in explosive environments or high-temperature foundries, this intrinsically safe scale keeps your operations secure and your readings precise.
Request your quote now and experience uncompromised safety with MSI’s top-tier industrial crane weighing solution.
