Key Highlights
-
Intrinsically Safe Design — FM, ATEX, IECEx, UL, and CSA certified
-
LED Display with Programmable Brightness — 1.2 in 5-digit, high-visibility
-
Capacities up to 70,000 lb (35,000 kg) with ±0.1% accuracy
-
IP66 NEMA 4 Enclosure — Marine-grade anodized aluminum body
-
12V Rechargeable Battery — Up to 80 hours operation per charge
-
Compact & Durable — Ideal for harsh or explosive environments
-
Auto-Off and Sleep Modes — Power-saving functions included
-
Thrust-Bearing Swivel Hook — 360° rotation with Crosby® or equivalent
-
Zero, Tare, Peak, and Customizable F1 Key Functions
-
Service Counters — Tracks lifts over percentage or capacity

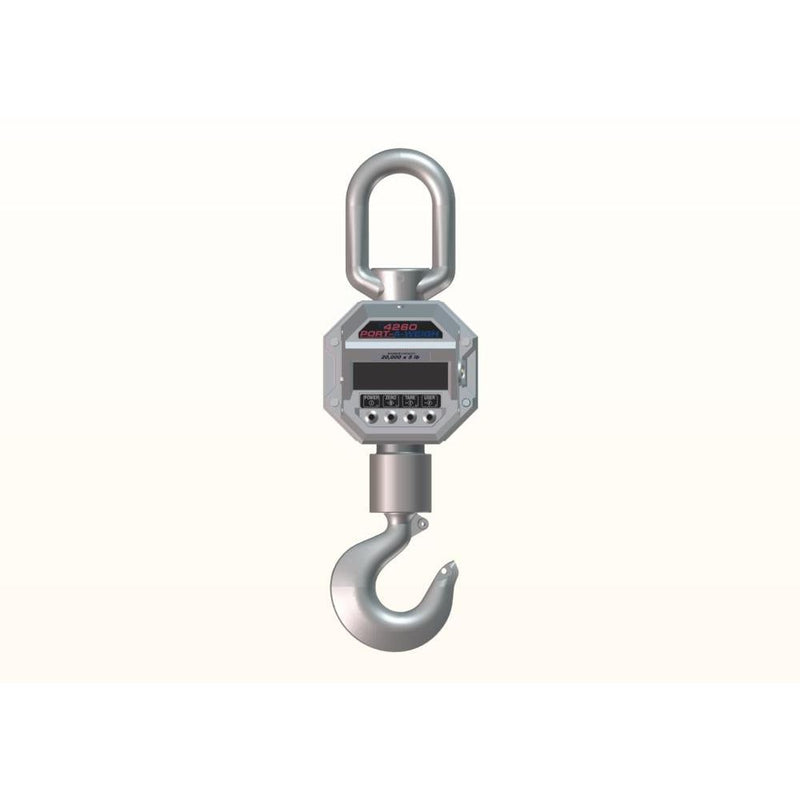

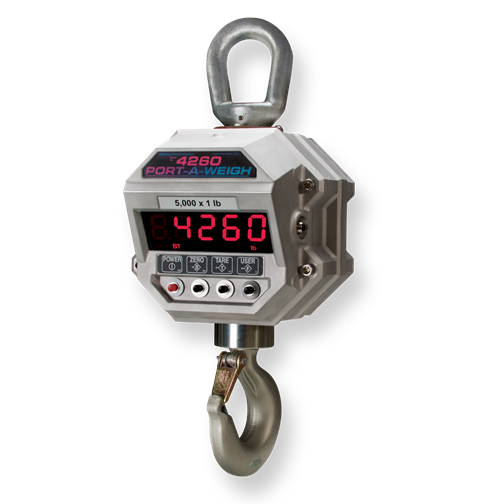

The MSI-4260 IS (Intrinsically Safe) Crane Scale is the go-to solution for overhead weighing in hazardous and explosive environments, such as refineries, chemical plants, or dusty industrial facilities. Engineered with FM Global, ATEX, IECEx, UL, and Measurement Canada certifications, this crane scale exceeds OSHA, ANSI, and ASME standards—making it a secure choice for regulated operations.
The unit features a marine-grade IP66 cast aluminum body that protects sensitive electronics in rugged, wet, or particle-filled settings. The five-digit 1.2 in LED display offers adjustable brightness for readability under any lighting conditions. With a capacity range up to 70,000 lb and accuracy of ±0.1%, it delivers consistent and reliable results in imperial or metric units.
Its 12V rechargeable battery provides up to 80 hours of continuous operation, and the intelligent power management system includes configurable auto-off and sleep modes. The thrust-bearing swivel hook, oversized top lifting eye, and optional accessories make it a versatile tool for various industrial lifting applications.
Designed with the operator in mind, the MSI-4260 IS also includes custom programmable keys, service counters for monitoring lift history, and multiple filtering modes to adapt to environmental conditions.
Specifications Table
| Feature |
Details |
| Capacity Range |
500 to 70,000 lb (Up to 35,000 kg) |
| Accuracy |
±(0.1% + 1d) of applied load |
| Resolution |
3,000 to 5,000 d standard (up to 10,000 d optional) |
| Display |
5-digit, 1.2 in (30 mm) LED, programmable brightness |
| Display Units |
Pounds or Kilograms (Selectable) |
| Controls |
Power, Zero, Tare, F1 (Programmable) |
| Enclosure |
IP66 / NEMA Type 4, marine-grade anodized cast aluminum |
| Annunciators |
COZ, net/gross, total, peak, low battery, motion, lb/kg, setpoints |
| Design Overload Protection |
200% Safe / 500% Ultimate |
| Battery |
12 V rechargeable battery |
| Charger |
115/230 VAC universal charger included |
| Battery Life |
Up to 80 hours (typical use) |
| Auto-Off Options |
15, 30, 45, 60 minutes or OFF |
| Auto-Sleep Options |
Activates with inactivity, wakes on keypress or weight change |
| Filtering Options |
OFF, LO, HI-1, HI-2 |
| Temperature - Certified |
14 °F to 104 °F (-10 °C to 40 °C) |
| Warranty |
One-year limited |
Intrinsic Safety Certifications
| Region |
Certifications & Ratings |
| USA |
FM16US0156X
IS Class I, Div 1, Groups C & D
Class II, Div 1, Groups E, F, G
Class I Zone 0 AEx ia IIB T4 Ga
Class I Zone 20 AEx ia IIIC T135°C Da
Temp: -20°C to +50°C |
| Canada |
FM16CA0092X
Ex ia Class I, Div 1, Groups C & D
Ex ia Class II, Div 1, Groups E, F, G
Class I, Zone 0, Ex ia IIB T4 Ga
Class I, Zone 20, Ex ia IIIC T135°C Da
Temp: -10°C to +50°C |
| ATEX / UKEX |
FM18ATEX0052X / FM21UKEX0104X
II 1 G Ex ia IIB T4 Ga
II 1 D Ex ia IIIC T135°C Da
Temp: -10°C to +50°C |
Approvals
-
NTEP CC 19-122: 500 to 70,000 lb
-
Measurement Canada AM-6198: 500 to 5,000 lb
-
Measurement Canada AM-6249: 10,000 to 20,000 lb
-
FM, ATEX, UL, IECEx approved for intrinsic safety
-
cFMus Compliant
When your operations involve hazardous, flammable, or explosive conditions, only the most reliable weighing solutions will do. The MSI-4260 IS Intrinsically Safe Crane Scale offers unmatched safety, performance, and compliance — making it the trusted choice in critical lifting applications worldwide.
Contact us today to request a quote and safeguard your operations with the highest level of industrial crane scale safety.
