Interface® WMC Miniature Sealed Tension/Compression Load Cell

Name: Interface® WMC Miniature Sealed Tension/Compression Load Cell
Brand: Rice Lake Weighing Systems
Price: 1373.0 USD
Availability: InStock

$1,267.00 - $1,373.00

$1,373.00

$1,267.00 - $1,373.00

$1,373.00

Model

Quantity

Description

Key Features:

Ultra-Compact & High-Strength Stainless Steel Construction
- Designed for precision tension and compression applications in a miniature envelope.
Wide Range of Capacities
- Available from 5 lb to 10,000 lb, making it ideal for small and large-scale force measurements.
Versatile Application
- Suitable for medical devices, robotics, automation, material testing, and industrial weighing.
High Accuracy & Stability
- Nonlinearity:
  - ±0.15% full scale for 5 lb to 500 lb
  - ±0.20% full scale for 1,000 lb to 10,000 lb
- Hysteresis:
  - ±0.15% full scale for 5 lb to 500 lb
  - ±0.20% full scale for 1,000 lb to 10,000 lb
High Durability & Environmental Resistance
- Safe Overload: 150% full scale
- Temperature Range: -65°F to 250°F (-54°C to 121°C)
Easy Integration with a 5 ft Cable
- Provides installation flexibility, ensuring seamless connectivity in different systems.

📌 Available Capacities: 5 lb to 10,000 lb
📌 Warranty: One-year limited

WMC Miniature Sealed Load Cell Specifications

Specification		Details
Full Scale Output		2.0 mV/V
Bridge Resistance		350 ohm nominal
Material/Finish		Stainless steel
Temperature		Operating: -65°F to 250°F (-54°C to 121°C)
Safe Overload		150% full scale
Rated Excitation		12 VDC
Nonlinearity		5 to 500 lb: ±0.15% full scale 1,000 to 10,000 lb: ±0.20% full scale
Hysteresis		5 to 500 lb: ±0.15% full scale 1,000 to 10,000 lb: ±0.20% full scale
Insulation Resistance		>5,000 megohm
Cable Length		5 ft
Cable Color Code		Red (+Excitation), Black (–Excitation), White (+Signal), Green (–Signal)
Warranty		One-year limited

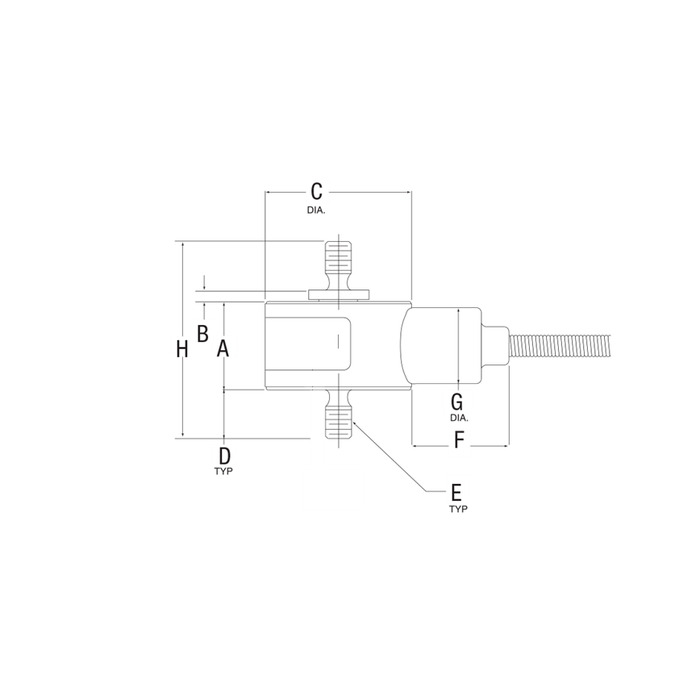

WMC Miniature Sealed Load Cell Dimensions (inches)

Rated Capacity (lb)	A	B	C	D	E	F	G	H
5 to 10	0.45	0.06	0.75	0.25	6-32 UNC	0.50	0.39	1.01
25 to 100	0.52	0.03	1.00	0.25	10-32 UNF	0.50	0.39	1.05
250 to 500	0.53	0.03	1.00	0.38	1/4-28 UNF	0.50	0.39	1.32
1,000	0.53	0.03	1.00	0.38	0.25-28 UNF	0.50	0.39	1.32
2,000 to 3,000	0.72	0.03	1.00	0.50	0.38-24 UNF	0.50	0.39	1.75
5,000	0.94	0.03	1.25	0.63	0.50-20 UNF	0.50	0.39	2.23
7,500 to 10,000	1.09	0.03	1.38	0.88	0.75-16 UNF	0.50	0.39	2.88

Upgrade your precision weighing applications with the Interface WMC Miniature Sealed Load Cell – engineered for high accuracy, durability, and easy integration. Order now for the best performance in force measurement solutions!
