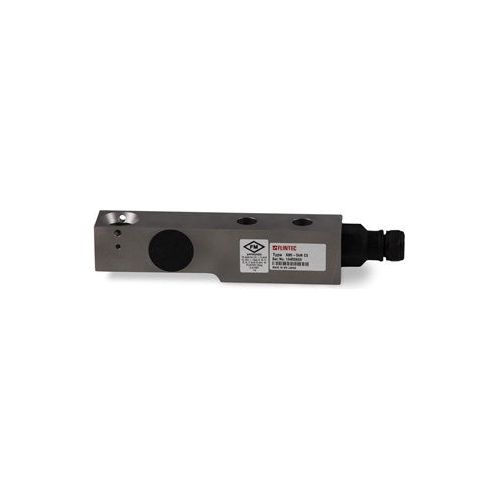

Flintec® SB5 Stainless Steel, Single-Ended Beam Load Cell

Flintec® SB5 Stainless Steel, Single-Ended Beam Load Cell

$430.00 - $932.00
$430.00
$430.00 - $932.00
$430.00

Key Features:

  • Precision for Multi-Cell Applications – Ideal for floor scales, tank, bin, and hopper weighing systems.
  • Optimized for Paramounts® EP Mounting Systems – Exclusively used in Rice Lake Weighing Systems' Paramounts® EP setups.
  • Stainless Steel Construction – Ensures durability, corrosion resistance, and long-lasting performance.
  • Environmentally Sealed Design – IP67-rated for protection against dust and moisture.
  • Matched Output Calibration – mV/V/ohm calibration for seamless multi-load cell integration and easy calibration.
  • Wide Capacity Range – Available in both NTEP Certified and Non-NTEP Certified options from 5 kN to 100 kN.
  • High Load Endurance – Can withstand 200% full-scale overload and 100% safe sideload capacity.
  • Reliable in Extreme Conditions – Functions efficiently between 0 °F and 150 °F (-18 °C to 65 °C).
  • Multiple Cable Options – Comes with 10 ft to 30 ft of polyurethane-jacketed cable for flexible installations.
  • Certified for Industrial Use – FM, NTEP, and OIML approved for legal trade and industrial weighing applications.

Flintec® SB5 Load Cell Specifications

Specification
Details
Full Scale Output   2.0 mV/V, mV/V/ohm calibration
Output Resistance
1,000 (± 2) ohm
Input Resistance
1,100 (± 50) ohm
Material/Finish
Stainless steel
Temperature Range (Compensated)
14 °F to 104 °F (-10 °C to 40 °C)
Temperature Range (Operating)
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type
Environmentally sealed, IP67
Safe Overload
200% full scale
Safe Sideload
100% full scale
Rated Excitation
5 to 15 VDC
Combined Error
± 0.03% full scale
Insulation Resistance
10,000 megohm
Deflection at Capacity
5 kN: 0.008 in / 10 kN: 0.012 in / 20 kN: 0.02 in / 50 kN: 0.012 in
Cable Length
5 to 20 kN: 10 ft / 50 to 100 kN: 15 ft (Optional: 30 ft)
Cable Diameter
0.196 in (Polyurethane jacket)
Cable Color Code
Green: +Excitation, Black: –Excitation, White: +Signal, Red: –Signal, Yellow: Shield
Warranty
One-year limited
Approvals
FM, NTEP, OIML

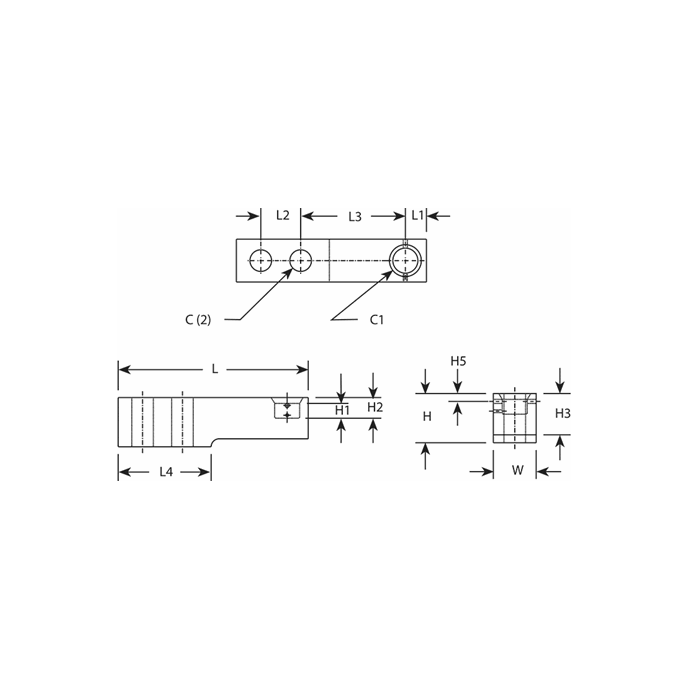

SB5 Load Cell Dimensions

Rated Capacity (kN/in)   C C1 H H1 H2 H3 H5 L L1 L2 L3 L4 W
5 to 20
0.53 0.71 1.42 0.39 0.59 1.19 0.16 6.10 0.59 1.38 3.15 2.98 1.18
50
0.85 0.98 1.93 0.58 0.81 1.62 0.31 7.48 0.83 1.57 4.13 3.66 1.69
100
1.06 1.18 2.87 0.82 1.21 2.43 — 9.65 1.19 1.97 5.31 4.72 2.36

Upgrade Your Weighing System with a Multi-Cell Solution

The Flintec SB5 Stainless Steel Beam Load Cell is ideal for floor scales, hoppers, bins, and tank weighing applications. Engineered for durability and precision, this load cell ensures consistent and accurate weight measurements. Order today from SellEton Scales and experience unmatched performance in your weighing systems!
