Livestock Weight Scales

Key Takeaways

• Livestock weight scales are essential for accurate cattle, sheep, hog, and goat weighing, helping producers track average daily gain, dose medications correctly, and document sale weights.

• Electronic load bars, alleyway platforms, and squeeze chute scales have largely replaced older mechanical beam systems on modern U.S. ranches and feedlots.

• NTEP-certified, legal-for-trade livestock scales are required whenever animals are sold by live weight—similar to requirements for truck or floor scales.

• Robust construction with sealed load cells, heavy duty steel frames, and animal-friendly surfaces is critical to withstand mud, manure, and constant animal movement.

• Livestock operators can integrate these scales with floor scales, axle scales, and truck scales for complete weight workflow management.

Introduction to Livestock Weight Scales

Accurate animal weighing sits at the center of profitable cattle, sheep, hog, and goat operations. Whether you’re tracking weight gain, calculating medication doses, or documenting sale weights, livestock weight scales deliver the data you need to make informed decisions.

Modern setups include alleyway platforms in handling systems, squeeze chute load bars that retrofit existing equipment, and dedicated crate scales for smaller animals. These electronic systems use precision load cells and digital indicators to weigh everything from 50 lb lambs to 2,000+ lb breeding bulls. Explore Selleton’s livestock and agricultural scales for current models.

How Livestock Weight Scales Work

Animals stand on a rigid platform or crate supported by load cells that convert force into an electronic weight reading. Load bars mount under existing chutes, while full platforms are self-contained decks with integrated surfaces.

The scale indicator captures live weight, applies motion-compensation algorithms, and displays a stable reading—even when a 2,470 lb bull shifts his weight. Quality livestock scales use multiple shear-beam load cells wired to a sealed junction box, with “live animal” modes that average fluctuating readings for repeatable results.

Common Types of Livestock Weight Scales

Ranches, feedlots, and small farms choose among several scale formats based on species, facility layout, and budget.

Squeeze-Chute Load Bar Systems

Chute load bars are among the most popular upgrades for existing working facilities. Two heavy duty bars bolt under the chute frame, turning nearly any headgate or squeeze chute into a scale without changing animal flow.

Typical specifications include widths around 36–40 inches, capacities in the 5,000–10,000 lb range, and construction designed for 7,000+ lb gross loads. Benefits include reduced stress since cattle stay in familiar chutes, plus fast processing during vaccinations and sorting. Look for IP-rated, sealed load cells to resist wash-downs.

Alleyway and Platform Scales

Alley platforms sit flush in the handling system so animals walk across during normal movement. Textured steel or aluminum surfaces with side rails reduce slipping. Common dimensions run 24”–30” wide by 84”–96” long for mature cattle. These scales pair well with indicators mounted on nearby posts, ideal for operations weighing groups quickly.

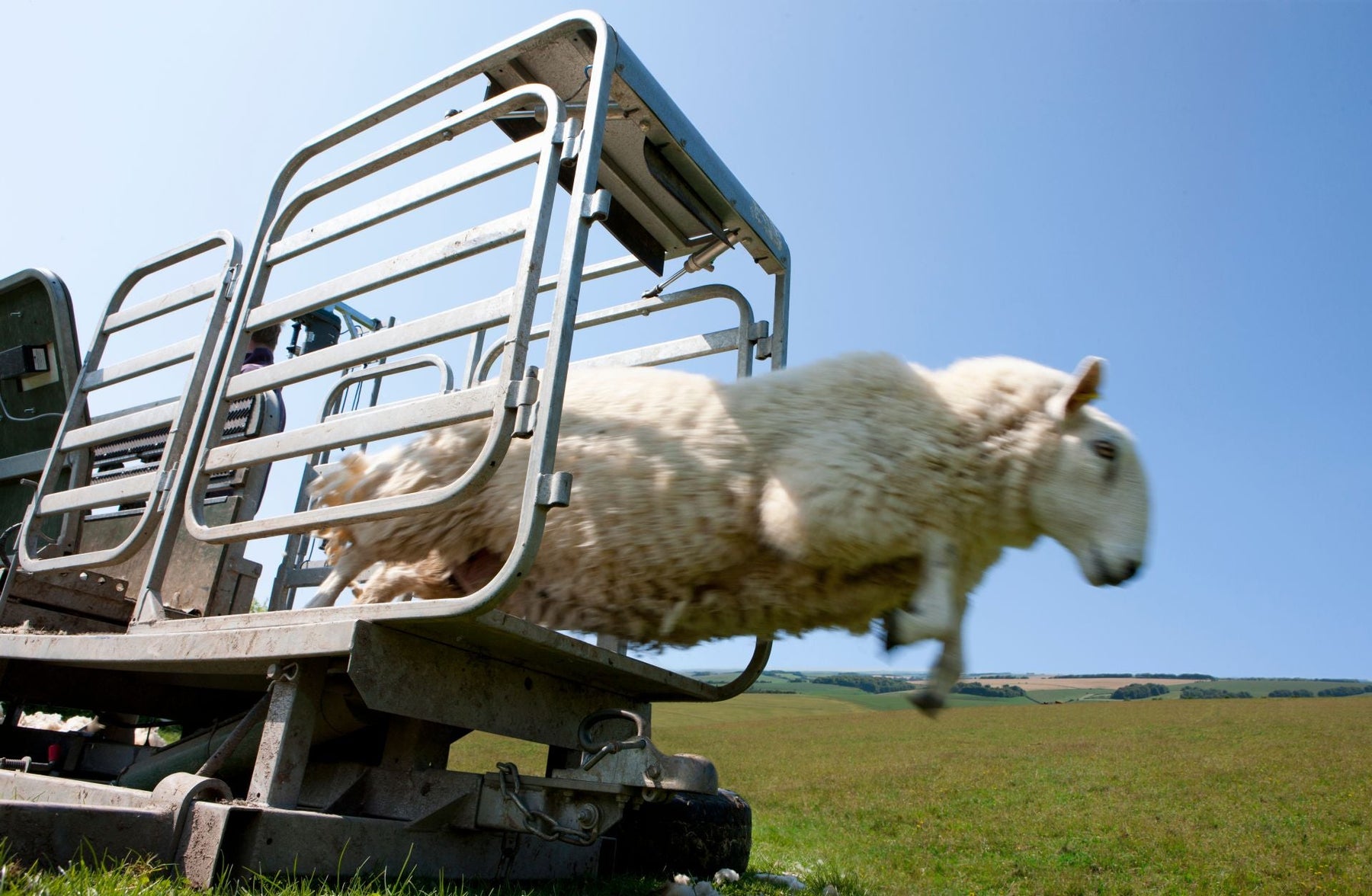

Crate Scales for Hogs, Sheep, and Goats

Crate scales feature enclosed platforms with low-stress side panels and integrated gates for smaller, more agile animals. Side-slide or bi-fold gates allow quick loading while minimizing escape risk. Capacity ranges typically span 1,000–3,000 lb with high-resolution readouts suitable for 4-H project animals. Many designs include wheels for easy portability between pens.

Complementary solutions like certified truck scales and axle weigh pads handle loaded trailers and feed trucks.

Key Features to Look for in Livestock Scales

Durability and animal-friendly design matter more than luxury features in agricultural environments:

Selleton offers similar smart connectivity on industrial floor scales.

Capacity, Accuracy, and Legal-for-Trade Considerations

Select capacity based on animal weight plus chute weight, plus 20–30% margin. Typical readability runs 1 lb increments for cattle, with finer resolution for small ruminants.

When scales determine sale price, U.S. producers must use NTEP-certified, legal-for-trade equipment following NIST Handbook 44 guidelines. Contact local weights-and-measures officials about inspection requirements. Similar NTEP-certified technology applies to floor and truck scales.

Benefits of Using Livestock Weight Scales

Accurate, routine weighing supports both animal welfare and business profitability:

• Herd management: Track average daily gain, identify poor doers early, verify breeding program results

• Precise dosing: Calculate exact medication amounts, prevent under- or overdosing

• Economic returns: Capture true sale weights, avoid $50–100/head underestimation

• Feed efficiency: Adjust rations based on actual gain data

• Labor savings: Faster processing, fewer re-weighs, less animal stress

Installation, Setup, and Integration

Proper site preparation is critical. Select a firm concrete base with adequate drainage, aligned with existing alleys or chutes to maintain natural animal flow.

For load bars, use level shims and secure bolting with clearance to prevent binding. Platform installations require level decks without side contact. Mount indicators at eye level, protect cables from hoof traffic, and consider combining livestock scales with floor scales in feed rooms for complete inventory tracking.

Maintenance, Calibration, and Longevity

Farm environments are harsh. Regular cleaning significantly extends scale life:

• Remove manure, mud, and bedding from under platforms

• Inspect load cells and cables for corrosion or rodent damage

• Calibrate using certified test weights at least annually

• Keep calibration certificates for legal-for-trade compliance

High-throughput operations may calibrate quarterly.

Comparing Livestock Scales with Other Agricultural Weighing Solutions

Livestock scales are one part of a broader weighing ecosystem. General floor scales handle feed totes and equipment rather than live animals. Axle scales verify loaded trailer weights, while truck scales weigh inbound feed and outbound cattle loads. Hanging crane scales serve carcass weighing needs.

How to Choose the Right Livestock Scale

Match scale format to your operation:

1. List primary species and heaviest expected weights

2. Match format to infrastructure (load bars for existing chutes, platforms for alleys)

3. Consider portability needs for pasture rotations

4. Prioritize NTEP certification if selling by live weight

Explore Selleton’s livestock scales to find the right solution.

FAQ

How often should I weigh my cattle or other livestock?

Cow-calf producers typically weigh at weaning, pre-breeding, and pre-sale events. Feedlots often weigh groups every 30–45 days to track gain. Choose an interval balancing labor against the value of performance data.

Can livestock scales be used outdoors year-round?

Yes, many chute load bars and portable platforms are designed for outdoor use with IP-rated components. Install on solid, level footings with good drainage. Protect indicators in enclosures and inspect more frequently in muddy or freezing conditions.

What size platform do I need for show pigs, lambs, or goats?

Crate scales with decks around 24” x 48” typically accommodate single show animals. Measure your longest animals at finish weight and add clearance so they stand naturally without turning.

Will a livestock scale work with my existing squeeze chute or headgate?

Most modern load bar systems retrofit popular manual and hydraulic chutes, provided the frame is structurally sound and wide enough (typically 36”+ width). Contact your scale supplier with chute brand and dimensions for confirmation.

Can I connect my livestock scale to farm software or record systems?

Many digital indicators offer RS-232, USB, or Ethernet outputs compatible with herd-management programs. Select an indicator with required communication ports, similar to how industrial floor scales interface with ERP systems.
