Crane Scales: Industrial-Grade Hanging Scales for Suspended Load Weighing

A crane scale solves an industrial weighing problem that floor scales cannot touch: how to weigh a load that is already in the air. In steel mills, scrap yards, foundries, shipping terminals, fabrication shops, and warehouses with overhead handling systems, the most efficient point to capture weight is the moment the load is on the hook. A crane scale inserted between the hoist and the load turns that lift into a weighing event without breaking the workflow, without setting the load down on a platform scale, and without sacrificing accuracy or compliance.

Selleton Scales engineers and supplies industrial crane scales and hoist scales rated for the full range of overhead applications, from compact 500-pound hanging units used in fabrication to heavy-capacity 50,000-pound and larger crane scales used in scrap, steel, and shipping. Our hanging crane scale and hoist collection is built around the same engineering and certification standards as the rest of our line: NTEP-ready configurations, rugged commercial-grade construction, and smart wireless indicators that integrate with the data systems your operation already runs. This guide walks through how crane scales work, where they fit best, and what to look for when specifying one.

How crane scales work

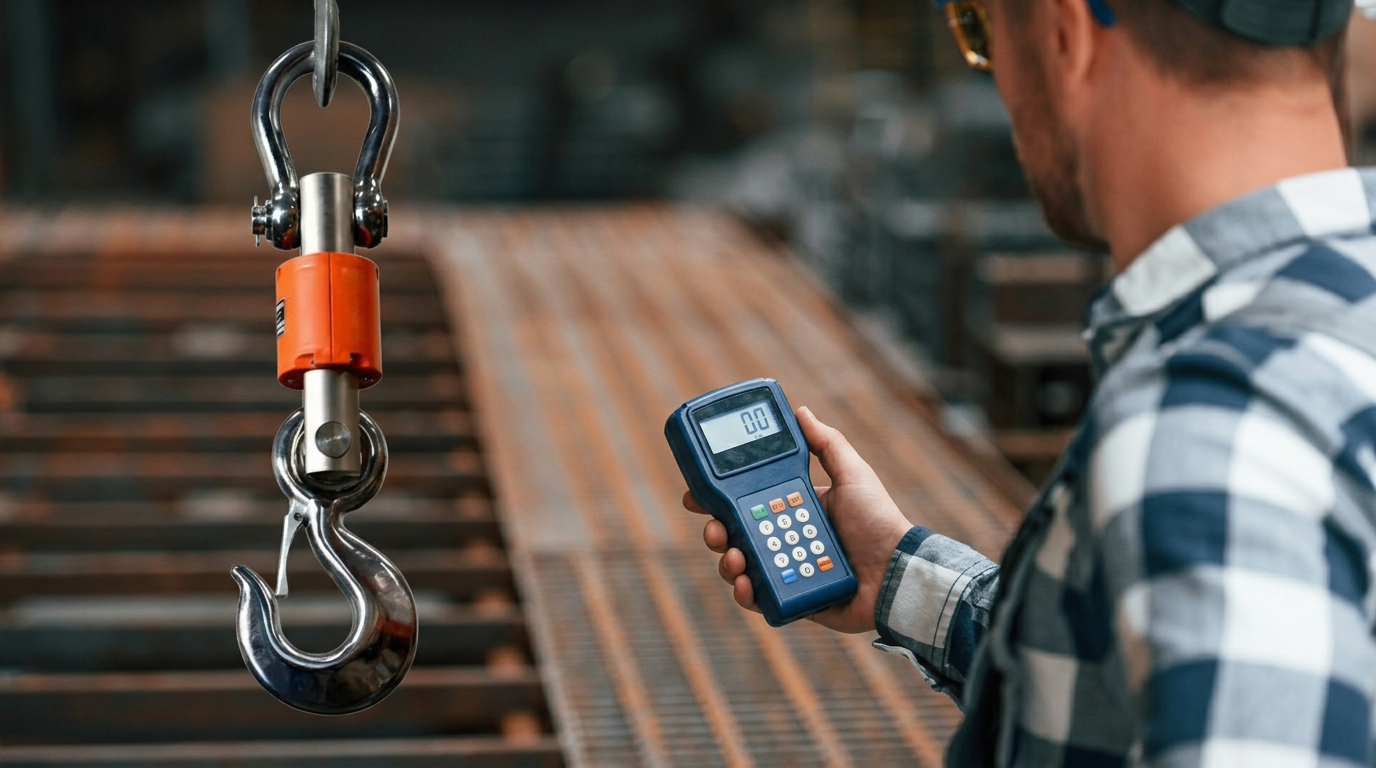

A crane scale is, at its core, a hanging load cell housed in a rugged enclosure with shackles or hooks at top and bottom and an integrated or remote digital indicator. The scale is suspended from the crane hook, and the load is suspended from the scale. As the lift takes the load off the ground, the load cell registers tension and converts it into a weight reading displayed locally on the scale, on a wireless handheld remote, or transmitted to a centralized indicator or computer system.

That architecture sounds simple, but the engineering tolerances are demanding. The load cell must hold accuracy through dynamic loading as the load swings, accelerates upward at the start of the lift, decelerates as the operator releases the hoist control, and oscillates while suspended. The enclosure must withstand the harsh environments crane scales are routinely used in, from foundry heat to scrap yard impact. The communications link must be reliable across the height of the lift and through the structural steel of most industrial buildings. The better crane scales address all of these with internal damping algorithms, hermetically sealed load cells, and ruggedized wireless protocols designed specifically for industrial RF environments.

Where crane scales fit best

Crane scales replace floor scales in any workflow where the load is already lifted, will be lifted, or is too unwieldy to set down on a platform. Steel service centers use crane scales to weigh coils on overhead bridge cranes for inbound material verification and outbound shipping documentation. Scrap operations use them to weigh charge baskets and bundles on the way into a melt furnace or rail car. Foundries weigh ladles. Aerospace and heavy fabrication shops weigh sub-assemblies during build sequences. Warehouses with jib cranes use them to weigh oversized parts that cannot be palletized.

The common thread is that crane scales eliminate the double-handling step of placing a load on a floor scale, weighing it, and re-lifting it. For operations measuring throughput in lifts per hour rather than transactions per day, that elimination is significant. A bridge crane that no longer needs to traverse to a floor scale between picks can complete its cycle measurably faster, and the data captured on every lift becomes available to downstream systems automatically.

Capacity, safety factor, and the difference between rated and working load

Specifying capacity on crane scales requires more care than on a floor scale because the consequences of overloading are more severe. A floor scale that is overloaded may damage its load cells or skew its calibration. A crane scale that fails under load drops the load. For that reason, crane scales are specified with rated capacity at typically 200 to 500 percent of the working load limit, and operators are trained to specify the working load limit, not the rated capacity, as the maximum they will actually lift.

A 10,000-pound rated crane scale should not be used to lift 10,000 pounds. Depending on the manufacturer's published safety factor, it may be appropriate for lifts up to 5,000 or 6,000 pounds in regular service. Selleton's product specifications include both the rated capacity and the recommended working load limit, along with the safety factor used in the engineering calculation. Buyers should verify those numbers against the worst-case lifts in their operation and choose the rated capacity that places the working load comfortably within tolerance.

Certification and legal-for-trade hanging scales

Crane scales can be NTEP-certified and legal for trade, and many of the highest-volume applications, scrap yards in particular, require legal-for-trade certification because the weighing event determines payment to the customer or carrier. Selleton supplies NTEP-certified hanging scales across the most common capacities, with the documentation required by state weights and measures authorities to register and seal the device for commercial use. Selecting the right NTEP class and e-value for the application requires the same care as on any other scale, and our consultants work through that with buyers before quoting.

For applications that do not require legal-for-trade certification, internal lift verification and process weighing in particular, the certification requirement is lower but the accuracy requirement may still be high. Selleton supplies high-accuracy industrial crane scales that are not NTEP-certified but deliver tolerances well within the requirements of internal quality and process control workflows.

Wireless indicators, integration, and the smart crane scale

The most productive operations no longer treat a crane scale as a standalone display. They treat it as a wireless data source that feeds tickets, work orders, and inventory systems directly from the hook. Modern crane scales support wireless transmission to handheld remotes, ticket printers, and increasingly to network indicators that push readings into ERP, WMS, or yard management platforms. A scrap yard can capture the weight of a charge basket and write it directly to a load ticket associated with the inbound truck. A steel service center can capture the weight of a coil and write it to a finished goods record without any manual entry.

Selleton's smart crane scale options support all of those workflows. Our engineering team configures wireless protocols for the RF environment, designs ticket templates to match existing documentation, and builds custom integrations into operating systems when off-the-shelf configurations do not match. For operations planning a digitization roadmap, specifying crane scales with integration capability from the start is far less expensive than retrofitting it later.

Environment, enclosure, and durability

Crane scales live in environments that destroy lesser equipment. Heat from foundry operations, dust from grinding and cutting, impact from swinging loads, and electrical noise from welding operations all attack hanging scales continuously. Specifying for environment means selecting enclosures rated for the worst-case conditions. Hermetically sealed load cells, IP-rated electronics, heat-shielded enclosures for hot-metal work, and reinforced shackle and hook assemblies are not optional features for severe-duty applications. Selleton's commercial-grade construction philosophy assumes the worst case and specifies up from there, and our consultants will not quote a scale that is underspecified for the environment a customer describes.

Safety, OSHA compliance, and rigging considerations for crane scales

Crane scales are part of a lifting system, and the lifting system as a whole must comply with the Occupational Safety and Health Administration rules governing overhead and gantry cranes and slings. OSHA Subpart H and the consensus standards it references establish requirements for working load limits, inspection schedules, marking, and operator training that apply to the crane scale as a component of the lift, not just to the crane itself. The crane scale's rated capacity, working load limit, and inspection history must be documented and available to the operator and to any inspector who reviews the lifting equipment.

The shackle and hook assemblies at top and bottom of the crane scale also fall under rigging standards. The shackles must be rated for the working load, marked with their working load limit, and inspected on the same schedule as other rigging hardware. Operators should verify before each lift that the scale is rated for the load, that the shackles are appropriate for the connection geometry, and that the hook latches are functional. Selleton's crane scale documentation includes the working load limit, the shackle ratings, and the inspection points that customers should incorporate into their rigging inspection program.

Industry applications and configurations for crane scales

Crane scales appear across nearly every heavy industry where overhead handling is part of the workflow. In steel and metal service centers, crane scales weigh coils, plate, and structural sections as they move between storage and processing. In foundries and forge shops, crane scales weigh ingots, billets, and finished forgings. In scrap and recycling, crane scales weigh charge baskets, bundles, and individual loads on the way into shredders, furnaces, or rail cars. In aerospace and heavy fabrication, crane scales weigh sub-assemblies during build sequences for weight-critical applications.

In shipping and marine, crane scales weigh containers, cargo, and bulk loads during loading and unloading. In warehousing with overhead jib cranes, crane scales weigh oversized parts that cannot be palletized. In agricultural cooperatives, crane scales weigh bags and totes of seed, fertilizer, and chemicals. In utility and infrastructure work, crane scales weigh transformers, switchgear, and other heavy equipment during installation and removal. Each application brings specific capacity, environment, and integration considerations, and Selleton's lineup includes configurations engineered for each.

Service, calibration, and the working life of a crane scale

A crane scale that holds calibration for a decade is the rule, not the exception, when the equipment is specified correctly and serviced on schedule. The scale should be calibrated at installation, sealed by an authorized service provider if it is used for legal-for-trade transactions, and re-calibrated on the interval the state weights and measures authority requires. For internal-use crane scales, the calibration interval is typically annual, though high-volume or high-stakes applications may justify more frequent verification.

Selleton's service network handles crane scale calibration on-site, which is essential because crane scales are difficult to remove from service. The service provider verifies the calibration against certified test weights, adjusts as required, and reseals the device. Between calibration visits, operators should perform a daily zero check and a periodic test-weight check using known reference loads available in the operation. The combination of scheduled calibration and operator verification keeps the scale in tolerance through years of working service.

Specify the right crane scale the first time

The right crane scale matches the lift weight, the lift cycle, the environment, the certification context, and the data integration requirements of the actual workflow. The wrong crane scale either fails prematurely under load or fails to provide the data that turns lifts into useful records. Selleton's consultants and engineers work through that framework on every quote because the answer shapes the configuration meaningfully.

If you are evaluating crane scales for scrap, steel, foundry, fabrication, or warehouse overhead handling, call 844-735-5386, request a quote, or explore Selleton's hanging crane scale and hoist collection to see capacities and configurations engineered for your environment.
