IP68 Stainless Steel Remote Displays for Harsh Environments
Key Highlights:
-
Models:
• LaserLT-60: 2.4 in (60 mm) digits – up to 75 ft viewing distance
• LaserLT-100: 4 in (100 mm) digits – up to 100 ft viewing distance
-
Multi-Function Display: Remote display or configurable NTEP-approved weight indicator.
-
High-Visibility Red LED: Six-digit, seven-segment LEDs with decimal or comma support.
-
Advanced Configuration: Supports Auto Learn and manual input setup for compatibility with most weight indicators.
-
Waterproof and Weather-Ready: IP68-rated 304 stainless steel enclosure with anti-condensation valve.
-
Adjustable Brightness: Six brightness levels via keypad for day/night optimization.
-
Integrated Keypad: Five-key waterproof keypad for configurable scale commands.
-
Flexible Mounting: Includes 15° angled wall mount; optional side brackets available.

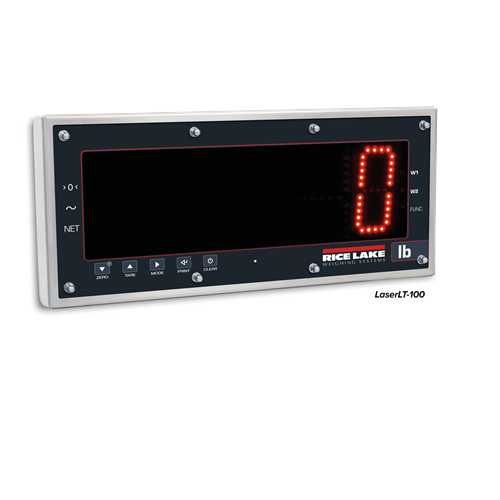

The LaserLT-60 and LaserLT-100 remote displays by Rice Lake are built to perform in the most challenging industrial environments. Whether used strictly as remote displays or configured as full-featured NTEP-approved weight indicators (when loaded with SCT-1100 firmware), these units offer unmatched flexibility and rugged reliability.
Featuring high-contrast LED digits in either 2.4-inch or 4-inch heights, these displays deliver crisp readability up to 100 feet—even in outdoor, wet, or washdown settings. The 304 stainless steel IP68 enclosure, complete with an anti-condensation air valve, makes these displays ideal for food processing plants, shipping yards, outdoor truck scales, and more.
A built-in five-key keypad allows local control, while RS-232 and RS-485 communication ports ensure smooth integration with most indicators. Whether wall-mounted using the included bracket or side-mounted for customized setups, the LaserLT displays fit into any workflow with ease.
Specifications Table:
| Specification |
LaserLT-60 |
LaserLT-100 |
| Digit Size |
2.4 in (60 mm) |
4 in (100 mm) |
| Viewing Distance |
75 ft (25 m) |
100 ft (30 m) |
| Display Type |
6-digit, 7-segment red LED |
6-digit, 7-segment red LED |
| Material / Rating |
304 Stainless Steel / IP68 |
304 Stainless Steel / IP68 |
| Power Supply |
110–240 VAC / 12–24 VDC |
110–240 VAC / 12–24 VDC |
| Com Ports |
RS-232, RS-485 |
RS-232, RS-485 |
| Input Format |
Auto Learn or configurable, 1200–115200 baud |
Auto Learn or configurable, 1200–115200 baud |
| Brightness Levels |
6 levels (keypad adjustable) |
6 levels (keypad adjustable) |
| Temperature Range |
-40 °F to 120 °F (-40 °C to 49 °C) |
-40 °F to 120 °F (-40 °C to 49 °C) |
| Weight |
10 lb (4.5 kg) |
10 lb (4.5 kg) |
| Mounting Options |
Wall mount (included), optional side bracket |
Wall mount (included), optional side bracket |
| Indicator Capability |
Configurable as SCT-1100 weight indicator |
Configurable as SCT-1100 weight indicator |
| Warranty |
One-year limited |
One-year limited |

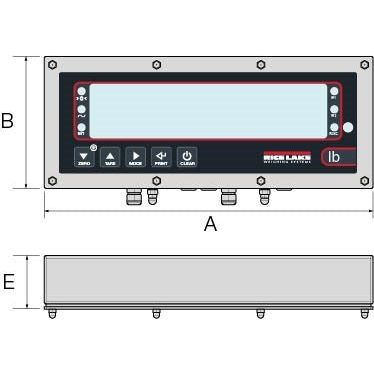

Physical Dimensions:
LaserLT-60
• Width: 16.14 in (410 mm)
• Height: 6.50 in (165 mm)
• Depth: 3.03 in (77 mm)
LaserLT-100
• Width: 16.93 in (430 mm)
• Height: 7.28 in (185 mm)
• Depth: 2.52 in (64 mm)

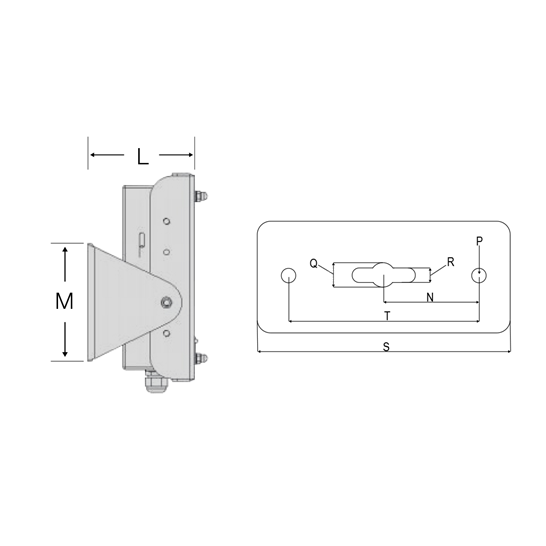

(Optional side bracket and mounting hole dimensions available upon request)
Optional Features:
-
SCT-1100 firmware for indicator conversion
-
Side mounting brackets
-
Multi-cell connectivity with summing (up to 4 load cells)
-
Up to 10,000 divisions or multi-range
Built to withstand the toughest environments—LaserLT-60 and LaserLT-100 deliver accuracy, clarity, and durability.
Perfect for truck scales, washdown areas, and industrial facilities, these IP68-rated remote displays are ready for the job. Get in touch today to configure your model or request a quote!
