iQUBE²® Digital Diagnostic Junction Box | Rice Lake

Smart Diagnostics for Smarter Weighing

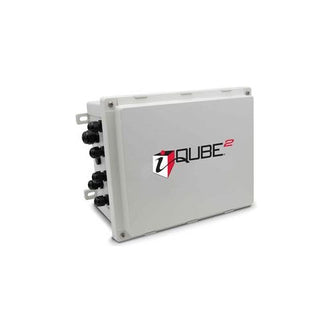

The iQUBE²® Digital Diagnostic Junction Box transforms traditional analog load cell systems into intelligent digital networks. Designed for high-performance weighing applications, iQUBE² provides fast, detailed diagnostics and unmatched system control. From truck and railroad scales to hopper and multi-channel systems, this innovative junction box ensures uninterrupted performance with built-in load cell emulation and advanced error monitoring.

Key Features

• Four A/D Channels per Board
  Supports up to four boards (16 channels total) for one large platform or multiple scale systems.

• Real-Time Diagnostics
  Automatically checks for load cell drift, noise, overload, underload, zero reference issues, and balance.

• Visual Status Indicators
  Onboard bi-color LEDs display system health and communication status at a glance.

• Load Cell Emulation
  Compensates for a failed load cell to keep the system running until service is performed.

• Cal-Match® Auto Calibration
  Automatically trims and calibrates the system in a single pass with test weights.

• Multiple Communication Options
  Standard RS-232/RS-485, with optional Ethernet TCP/IP, USB, fiber optic or wireless TCP/IP.

Applications

• Truck and railroad scales

• Tank and hopper scales

• Floor and multi-channel scales

• Dosing and batching systems

Enhanced Control and Performance

By evaluating and comparing data from each connected load cell, iQUBE² detects inconsistencies before they become critical issues. Ideal for high-speed batching operations and precision-driven environments, this diagnostic junction box reduces downtime, protects productivity, and simplifies maintenance.
