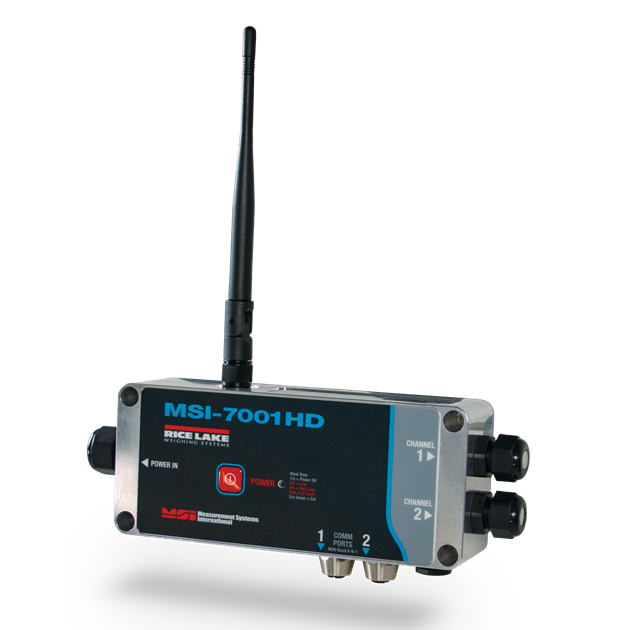

TranSend™ MSI-7001HD Wireless Load Cell Interface System
Original price
$1,475.00
-
Original price
$1,725.00
Original price
$1,523.75
$1,475.00
-
$1,725.00
Current price
$1,523.75
| /
Key Highlights
Works with any digital weight indicator
Excitation provided by transmitter, not the indicator
Individually paired transmitter and receiver sets
IP68-rated milled aluminum enclosure for harsh environments
Full duplex RS-232 serial communication
Available in single or multi-channel models
Built-in load cell fault detection and compensation
Reliable 2.4 GHz DSSS (802.15.4) communication
Standard antenna included with articulated mount
The MSI-7001HD TranSend is a high-performance wireless load cell interface system designed to replace traditional hardwired junction boxes in industrial weighing setups. Whether used in overhead cranes, livestock scales, tank weighing, or high-capacity platforms, TranSend offers seamless wireless integration while maintaining accuracy and reliability.
Instead of relying on physical conduits—prone to damage and expensive repairs—TranSend provides an elegant wireless solution using direct sequence spread spectrum (DSSS) 2.4 GHz RF communication. It is ideal for indoor or outdoor environments and transmits reliably up to 300 feet line-of-sight. For even greater distances, customized solutions are available upon request.
The rugged IP68 milled aluminum enclosure makes it suitable for wet or dusty environments, while its multi-channel models offer enhanced functions like relay outputs, audible alarms, and smart junction box behavior. In case of a load cell failure, TranSend auto-compensates and sends alerts—ensuring minimal downtime.
Compatible with MSI-8000, MSI-8000HD, and virtually any RS-232 or RS-485 based indicator or device, the MSI-7001HD is a future-ready wireless bridge for your weighing systems.
Specifications
Feature
Details
Power Options
5–6 VDC, 7–36 VDC, 9–36 VDC, or 85–265 VAC
Excitation Voltage
Transmitter: +4.8 VDC – Supports up to 16 × 350Ω or 32 × 700Ω load cells
RF Frequency
2.4 GHz DSSS (802.15.4)
Antenna Type
1/2 wave 2dBi articulated (reverse polarity SMA jack)
Range
100 to 300 ft (typical, line-of-sight)
Communication
Full duplex RS-232
Protection Features
RFI, EMI, and ESD circuit protection
Operating Temp.
-40 °F to 185 °F (-40 °C to 85 °C)
Enclosure
IP68 milled aluminum
Additional RF Options
Wi-Fi, FHSS
Dimensions
Not specified
Weight
<6 oz (<170 g)
Warranty
One-year limited
Say goodbye to damaged conduits and limited range. Upgrade to the MSI-7001HD TranSend Wireless Load Cell Interface and experience unmatched flexibility, reliability, and peace of mind in your industrial weighing operations.
Order now to modernize your scale system—or contact us for expert guidance on configuring your ideal wireless weighing setup.
