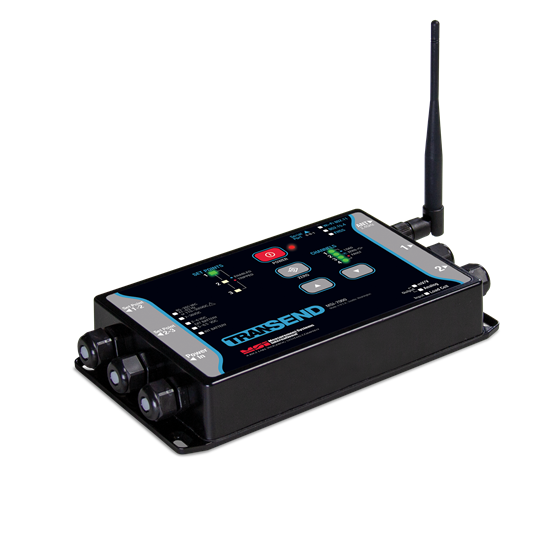

TranSend MSI-7000 Wireless Load Cell Interface System
Original price
$1,293.75
-
Original price
$1,868.75
Original price
$1,293.75
$1,293.75
-
$1,868.75
Current price
$1,293.75
| /
Key Highlights
Wirelessly transmits load cell data up to 300 ft
Compatible with all standard digital weight indicators
Transmitter powers load cells independently
Interference-free paired transmitter/receiver set
Includes RS-232 serial communication cable
Durable IP68-rated milled aluminum enclosure
Optional 7 to 36 VDC input and antenna selections
Supports Wi-Fi, FHSS, and 802.15.4 communication protocols
The TranSend™ MSI-7000 Wireless Load Cell Interface System is a robust and reliable wireless solution for transmitting load cell data in industrial weighing environments. Designed to replace traditional wired conduit, this system helps reduce maintenance costs and downtime caused by cable damage or environmental exposure.
From overhead cranes and livestock platforms to tanks and heavy-duty weigh stations, the TranSend system efficiently converts analog load cell signals and transmits them to a digital indicator. Its fully paired transmitter and receiver sets ensure secure, interference-free communication. The transmitter even provides excitation power to the load cells—allowing compatibility with virtually any digital weight indicator including MSI-8000, MSI-8000HD, PLCs, PCs, and more.
With a rugged IP68 aluminum enclosure, the MSI-7000 is built for both indoor and outdoor applications in harsh conditions, offering a line-of-sight range of up to 300 feet. Optional configurations allow for multi-channel expansion, relay contacts, audible alerts, and smart junction box functionality. In the event of a load cell failure, the device can automatically detect and compensate, ensuring uninterrupted operation.
This wireless interface system delivers precise, real-time weighing data while eliminating the cost and hassle of traditional wiring systems.
Specifications
Specification
Details
Power Input
5 to 6 VDC or 85 to 265 VAC
Excitation Voltage
+4.8 VDC for up to 16 × 350Ω or 32 × 700Ω load cells
Antenna
1/2 wave 2dBi articulated (standard)
Frequency
2.4 GHz direct sequence spread spectrum (802.15.4)
Effective Range
100 to 300 ft (line of sight)
Communication Port
RS-232 (full duplex)
Circuit Protection
RFI, EMI, ESD protection
Operating Temperature
-40 °F to 185 °F (-40 °C to 85 °C)
Enclosure Rating/Material
IP68, milled aluminum
Additional RF Options
Wi-Fi, FHSS, 802.15.4
Warranty
One-year limited
Streamline your weighing operations with the MSI-7000 TranSend™ Wireless Load Cell Interface—a cutting-edge solution to eliminate bulky conduit and simplify load cell integration.
Contact us SellEton Scales today for expert guidance or to request a custom quote tailored to your setup.
