Eliminates headroom loss in load block integration
Low-profile donut-style design for hook mount
Custom-fit for crane hook assemblies
Off-axis compensation for rotating hooks
0.10% accuracy of rated capacity
IP67 rated zinc-plated 4340 alloy steel construction
Interfaces with wireless RF transmitters
Available in multiple capacities from 10,000 lb to 200,000 lb
The MSI Shear Web Load Cell is purpose-built for crane applications where traditional load cells cannot be integrated due to headroom restrictions. This donut-style low-profile sensor is mounted above the trunnion of the crane hook block, allowing seamless load monitoring without increasing lifting height.
Its off-axis compensation ensures accurate readings even when the hook rotates or shifts under load. Made from high-strength 4340 alloy steel, zinc plated for corrosion resistance, and rated IP67, it’s a rugged and reliable solution for harsh industrial environments.
Ideal for integration with wireless RF transmitters, the load cell provides real-time load data to MSI indicators or remote displays. With multiple models ranging from 10,000 lb to 200,000 lb, each shear web cell can be custom-fit to your crane’s hook specifications for optimal performance.
This load cell is a top choice for industries seeking permanent, precise, and compact weighing integration in overhead crane systems.
Specifications
Specification
Details
Accuracy (Static Load)
0.10% of rated capacity
System Accuracy
0.5 to 1% of rated capacity
Material
4340 alloy steel
Finish
Zinc plated
Environmental Rating
IP67
Electrical Resistance
700 ohm

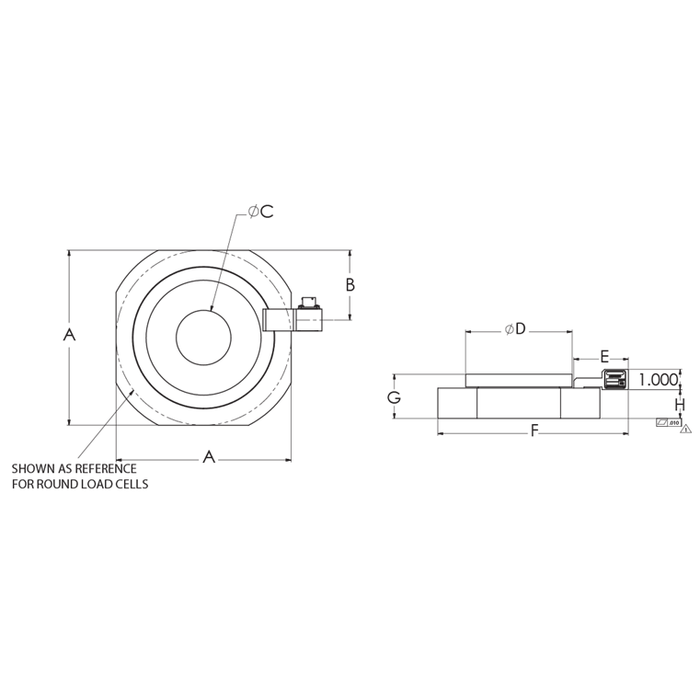

Model Dimensions
Part #
Capacity (lb)
A
B
C (+0.005 -0.000)
D
E
F
G
H
Required Hook Shank Diameter (+0.000, -0.005)
160651
10,000
3.500 in
1.350 in
1.005 in
2.450 in
1.880 in
4.905 in
1.500 in
1.000 in
1.000 in
163595
20,000
6.000 in
2.500 in
1.505 in
3.500 in
2.443 in
7.405 in
1.750 in
1.250 in
1.500 in
163596
40,000
7.500 in
3.150 in
2.005 in
5.000 in
2.580 in
8.905 in
2.000 in
1.375 in
2.000 in
163829
60,000
8.000 in
3.190 in
2.505 in
5.250 in
2.695 in
9.405 in
2.188 in
1.500 in
2.500 in
163597
80,000
8.500 in
3.650 in
3.505 in
5.750 in
2.680 in
9.905 in
2.313 in
1.500 in
3.500 in
163598
100,000
9.125 in
3.873 in
4.005 in
7.000 in
2.382 in
10.530 in
2.668 in
1.875 in
4.000 in
159550
120,000
9.125 in
3.873 in
4.005 in
7.000 in
2.382 in
10.530 in
2.813 in
2.000 in
4.000 in
163599
160,000
16.000 in
7.030 in
6.005 in
14.500 in
2.955 in
17.405 in
4.625 in
2.500 in
6.000 in
163600
200,000
16.000 in
7.030 in
6.005 in
14.500 in
2.955 in
17.405 in
5.125 in
3.000 in
6.000 in
