iDimension® LTL/LTL XL Pallet Dimensioning System

Original price $60,944.25 - Original price $70,667.50
Original price
$60,944.25
$60,944.25 - $70,667.50
Current price $60,944.25

Key Highlights

  • Measures pallets up to 144 × 96 × 96 in (LTL XL)

  • Legal for Trade certified – NTEP, OIML, EU MID

  • Captures dimensions in under 2 seconds

  • 360° forklift access for easy placement

  • Color camera with bounding box image

  • Optional LED light grid, second camera & operator display

  • Solid-state design – no moving parts

  • Instant data/image transfer to ERP/WMS with iDimension SS

  • Five-year sensor warranty, two-year system warranty

  • Operates in any indoor lighting conditions

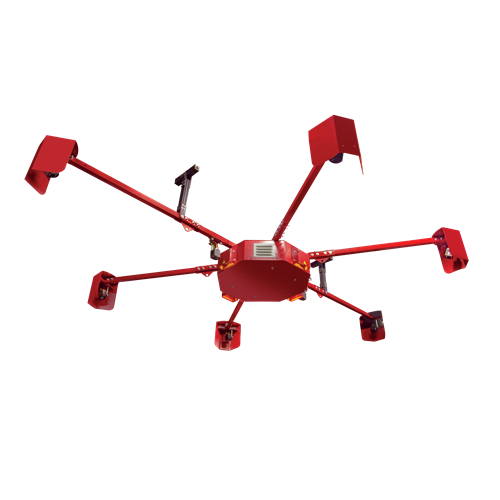

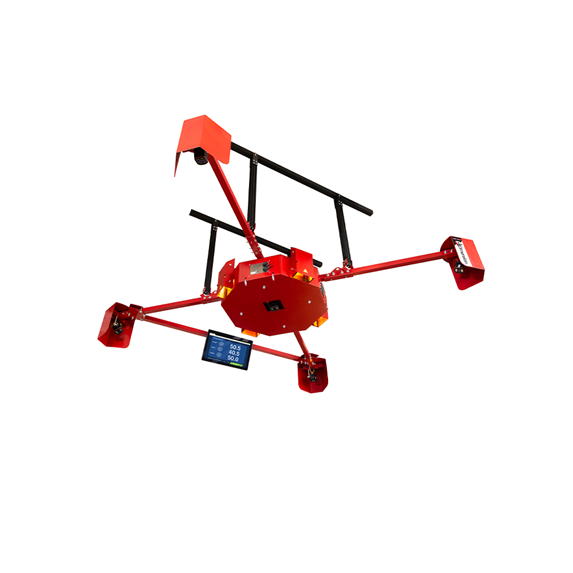

The iDimension® LTL and LTL XL by Rice Lake Weighing Systems are advanced pallet dimensioners designed to boost speed, accuracy, and efficiency in LTL shipping environments. These Legal for Trade systems provide instantaneous cubic dimensioning and image capture of palletized freight, eliminating manual measurement errors and improving claims defense.

Ideal for logistics centers, warehouses, and shipping docks, the iDimension LTL Series uses advanced color cameras and solid-state technology to measure freight within 2 seconds. Its 360° forklift access, minimal setup, and real-time operator feedback make it a plug-and-play solution that integrates seamlessly into your existing floor layout.

With support for Drop & Clear or Stop & Go operations, and configurations for standard and XL pallets, the iDimension LTL series helps ensure freight compliance, billing accuracy, and reduced chargebacks—while also documenting shipment condition with every scan.

Available Models & Measuring Ranges

Model Minimum Dimensions Maximum Dimensions
LTL Drop & Clear 12 × 12 × 12 in (30 × 30 × 30 cm) 96 × 96 × 96 in (244 × 244 × 244 cm)
LTL XL Drop & Clear 12 × 12 × 12 in (30 × 30 × 30 cm) 144 × 96 × 96 in (365 × 244 × 244 cm)
Stop & Go 12 × 12 × 12 in (30 × 30 × 30 cm) 72 × 72 × 84 in (183 × 183 × 213 cm)

Note: Minimum pallet height: 4.25 in (108 mm). Requires a ceiling height of 12.75 ft minimum.

Why Choose iDimension LTL or LTL XL?

  • Speed & Simplicity: Scans complete in 0.5 to 2 seconds, with minimal training required

  • Claims Protection: Bounding box image capture helps defend against damage disputes

  • Rugged Reliability: Designed with industrial-grade components for harsh dock environments

  • Compliance Assured: Fully certified under NTEP, OIML, MID, CE, FCC

  • Smart Automation: Easily integrates with WMS, ERP, and TMS platforms

  • Optional LED grid helps drivers align pallets—no floor painting needed

  • Instant operator feedback via optional 21.5" touchscreen display

Connectivity & Integration

Feature Details
Power Supply 110–240 VAC (25 ft cable included)
Data Ports Ethernet TCP/IP, USB, RS232
Software iDimension SS, WMS/ERP compatible
Activation Stop & Go trigger, Drop & Clear
Lighting Conditions All indoor environments supported
Temperature Range 14 °F to 104 °F (-10 °C to 40 °C)
Humidity 0–90% non-condensing

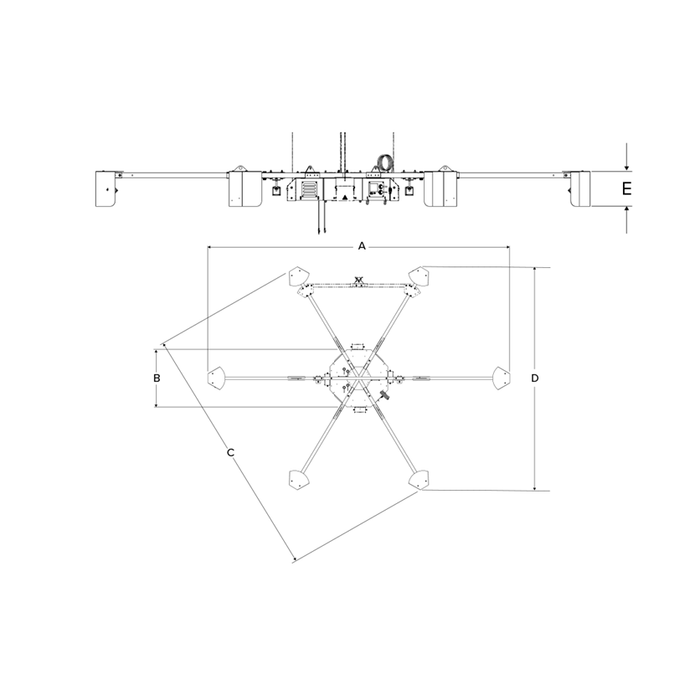

Physical Dimensions

Component Inches Millimeters
A 178.28 4528
B 34.00 864
C 150.44 3821
D 131.83 3348
E 12.64 321

Certifications & Approvals

  • NTEP (19-076)

  • OIML (R129-2000-A-NL1-24.04)

  • EU MID (T12563)

  • FCC

  • CE

Ideal Applications

  • LTL freight centers

  • Shipping warehouses

  • Palletized freight processors

  • Logistics companies

  • Distribution hubs with high parcel throughput

Take control of your freight dimensioning with iDimension® LTL or LTL XL.
Prevent costly re-bills, automate documentation, and ensure compliance with every shipment. Whether you're processing oversized freight or routine pallets, this advanced system delivers speed, precision, and accountability.

Contact us today to request a quote or discover the right iDimension system for your operation.
