Fault Tolerance – Load cell failure compensation with service warnings
Smart RF Options – Includes Wi-Fi, FHSS, and 802.15.4 configurations

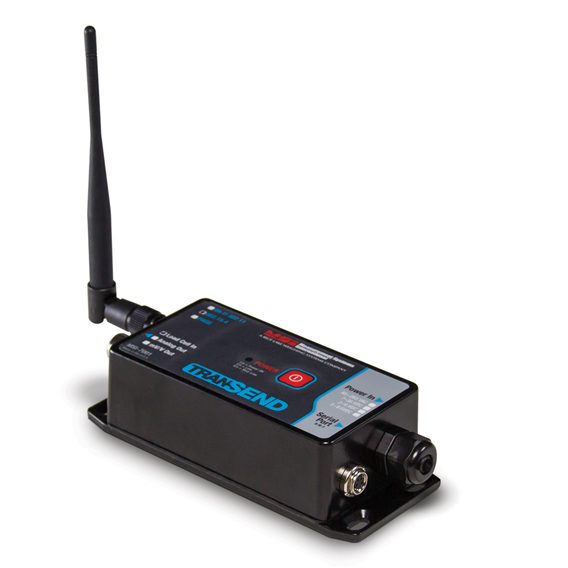

The TranSend™ MSI-7001 by Rice Lake is a robust and advanced wireless load cell interface system designed to simplify communication between load cells and digital weight indicators. Built for reliability and flexibility, it eliminates the need for expensive and failure-prone wiring and conduit systems in demanding weighing environments such as tank weighing, crane operations, and livestock applications.
The MSI-7001 transmitter not only supplies excitation power to the load cells but also wirelessly transmits the signal to the receiver, making the system completely independent of the indicator's power supply. Its versatile design is compatible with MSI-8000/HD, other digital indicators, PCs, and PLCs.
With the option to upgrade to multi-channel models, TranSend MSI-7001 provides smart junction box capabilities, audible alerts, and relay outputs. Built-in load cell fault detection and compensation ensures that weighing continues even when a load cell fails—keeping your workflow uninterrupted.
Backed by MSI’s engineering expertise and designed with industrial environments in mind, this system features rugged IP68 construction, wide operating temperature tolerance, and a reliable wireless range of up to 300 ft.
Specifications Table
Feature
Details
Power Options
5 to 6 VDC, 7 to 36 VDC, 85 to 265 VAC
Excitation Voltage
+4.8 VDC; 16 × 350 ohm or 32 × 700 ohm load cells
Wireless Frequency
2.4 GHz, Direct Sequence Spread Spectrum, 802.15.4
Effective Range
100 to 300 ft line-of-sight (longer range available upon request)
Communication Ports
Full duplex RS-232
Antenna
1/2 wave 2dBi, articulated
Circuit Protection
RFI, EMI, ESD protection
Operating Temp
-40 °F to 185 °F (-40 °C to 85 °C)
Enclosure
IP68, milled aluminum
Additional RF Options
Wi-Fi, FHSS, 802.15.4
Warranty
One-year limited
Eliminate conduit challenges and optimize your industrial weighing with the MSI-7001 TranSend. This wireless load cell interface system delivers exceptional accuracy, durability, and control—even in extreme environments. Speak to our experts or request a custom quote tailored to your weighing needs. Contact us!
