Key Highlights
-
Sends raw and analyzed weight data to the cloud
-
Real-time diagnostics and alert notifications via text or email
-
Connects up to four iQUBE² systems for advanced monitoring
-
Emulates failing load cells to prevent downtime
-
Supports IP cameras, sensors, auxiliary inputs for full system insight
-
Secure cloud dashboard with instant access to scale performance
-
Supports remote troubleshooting and technician notes
-
500 updates per second for unmatched accuracy
-
DIN-rail mounted, metal-housed industrial unit
-
UL, FCC, RoHS, CE compliant

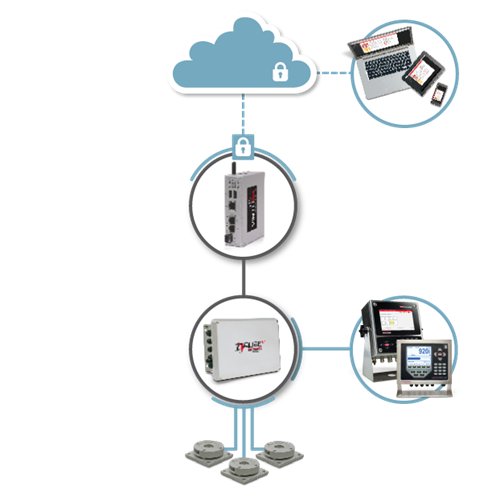

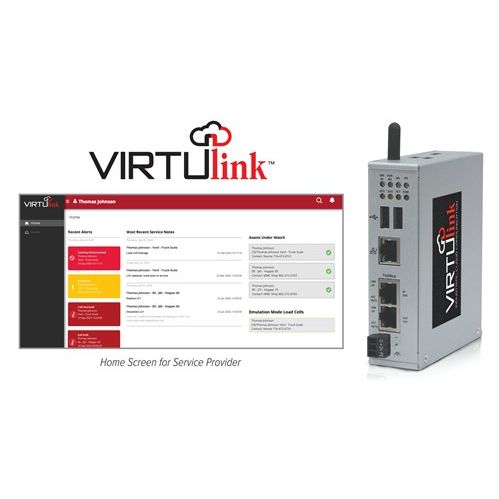

The VIRTUlink™ from Rice Lake is an advanced IoT-enabled scale monitoring and diagnostics platform designed to transform how industrial businesses track and maintain their weighing systems. Connecting up to four iQUBE² junction boxes, VIRTUlink captures real-time raw and analyzed scale data, sending it securely to the cloud where it becomes accessible via a powerful web-based dashboard.
With 500 cycles per second, VIRTUlink delivers instantaneous accuracy and reaction time, enabling you to catch drift, instability, or load cell failures before they impact your operations. A load cell emulation feature compensates for a faulty cell, preventing downtime until repair. The system supports alerts via SMS and email, giving your team immediate insight into urgent service needs or tolerance violations.
Ideal for facilities requiring maximum uptime, predictive maintenance, and remote diagnostics, VIRTUlink goes beyond just data logging—it becomes a proactive tool in your production efficiency, compliance, and service workflows.
Applications
-
Truck scale monitoring
-
Platform scale diagnostics
-
Remote industrial weighing control
-
Preventive maintenance for load cells
-
Data collection for operational audits
-
Automated system alerts and error tracking
Technical Specifications
| Category |
Specification |
| Communication |
Ethernet TCP/IP |
| Power Connector |
3-pin terminal block (3.5 mm) |
| Power Supply |
24 V DC ±6 V DC (Class 2 source, Over-voltage Category II) |
| Current Draw |
170 mA typical at 24 V DC |
| Operating System |
Security-hardened Linux |
| Display |
8 status LEDs |
| Real-Time Clock |
Capacitor buffered, 7-day backup, maintenance-free |
| Protocols (Ports) |
HTTP (80), HTTPS (443), MQTT (1883/8883), AMQP (5672/5671) |
| Environmental Rating |
IP20 (indoor use) |
| Operating Temp |
-4 °F to 140 °F (-20 °C to 60 °C) |
| Storage Temp |
-40 °C to 85 °C |
| Humidity |
10% to 95% RH, non-condensing (up to 95% @ 40 °C) |
| Mounting |
DIN rail (top hat rail mount) |
| Dimensions |
5.5 × 1.38 × 4.13 in (140 × 35 × 105 mm) |
| Weight |
0.89 lb (400 g) |
| Approvals |
UL E221530, FCC ID: 2ANEG0001, IC: 24152-0001, RoHS, CE |
Unlock the full potential of your weighing system with the VIRTUlink™ IoT Scale Monitoring System. From real-time performance tracking and diagnostics to automatic alerts and cloud-based dashboards, this solution ensures your operations stay efficient, proactive, and error-free.
Order VIRTUlink today or contact us to see how it can revolutionize your scale maintenance and uptime.
