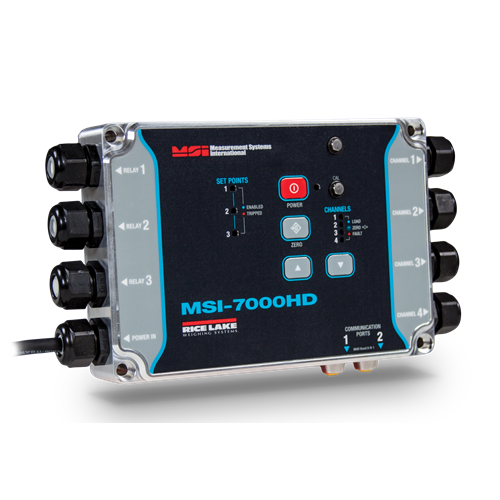

The TranSend™ MSI-7000HD Wireless Load Cell Interface System is a cutting-edge solution designed to streamline communication between load cells and indicators by removing traditional conduit altogether. Whether used in overhead, livestock, tank, or heavy-capacity weighing environments, TranSend provides a highly reliable and wireless communication pathway that transforms analog signals into digital data—delivering seamless transmission to a variety of receiving devices, including MSI indicators, PCs, PLCs, and other industrial systems.
Built inside a rugged IP68-rated milled aluminum housing, the TranSend system can operate in both indoor and outdoor environments with extreme temperature tolerances from -40 °F to 185 °F. With direct sequence spread spectrum technology at 2.4 GHz (802.15.4), it offers a wireless range up to 300 feet, with longer-range options available upon request.
For more complex setups, TranSend multi-channel models include features like up to three relays, audible alarms, and load cell failure detection with automatic compensation. This makes it a highly efficient and intelligent upgrade for industries requiring dependable, rugged, and high-performance weighing solutions.
TranSend™ Specifications
Feature
Details
Power Input
7 to 36 VDC, 9 to 36 VDC, or 85 to 265 VAC
Excitation Voltage
+4.8 VDC to load cells; supports 16 × 350Ω or 32 × 700Ω
Antenna
1/2 wave, 2dBi articulated (standard)
Communication Ports
Full duplex RS-232
Frequency
Direct sequence spread spectrum, 2.4 GHz, 802.15.4
Effective Range
100 to 300 ft (line of sight); extended range optional
Operating Temp
-40 °F to 185 °F (-40 °C to 85 °C)
Enclosure Material
Milled aluminum, IP68 rated
Circuit Protection
RFI, EMI, and ESD
Additional RF Options
Wi-Fi, 802.15.4, FHSS
Warranty
One-year limited
Eliminate conduit issues and experience true wireless efficiency. Request a quote today or contact us for expert consultation.
