Connects up to eight independent load cell channels
Backlit LCD for weight, calibration, configuration, and error display
Supports analog and digital communication protocols
Optional outputs: DeviceNet, Profibus, EtherNet/IP, PROFINET, Modbus TCP
DIN-rail mountable compact design for control panels
Real, theoretical, and linear calibration methods
Push-button or preset tare functions
Full-scale analog output (SCT-40AN) with zero setting and PLC correction
Three digital inputs and five configurable digital outputs
Supports ASCII and MODBUS RTU protocols
RS-232 or RS-485 communication options

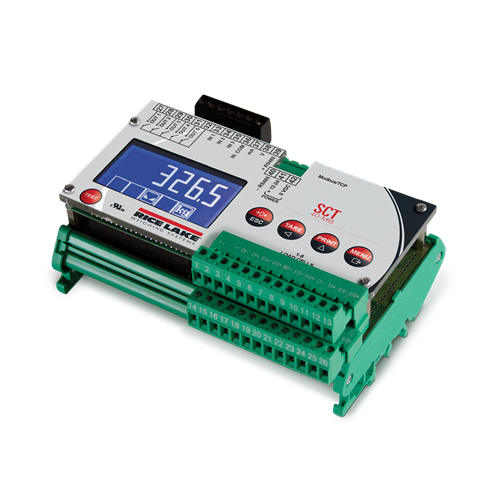

The Rice Lake SCT-40 Signal Conditioning Transmitter is a compact and powerful digital weight transmitter built for advanced industrial weighing systems. Designed to handle up to eight independent load cell channels, it provides reliable and accurate signal conversion for demanding applications.
The SCT-40 is engineered for versatility. Operators can view detailed weight data, configuration settings, calibration status, and error conditions on the high-visibility backlit LCD screen. Communication is seamless with support for RS-232, RS-485, and optional DeviceNet™, Profibus™, EtherNet/IP™, PROFINET, and Modbus TCP protocols.
This DIN-rail mountable unit is ideal for control panels and cabinet integrations, with full analog output support in the SCT-40AN version, offering output signals like 0–20 mA, 4–20 mA, 0–5 VDC, and 0–10 VDC. It features real, theoretical, and linearity-based calibration, as well as preset and push-button tare options for added flexibility.
Whether you're building a new weighing system or upgrading an existing one, the SCT-40 offers advanced diagnostics, efficient data communication, and rugged reliability for industrial use.
| Parameter | Details |
|---|---|
| Power Input | 12 to 24 VDC |
| Power Consumption | 5 W |
| Excitation Voltage | 5 VDC, 240 mA, up to 16 × 350 ohm load cells |
| Analog Signal Input | ±39 mV |
| Signal Sensitivity | 0.3 μV/graduation min, 1.0 μV/graduation recommended |
| A/D Sample Rate | 600 Hz |
| Internal Resolution | 16,000,000 counts |
| Display Resolution | 999,999 |
| System Linearity | ±0.01% full scale |
| Digital Inputs | 3 inputs (5–24 VDC) |
| Digital Outputs | 5 outputs (115 VAC/150 mA) |
| Analog Output (SCT-40AN) | Opto-isolated, 16-bit 0–20 mA, 4–20 mA (max 300 Ω) 0–10 VDC, 0–5 VDC (min 10 kΩ) |
| Communication Ports | RS-485 half duplex or RS-232 transmit-only |
| Protocols Supported | ASCII, MODBUS RTU, DeviceNet, Profibus, EtherNet/IP, PROFINET |
| Display | 128 × 64 pixel backlit LCD (60 × 32 mm viewable) |
| Controls | Five-key tactile keypad (Test, Zero, Tare, Menu, Navigation) |
| Dimensions (L × W × H) | 5.82 × 3.62 × 2.36 in (148 × 92 × 60 mm) |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Humidity | 85% RH non-condensing |
| Mounting | DIN rail (NEMA Type 1) |
| Weight | 1 lb (0.5 kg) |
| Warranty | One-year limited |
| Approvals | cULus Recognized |
Enhance your weighing system with the SCT-40 Signal Conditioning Transmitter from Rice Lake. With support for multiple load cell channels, digital and analog outputs, and advanced fieldbus integration, the SCT-40 is a robust solution for high-performance weighing environments.
