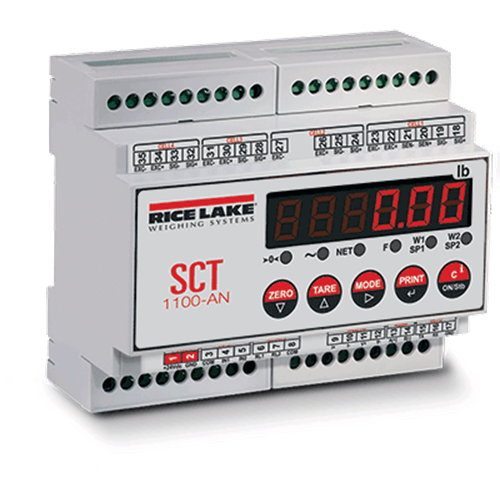

The Rice Lake SCT-1100 Signal Conditioning Transmitter is an efficient, compact solution for PLC-based weight measurement applications. Designed for multi-scale operations, it supports up to four independent scales or four load cell inputs, providing individual or summed weight data.
With advanced diagnostic capabilities, real-time data transmission, and easy configuration through a user-friendly interface, the SCT-1100 is ideal for industrial weighing applications, including batching, checkweighing, and process automation.
| Specification | Details | |
|---|---|---|
| Power Input | 12/24 VDC | |
| Power Consumption | 70 mA min to 100 mA max | |
| Excitation Voltage | 5 VDC, 120 mA, 8 × 350 ohm load cells | |
| Analog Signal Input Range | ± 39 mV | |
| Analog Signal Sensitivity | 0.3 μV/graduation (min) | |
| A/D Sample Rate | Four-channel A/D, 24-bit sigma-delta conversion, up to 200 conv./sec. auto select | |
| Resolution | Internal: 1,500,000 counts, Display: 800,000 | |
| Digital I/O | 2 inputs (12/24 VDC), 2 outputs (150 mA 48 VAC/150 mA 60 VDC) | |
| Serial Ports | Modbus RTU or ASCII selectable/bidirectional (1) RS-485 (for PC/weight repeater), (1) RS-232 (for PC/printer) | |
| Analog Output (if equipped) | Opto-isolated, 16-bit (0-20 mA, 4-20 mA, 0-5 VDC, 0-10 VDC) | |
| Annunciators | Net, center of zero, stability | |
| Display | Six-digit (10 mm), red LED | |
| Keys/Buttons | Five-key membrane panel (Zero, Tare, Mode, Print, C) | |
| Mounting | DIN rail mount (NEMA Type 4, plastic enclosure with clear cover and six PG9 cord grips) | |

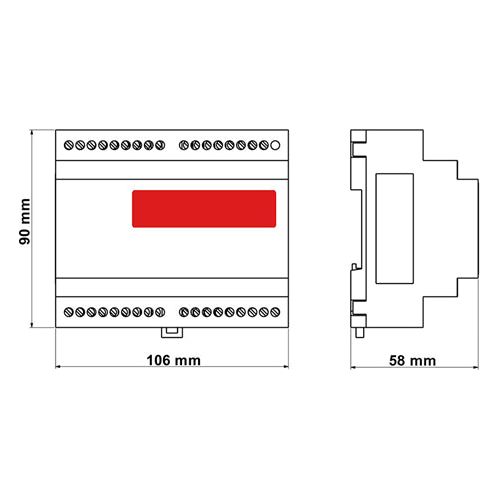

| Dimensions (L × W × H) | 4.17 × 3.54 × 2.28 in (106 × 90 × 58 mm) | |
| Operating Temperature | 5 °F to 104 °F (-15 °C to 40 °C) | |
| Humidity | 85% non-condensing | |
| Weight | 1 lb (0.5 kg) | |
| Warranty | One-year limited | |
| Approvals | NTEP 20-046, Measurement Canada AM-6165C, OIML R76/2006-A-GB1-19.17, UKCA Marked, cULus Listed |
The Rice Lake SCT-1100 is a powerful and compact weighing solution, offering multi-scale connectivity, real-time diagnostics, and seamless PLC integration. With high-precision weighing capabilities, multiple communication options, and a durable DIN rail-mountable design, it is the ideal transmitter for industrial automation and process control applications.
Upgrade your weighing system today! Contact us for more details or to place your order.
