Key Features:
-
High-visibility LED display with six 14-segment digits
-
USB port for direct PC connectivity
-
Ethernet TCP/IP with server/client modes
-
Built-in DIN-rail clips for easy panel mounting
-
Modular design allows separation of display and controller up to 250 ft (panel mount)
-
Expandable connectivity options (Fieldbus, relay board, dual serial output, 24-channel digital I/O)
-
20 configurable setpoints with latched/unlatched batch engine
-
Four onboard digital I/O channels for basic process automation
-
Configurable print formats (up to 1,000 characters)
-
Five-point linearization calibration for improved accuracy
- Multi-range and multi-interval weighing
- Local/remote operation
-
IP69K-rated stainless steel enclosure for harsh environments

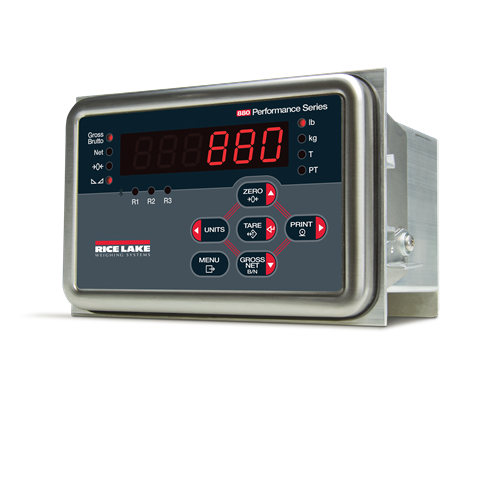

The Rice Lake 880/880 Plus Performance™ Series is a rugged, high-performance weight indicator and controller designed for industrial weighing, automation, and process control applications. Built for advanced connectivity, it features RS-232, RS-485, USB, and Ethernet TCP/IP for seamless system integration.
The 880 Series can be used in various applications such as batching, filling, vehicle weighing, and factory automation. Its configurable softkeys, user-friendly interface, and customizable print formats make it ideal for industries needing real-time weight monitoring and data recording.
With 20 setpoints and onboard digital I/O, it can be configured for automated weight-based process control. The optional Fieldbus connectivity, analog output, and relay board extend its capabilities, making it adaptable for a wide range of industrial operations.
880 Panel Mount vs. 880 Plus Universal Enclosure:
-

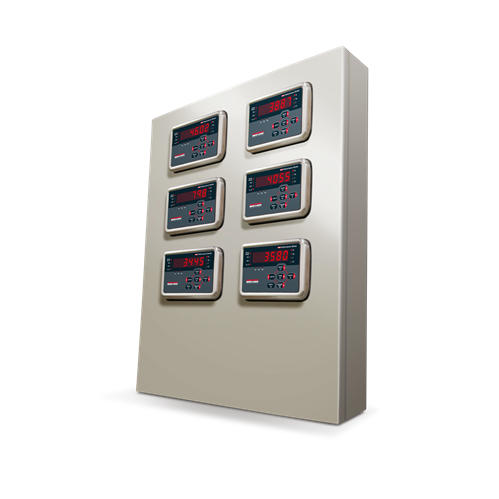

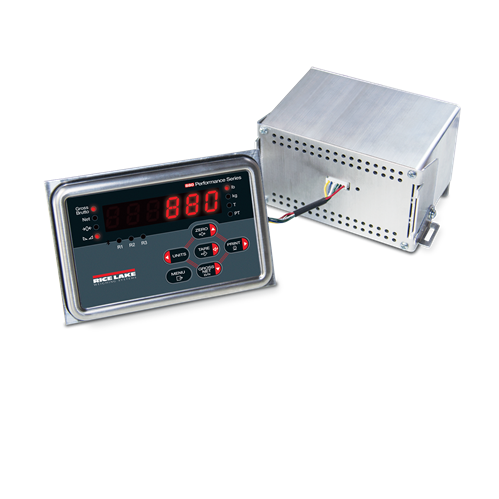

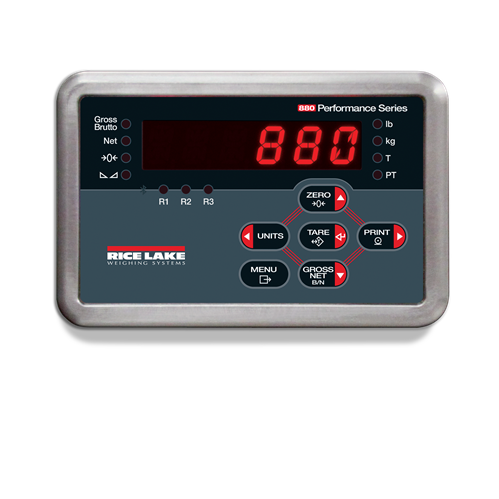

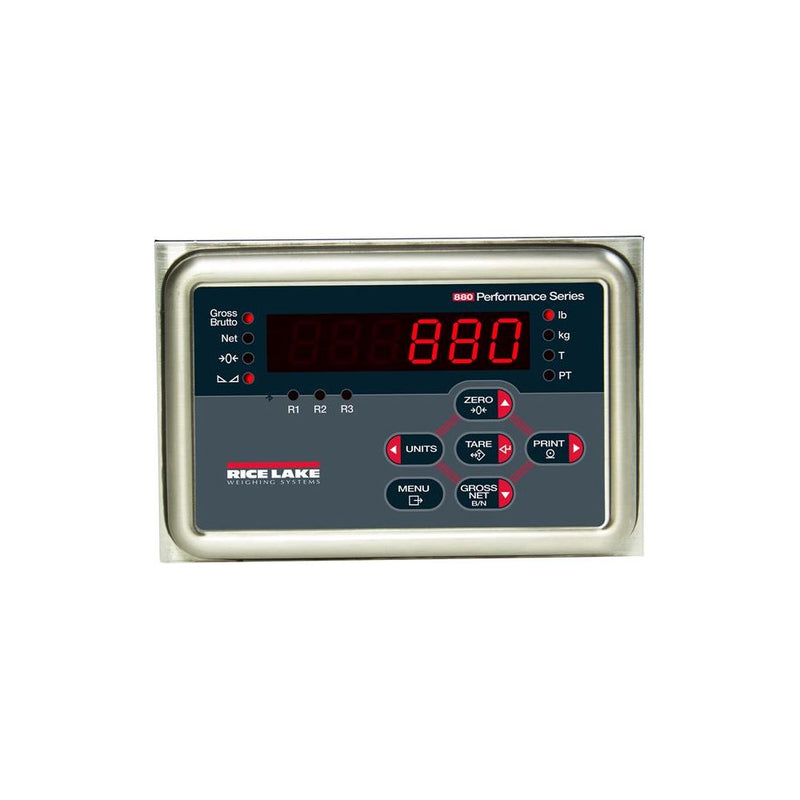

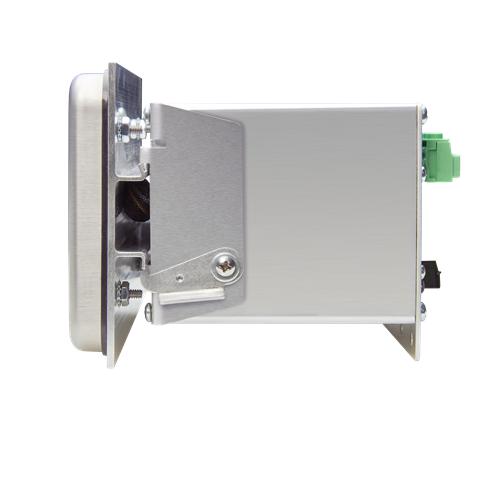

880 Panel Mount: Compact, modular design with built-in DIN-rail clips for easy integration into existing control panels. The controller and display can be separated for remote operation.
-

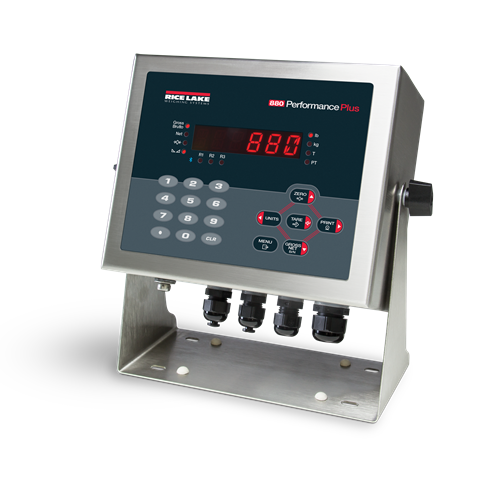

880 Plus Universal Enclosure: Larger stainless steel enclosure with an integrated numeric keypad for simplified operation and flexibility when a panel mount isn’t required.
Specifications:
| Specification |
|
Details |
| Power Input |
|
100 to 240 VAC, 50/60 Hz
12 to 24 VDC |
| Power Consumption |
|
AC: 15W
DC: 20W |
| Excitation Voltage |
|
10 VDC (±5 VDC), supports 16 × 350Ω or 32 × 700Ω load cells
|
| Analog Signal Input Range |
|
-45 mV to 45 mV |
| Analog Signal Sensitivity |
|
0.3 µV/graduation minimum at 7.5 Hz
1.0 µV/graduation recommended |
| A/D Sample Rate |
|
7.5 to 960 Hz, software selectable |
| Resolution |
|
Internal: 8,000,000 counts
Display: 999,999 counts |
| System Linearity |
|
±0.01% full scale |
| Digital I/O |
|
Four onboard I/O, expandable up to 24 channels |
| Optional Analog Output |
|
Voltage output: 0-10 VDC
Current output: 0-20 mA or 4-20 mA |
| Optional Relay Board |
|
Four-channel relay module (3A @ 115 VAC, 3A @ 30 VDC) |

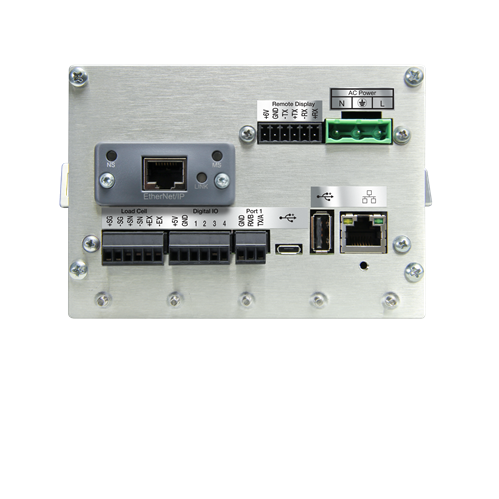

| Communication Ports |
|
Standard: RS-232 full duplex, RS-485 half duplex, USB 2.0, Ethernet TCP/IP
Optional: Fieldbus, dual serial output, 24-channel digital I/O |
| Annunciators |
|
Gross, net, center of zero, standstill, lb, kg, tare, preset tare |
| Display |
|
LED display, 0.56 in (14 mm), six-digit, 14-segment
|
| Keys/Buttons |
|
Membrane panel, tactile feel |
| Operating Temperature |
|
Certified: 14°F to 104°F (-10°C to 40°C)
Industrial: 14°F to 122°F (-10°C to 50°C) |
| Rating & Material |
|
Panel Mount: Stainless steel, NEMA Type 4X, Type 12, IP69K
Universal Enclosure: Stainless steel, IP69K
|
| Weight |
|
Panel Mount: 2.5 lb (1.2 kg)
Universal: 6.5 lb (2.9 kg) |
| Warranty |
|
Two-year limited |
| Approvals |
|
NTEP 13-080 Class III/IIIL, 10,000d
Measurement Canada AM-5931C
OIML R76/2006-A-NL1-18.23 Class III, 10,000d
EU Test Certificate TC8463
CE Marked
cULus Listed (Universal)
cULus Recognized (Panel Mount)
|

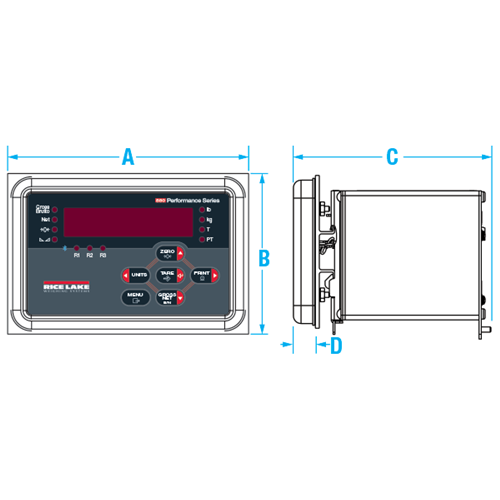

880 Panel Mount Dimensions:
| Measurement |
|
Value |
| A |
|
6.0 in (152 mm) |
| B |
|
4.0 in (102 mm) |
| C |
|
4.95 in (126 mm) |
| D |
|
0.58 in (14 mm) (Bezel Depth) |

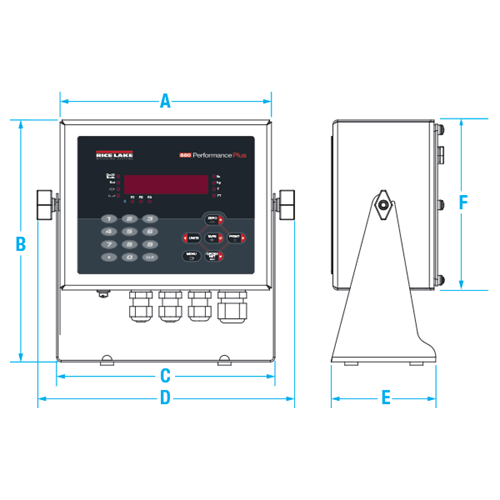

880 Plus Universal Dimensions:
| Measurement |
|
Value |
| A |
|
8.10 in (206 mm) |
| B |
|
9.38 in (235 mm) |
| C |
|
8.37 in (213 mm) |
| D |
|
9.87 in (248 mm) |
| E |
|
4.0 in (102 mm) |
| F |
|
6.5 in (165 mm) |
Why Choose the 880/880 Plus Performance™ Series?
The Rice Lake 880/880 Plus provides exceptional accuracy, advanced communication, and powerful automation capabilities, making it ideal for industrial weighing applications. Whether for batching, filling, truck scales, or process control, the 880 Series is engineered to meet the demands of modern weighing systems.
✔ IP69K-rated for harsh environments
✔ Expandable connectivity with USB, RS-232, RS-485, and Ethernet
✔ Advanced batching, setpoint control, and process automation
✔ User-friendly interface with configurable softkeys and numeric keypad
✔ Modular design allows remote display mounting for flexible installations
