Key Highlights
-
Detects ferrous, non-ferrous, and stainless steel contaminants
-
Advanced sensitivity without unnecessary system halts
-
Food-grade, 304 stainless steel construction
-
NEMA Type 4X, IP66 rated for washdown environments
-
7-inch color touchscreen user interface
-
Easily removable modular belting for sanitation
-
Adjustable foot pads or optional caster mobility
-
Variable speed operation up to 120 ft/min
-
Stores up to 97 unique product IDs
-
USB, Ethernet, and RS485 communication ports
-
English and Spanish language support

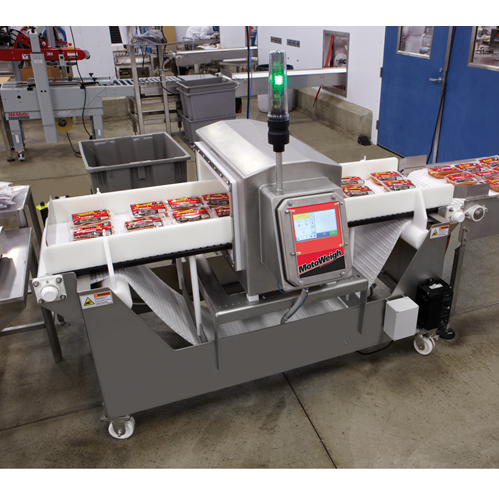

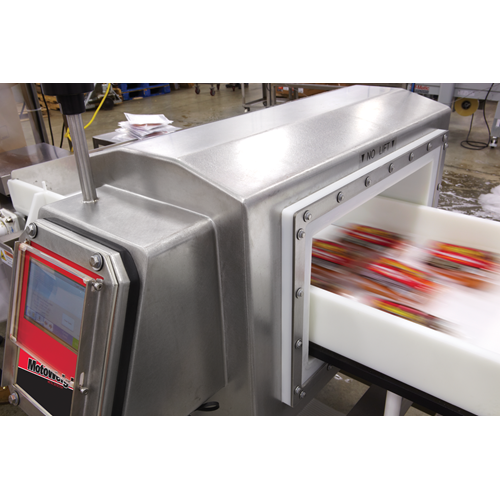

The MotoWeigh® Metal Detector by Rice Lake is a durable, high-performance system designed to detect ferrous, non-ferrous, and stainless steel contaminants in a wide variety of production environments. Built with precision in mind, this metal detection system offers advanced sensitivity without frequent false alarms—providing accurate detection while maintaining production line efficiency.
Unlike traditional x-ray systems, MotoWeigh Metal Detectors operate on a magnetic field disturbance principle, making them ideal for products that vary in shape, size, and orientation. The system’s 7-inch color touchscreen, IP66-rated stainless steel housing, and customizable reject mechanisms make it a top-tier solution for both food-grade and industrial applications.
MotoWeigh arrives factory-programmed to detect spherical metallic contaminants and offers quick disassembly for easy cleaning, ensuring consistent hygiene in washdown environments.
Software Features
-
Four levels of system security
-
Simple setup and product learning
-
One-touch log reporting functionality
-
Real-time editing of product boundaries and rejection logic
-
USB, RS485, and Ethernet connectivity
-
Stores up to 97 product IDs
-
English and Spanish language interfaces
Hardware Features
-
7-inch full-color touchscreen display
-
NEMA Type 4X, 304 stainless steel construction
-
IP66-rated enclosure for washdown
-
Easily removable modular belt
-
Anti-static UHMW slider bed for smooth transport
-
Adjustable foot pads and optional casters
-
Single-point junction box for streamlined wiring
-
Variable speed control based on application
Available Options
| Category |
Available Options |
| Reject Mechanism |
Paddle, Linear, Drop |
| System Add-ons |
Lock box, LED communication tower, Audible alarms |
| Test Equipment |
Ferrous, non-ferrous, and 316 stainless steel test wands (kits and individual) |
| Mobility & Guides |
Caster package, Conveyor guide rails |
| Electrical |
AC power conditioner |
| Environmental |
IP69K protection upgrade |
Specifications
| Specification |
Details |
| Power Requirements |
100 to 240 VAC, 50/60 Hz |
| Display |
7-inch color touchscreen |
| Inputs |
Eight configurable (photo eyes, E-stop) |
| Outputs |
Nine programmable (rejects, faults, warnings) |
| Speed |
Up to 120 ft/min (based on setup) |
| Temperature Range |
Operating: 14 °F to 120 °F (-10 °C to 49 °C)
Storage: 14 °F to 175 °F (-10 °C to 80 °C) |
| Max Operating Altitude |
6,561 ft (2,000 m) |
| Material |
304 stainless steel |
| Approvals |
Intertek, CE |
Why Choose MotoWeigh Metal Detection Systems
MotoWeigh Metal Detectors offer reliable contaminant detection while minimizing downtime. Their rugged stainless steel design outperforms x-ray systems in variable shape and size detection, making them ideal for food processing, packaging, and harsh industrial settings. With long-lasting durability and an intuitive control system, these checkweigher-integrated detectors improve both quality assurance and operational efficiency.
Elevate your quality control and compliance with the MotoWeigh® Metal Detector Checkweigher, engineered for sensitivity, reliability, and washdown performance. Whether you're detecting contaminants in food or industrial products, this system delivers consistent results without sacrificing line speed.
Contact us SellEton Scales today to request a custom quote or discuss how MotoWeigh can be tailored to your operation.
