Weigh-n-Dimension Systems, iDimension Plus and BenchPro Package

Original price $0.00 - Original price $11,005.50
Original price
$9,165.50
$0.00 - $11,005.50
Current price $9,165.50

Key Highlights

  • Package Options: Available in four customizable packages with or without scanner & software kit

  • Fast Measurement: Captures dimensions in 0.2 seconds—no manual input required

  • Simple Setup: Assemble and be operational in under 30 minutes

  • Complete Shipping Solution: Weighing + dimensioning + barcode scanning (in select packages)

  • Free Integration Software: Includes iDim Desktop Wedge with SDK & REST API

  • BenchPro Scale: Large backlit LCD, 150 lb capacity, USB-powered interface

  • Legal-for-Trade Certified: Compliant with NTEP, CE, OIML, and more

  • Touchscreen Display: 7" monitor included for intuitive operation

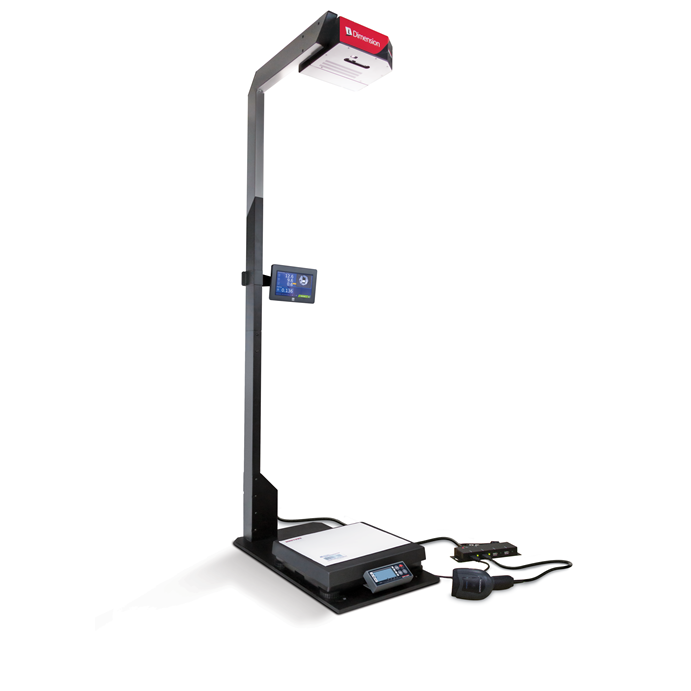

The Weigh-n-Dimension System from Rice Lake combines the powerful iDimension® Plus dimensioner and BenchPro shipping scale to deliver an all-in-one solution for quick, accurate, and efficient shipping processes. Whether you're handling large volumes of packages or need to meet strict freight audit requirements, this integrated system eliminates manual data entry errors and speeds up shipping throughput.

With four flexible package options, including models equipped with barcode scanners, USB hubs, and shipping software kits, this solution is perfect for businesses aiming to streamline operations, reduce labor, and improve accuracy. The iDimension Plus takes just 0.2 seconds to capture dimensions, and the BenchPro scale offers a reliable 150 lb capacity with precision down to 0.05 lb.


Package Options Table

Package Includes
Package 1 iDimension Plus (1.5 m), BenchPro Scale (150 lb)
Package 2 iDimension Plus 4K (1.5 m), BenchPro Scale (150 lb)
Package 3 iDimension Plus (1.5 m), BenchPro Scale (150 lb), barcode scanner, USB hub, software kit
Package 4 iDimension Plus 4K (1.5 m), BenchPro Scale (150 lb), barcode scanner, USB hub, software kit


iDimension Plus Specifications

Specification Details
Power 110 to 240 V (US power cord included)
Display 7" touchscreen
Dimension Capture Time 0.2 seconds
Communication USB A, Ethernet 10/100/1000
Software Integration HTTP requests, XML parsing, status checking
Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)
Camera Resolution 2880 × 2160 (4K model only)
Approvals NTEP, OIML, MID, CE, NMI Certified
Warranty Two-year limited warranty


BenchPro Shipping Scale Specifications

Specification Details
Platter Size 12 × 14 in
Capacity 150 × 0.05 lb / 75 × 0.02 kg
Display Six-digit backlit LCD, 1-inch characters
Battery Power 4x AA batteries (50–250 hrs life)
Communication USB HID 2.0
Annunciators Zero, gross, net, W1/W2/W3 multi-range
Approvals NTEP 17-002, Measurement Canada, CE


Measurement Range (1.5 m Pole Assembly)

Parameter Minimum Maximum
Length 1.2 in (30 mm) 48 in (1,200 mm)
Width 1.2 in (30 mm) 32 in (800 mm)
Height 0 in (0 mm) 28 in (700 mm)
Division 0.2 in (5 mm)


Upgrade your shipping station with the ultimate combo of speed and precision.
The Weigh‑n‑Dimension System featuring iDimension Plus and BenchPro is engineered for fast-paced shipping environments—reducing labor, improving accuracy, and cutting processing time by seconds per parcel.

Ready to increase your throughput and eliminate costly dimensional weight errors?
Contact us SellEton Scales today for pricing, setup guidance, or a personalized quote!

Free Shipping: Available across 48 continental USA. Extra charges may apply for residential, farm, or rural areas.
Express Shipping: Overnight and faster shipping options available at additional costs. Quotes obtainable via email.
Delivery Time: Typically 5 to 7 business days, varying by location and external conditions.
Tracking Information: Provided via email upon shipment. Accessible through account login. Additional information available upon request.
Return Policy: 15-day return period for unused, original condition products. A 25% restocking fee applies. Buyer covers original and return shipping costs.
Customer Support: Contact at (844)-735-5386 or info@selletonscales.com for queries or concerns about shipping.
