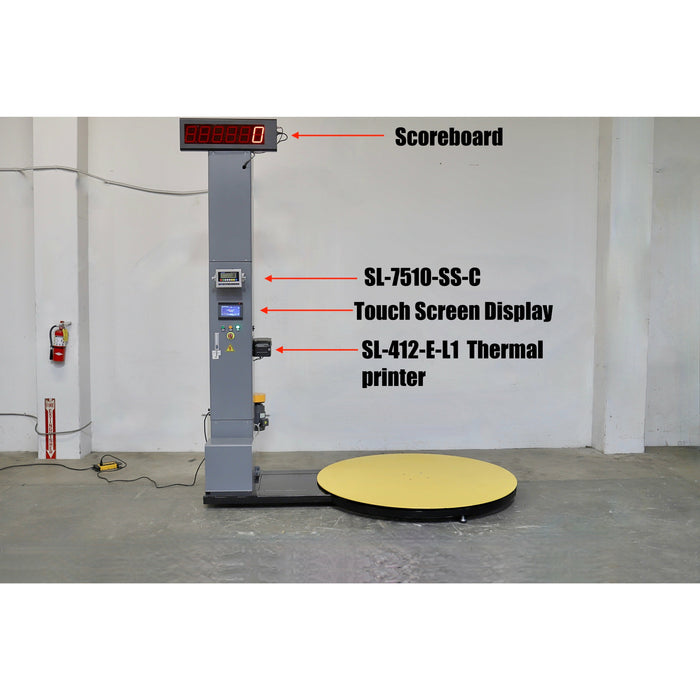

SL-K120 Industrial Pre-Stretch Wrapping Machine with Built-in Scale l 5000 lbs x 1 lb

Regular price $15,000.00 Sale price $9,898.99



You are looking at our "One-Stop" Pre-Stretch Wrapping Machine with Built-in Scale.

Description:

  •  This Stretch Wrapping system offers you high performance, durability, economy, and maximum versatility to meet you packaging application needs.
  •  The built-in scale can increase your work efficiency: you can weigh your pallet while it is being wrapped.
  •  This stretch wrapper offers a convenient and cost-effective way to atomize your stretch wrapping application.
  • With and easy to use indicator with built in label printer. This model is 150%-200 % Pre–Stretch Turntable/ Frame

Features:

• 58" Diameter, 3/8" Laser-Cut Steel Plate

• 5000 lbs. Load Capacity

• ANSI# 50 Chain Drive w/ Adjustment-Tensioning

• Electronic Soft Start/Stop

• 1-12 RPM Variable Speed

• 1/2 HP, DC Controlled Drive Motor

• Low Profile

• Home Proximity Position Sensor

• No Maintenance, No need to Lube Drive System

• Sealed Double Bearing (No Lubrication needed) 12" Flywheel Drive

• 8 point Heavy Duty Phenolic Lined Dual Bearing Support System

• Built-in Forklift Channels

• Tower with Tilt-Down Hinge for Easy Shipping

Carriage Features:

• 20" Film Capacity

• 1/3 HP, DC Controlled Drive Motor

• Clutch Control Film Holder

• Automatic Pallet Height Sensor with adjustable sensor position

• Film Stabilizing Roller

• Phenolic Carriage Guide

• Gear Twin Pre-Stretch Rollers, available up to 200% Pre-Stretch

• Safety Stop Switch on Carriage

 Control Features:

• On/Off with Power Indicator Light

• Home Position Button

• On the Fly Carriage Pause Switch

• On the Fly Variable Turntable Speed Control

• On the Fly Variable Carriage Speed Control

• Manual Carriage Up/Down Switch

• Turntable Jog Switch

• Omron PLC with Communication Port

• Motor Starter with Overload Reset and Electrical Overload Protection

• Top and Bottom Wrap Repetition Counter (0-3)

• Carriage Up and Down Switch

Machine & Control Specifications:

• Production Speed : 35-45 Load /Hour Based on Load Configuration

• Load Size : 53" x 53" x 82"

• Maximum Load Weight : 5,000lbs

• Power: 110V, 60Hz, 16 Amps

• Machine Weight: 1769 lbs

• Height: 9’

Scale Specifications:

• Capacity : 5000 lbs

• Accuracy: 1 lb

• Indicator Power: 110V power cord using machine power

• Display: LED Indicator with built in Label Printer Auto Zero function
