Key Highlights
-
Large, high-visibility color LED display with up to 5 in tall digits
-
Displays stop/go symbols and directional arrows
-
Auto Learn function for compatibility with various weight indicators
-

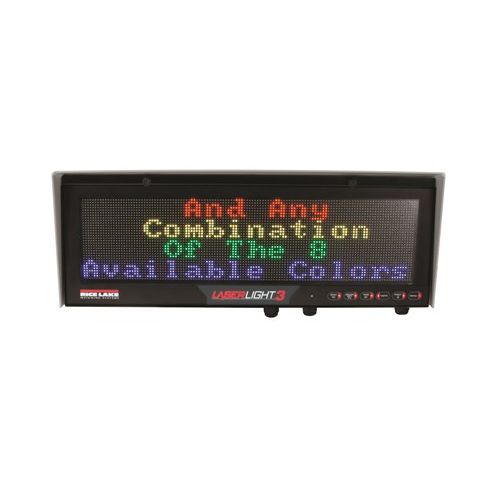

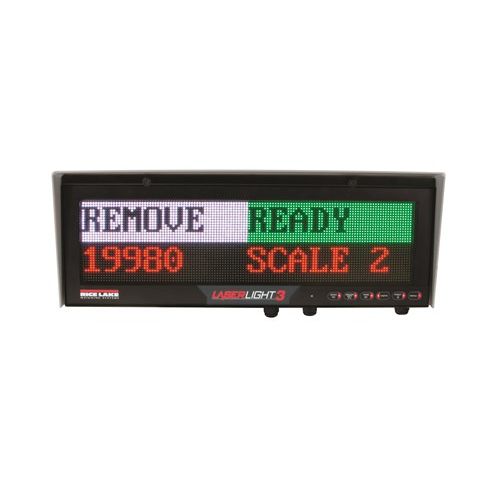

Multiple display formats: 1-line, 2-line, mirror, and quadrant
-
Dynamic messages: scroll, slide, flash
-
Optional time/date when weight is zero
-
Integrated IP66 keypad for scale commands
-
Durable IP66-rated enclosure with Gore-Tex breather vent
-
Communication via RS-232, RS-485, 20 mA loop, or Ethernet TCP/IP
-
Optional wireless interfaces and mounting kits available

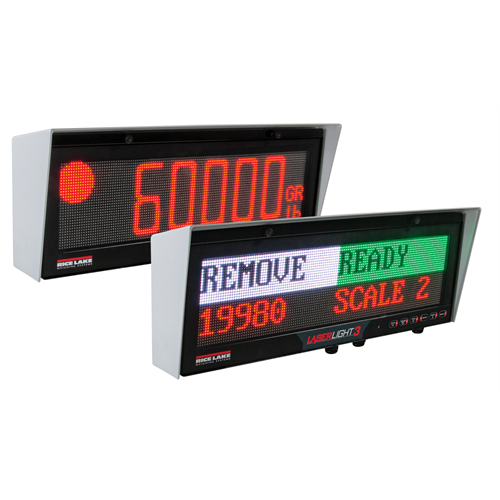

The LaserLight3™ Color Remote Display with Messaging from Rice Lake is an advanced LED display solution designed for industrial weight visibility and messaging needs. Whether installed on a floor scale, truck scale, or warehouse indicator system, the LaserLight3 delivers crisp, bright, and color-coded visuals in multiple layout configurations including mirror mode, quadrant, one-line, and two-line formats.
With Auto Learn technology, the LaserLight3 automatically identifies and interprets incoming weight data from most common digital indicators, ensuring plug-and-play integration. The unit supports dynamic messaging with scroll, slide, or flash effects, and graphic symbols such as arrows and stop/go indicators enhance usability at distance.
This display also includes a weathertight integrated keypad, enabling direct operator input for configurable commands. Built with IP66-rated construction and a Gore-Tex breather vent, the LaserLight3 is suited for tough outdoor or industrial environments. With support for multiple communication protocols, including Ethernet TCP/IP, RS-232, RS-485, and optional Wi-Fi connectivity, this display is ready for flexible integration.
Specifications Table
| Specification |
Details |
| Power Consumption |
100–240 VAC (50/60 Hz), 120 W at 120 VAC, 95 W at 12 VDC |
| Character Height |
4 in: viewable up to 100 ft; 5 in: viewable up to 150 ft |
| Viewing Angle |
160° |
| Display |
128 × 32-pixel LED, 4 mm pitch, outdoor bright color lamps |
| Display Modes |
One-line, two-line, mirror, quadrant, weight with unit/mode |
| Message Effects |
Scroll, slide, flash |
| Symbols |
Stop/go lights and directional arrows (4 in tall) |
| Time Display |
12- or 24-hour format |
| Date Display |
US or ISO format |
| Digital I/O |
Four I/O (read or set), 5 V logic |
| Communication Ports |
RS-232, RS-485, 20 mA loop, Ethernet TCP/IP |
| Input Baud Rates |
1200 to 115200 bps (auto-learn or configurable) |
| Character Format |
7/8 data bits; even/odd/none parity; 1/2 stop bits |
| Update Mode |
Continuous or out-of-motion; message interrupt mode |
| Integrated Keypad |
Yes |
| Enclosure Material |
Powder-coated mild steel, IP66 rating |
| Operating Temperature |
-40 °F to 120 °F (-40 °C to 49 °C) |
| Weight (Varies) |
14.19 lb (without mount), 20.48 lb (with mount), 29.79 lb (with sunshade) |
| Warranty |
Two-year limited |

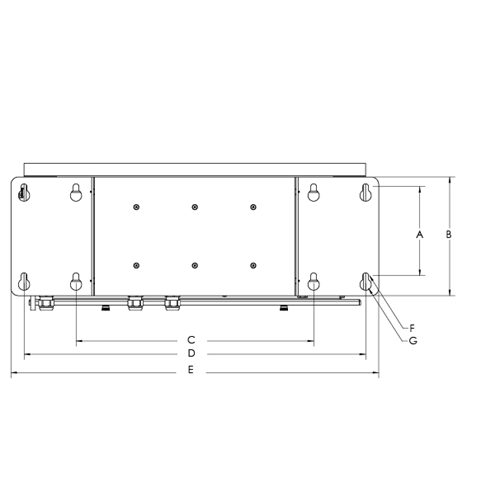

Dimensions (inches and mm)
| Label |
Size (in) |
Size (mm) |
| A |
6.00 |
152 |
| B |
8.00 |
203 |
| C |
16.00 |
406 |
| D |
23.00 |
584 |
| E |
25.00 |
635 |
| F |
0.39 |
10 |
| G |
0.76 |
19 |
Available Options
-
Wireless LAN module (Wi-Fi, 802.11 a/b/g/n)
-
ConnexLink radio pair for wireless communication
-

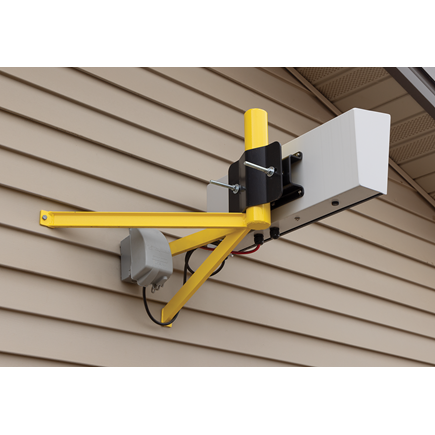

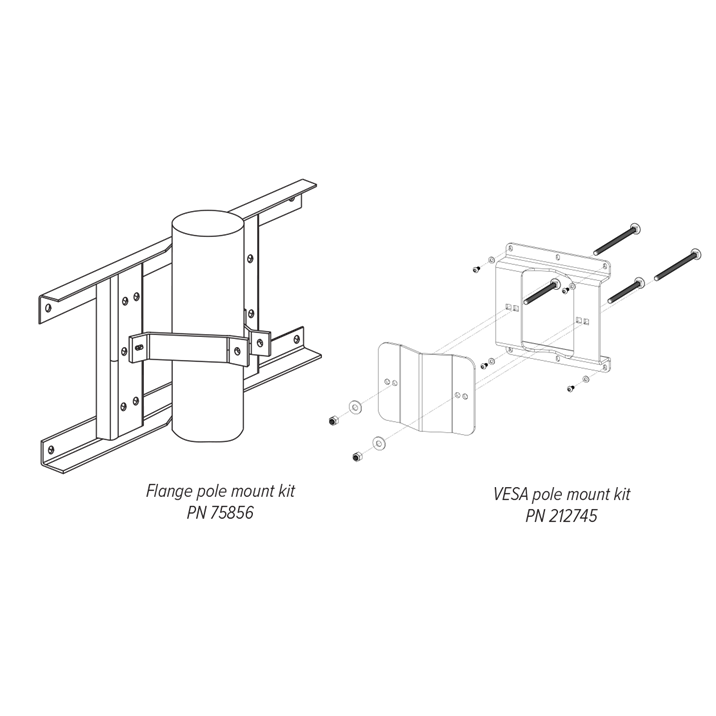

Pole mount kits for 2 to 8-inch poles
-

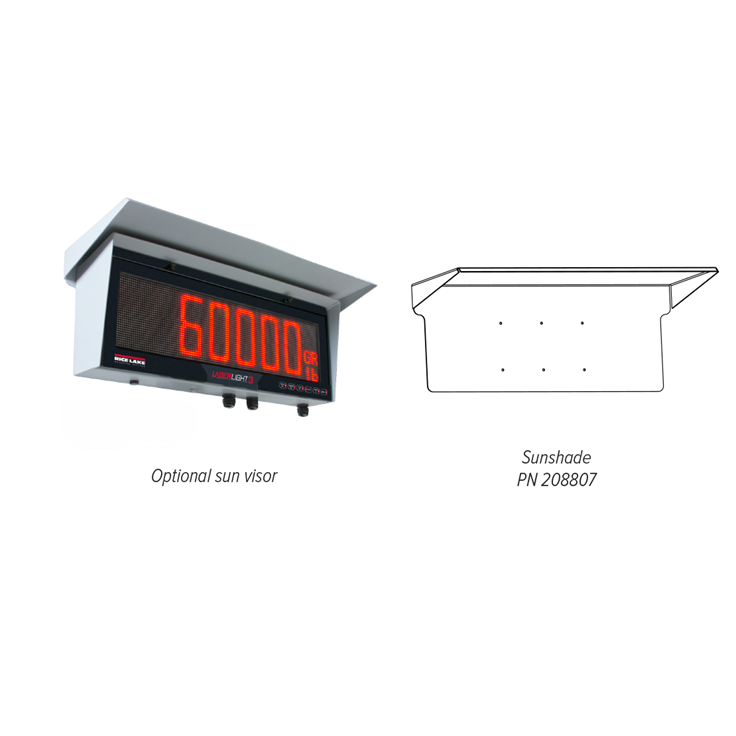

Painted steel sunshade visor (8-inch)
-
VESA mounting kits
Improve your scale visibility and site efficiency with the LaserLight3™ Remote Display from Rice Lake. With high-intensity, multi-line color display, industrial-grade durability, and plug-and-play compatibility, this remote display is ideal for truck scales, warehouses, and outdoor environments.
Order now from SellEton Scales or contact our sales team to find the best configuration for your weighing system.
