Choice of 4 in or 6 in high-intensity red LED digits
Non-glare, contrast-filtered lens for clear visibility
Auto Learn mode for easy communication setup
Display time and date when scale is empty
Optional stop/go indicators with red, green, and arrow lights
10 adjustable intensity levels for day or night use
RS-232, RS-485, and 20 mA current loop input options
IP66-rated enclosure with Gore-Tex breather vent

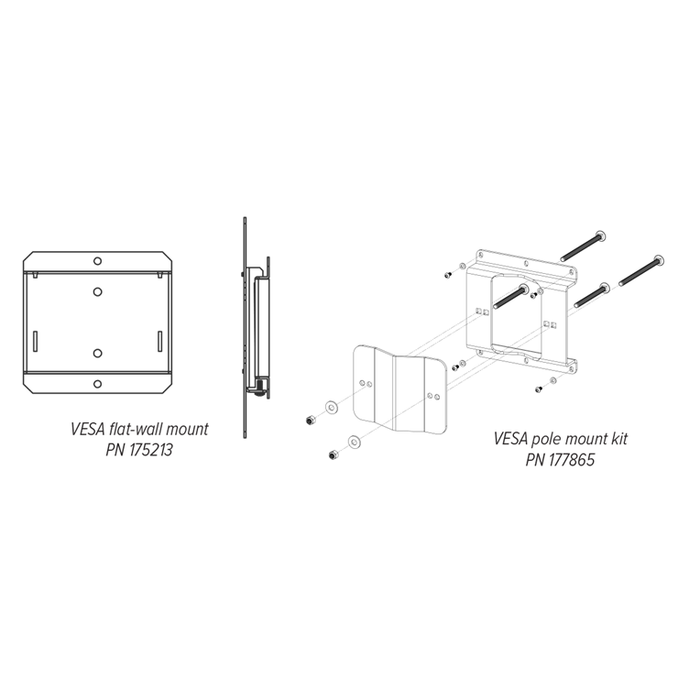

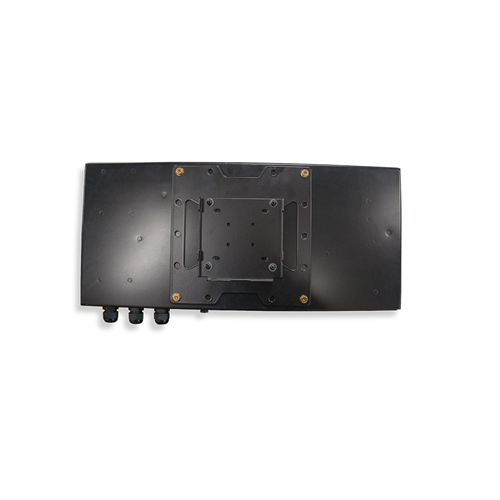

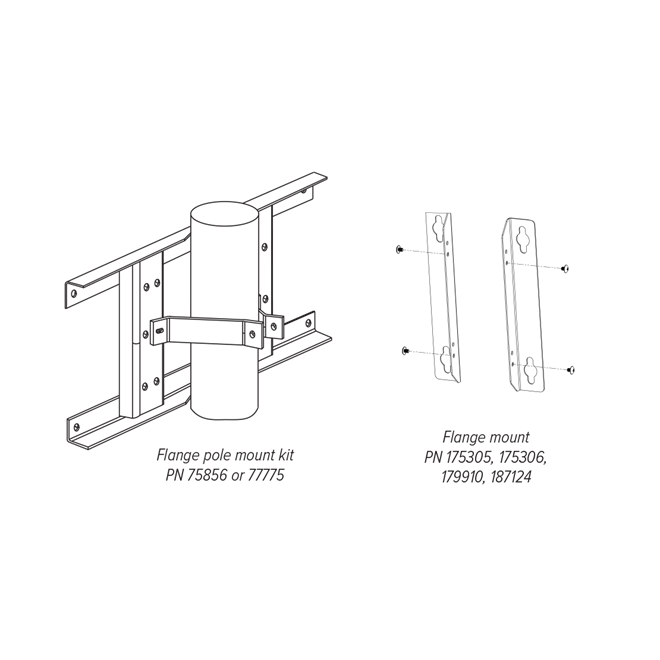

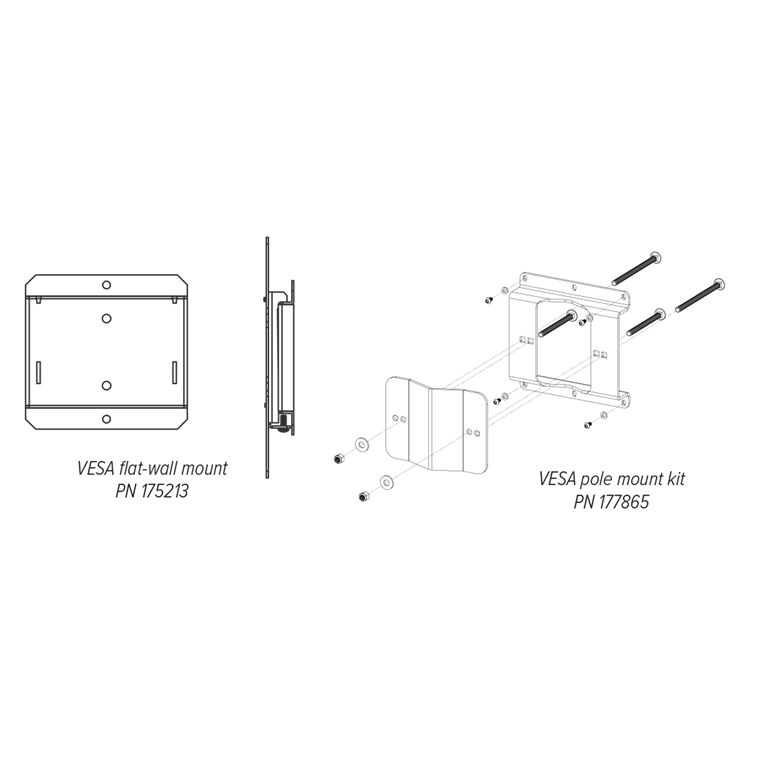

Wall, VESA, or flange mounting options available
Self-learning baud rate and character format settings

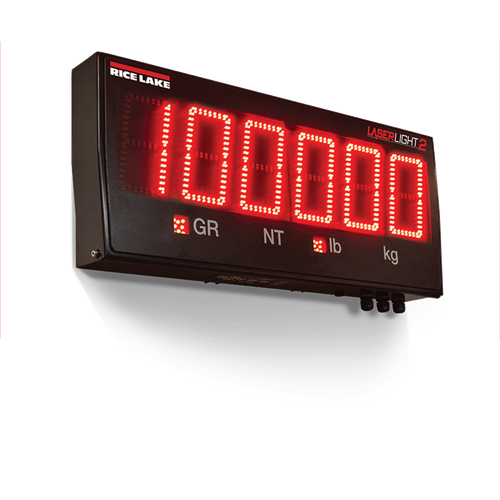

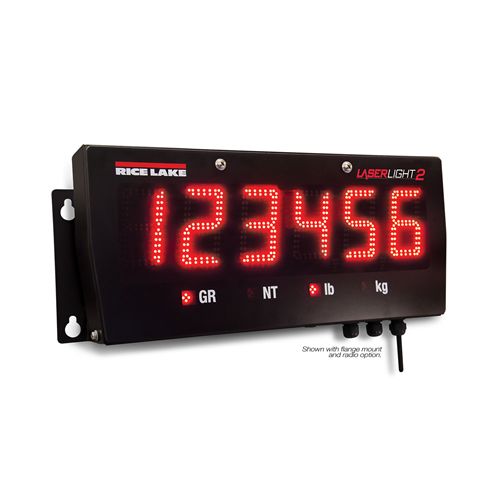

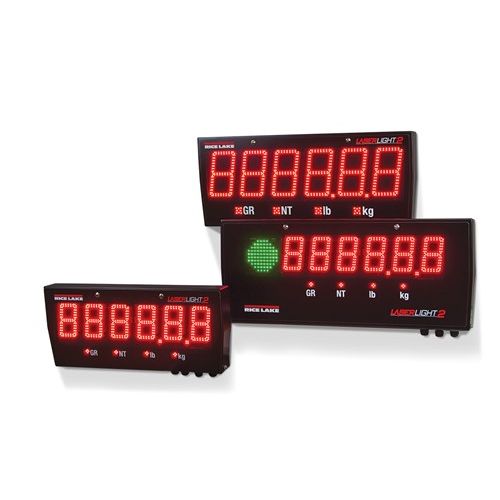

The LaserLight2™ Remote Display from Rice Lake Weighing Systems offers unparalleled visibility and reliability in industrial environments. Designed to clearly display weights, numeric data, and operational messages, this rugged LED display ensures optimal performance whether you're working indoors or outdoors.
With digit options in 4-inch or 6-inch heights, the LaserLight2 provides long-distance readability of up to 150 feet. Its non-glare contrast-filtered lens enhances visibility in both low-light and direct sunlight conditions. The built-in Auto Learn communication protocol mode makes setup fast and seamless with a variety of indicators.

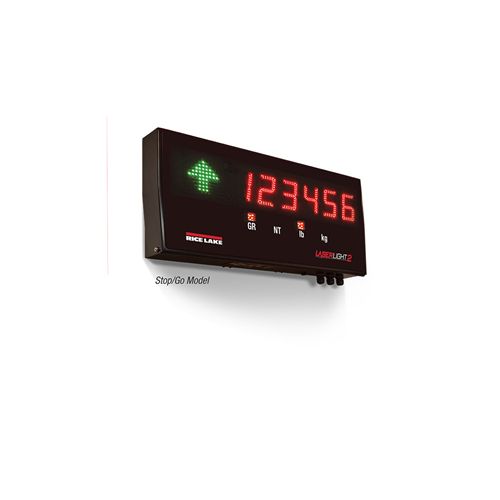

In its stop/go version, the LaserLight2 includes red and green lights as well as directional arrows for controlled operation, ideal for truck scale entry points and high-traffic areas. Its IP66-rated housing protects the electronics against harsh weather and industrial environments. Built-in Gore-Tex breather venting inhibits internal moisture build-up to ensure long-term durability.
| Specification | Details |
|---|---|
| Digit Size Options | 4 in (100 mm) or 6 in (150 mm) high-intensity LED digits |
| Display Type | 6-digit, 7-segment discrete red LED with optical filter |
| Viewing Distance | 4 in: 100 ft (30 m); 6 in: 150 ft (46 m) |
| Annunciators | GR, NT, lb, kg |
| Stop/Go Indicators | 4 in red, green ball/arrow (in applicable models) |
| Input Interfaces | RS-232, RS-485, 20 mA current loop (active or passive) |
| Output Interfaces | Configurable echo out or RS-232 |
| Data Format | Self-learning or software selectable, 1200–19200 baud rate |
| Character Format | 7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits |
| Update Modes | Continuous or out-of-motion selectable |
| Time/Date Format | 12/24 hour format; US or ISO date |
| Power Consumption | 100–240 VAC; 4 in: 21 W, 6 in: 27 W |
| Operating Temperature | -40 °F to 120 °F (-40 °C to 49 °C) |
| Enclosure Rating | IP66 weathertight, powder-coated mild steel |
| Weight | 4 in: 20 lb (9 kg); 6 in: 25 lb (11 kg) |
| Warranty | Two-year limited |

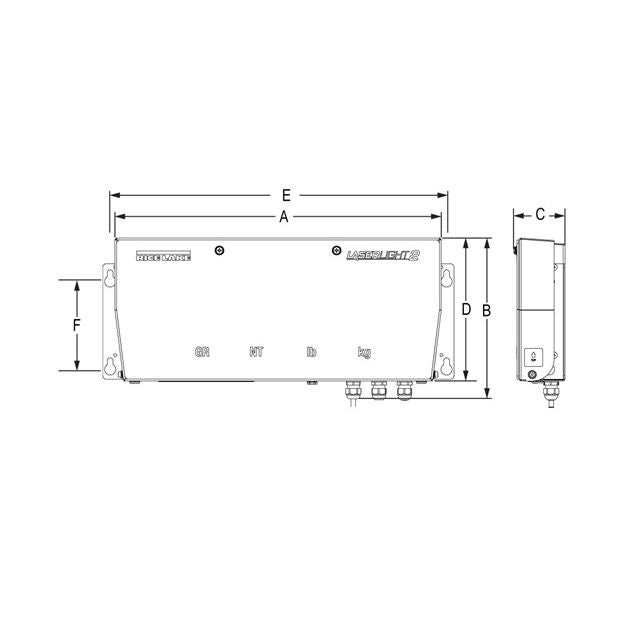

| Label | Inches (in) | Millimeters (mm) |
|---|---|---|
| A | 22.28 | 565 |
| B | 10.96 | 280 |
| C | 3.28 | 85 |
| D | 9.80 | 250 |
| E | 23.00 | 584 |
| F | 6.00 | 152 |
| Label | Inches (in) | Millimeters (mm) |
|---|---|---|
| A | 30.63 | 780 |
| B | 13.94 | 355 |
| C | 3.73 | 95 |
| D | 12.77 | 325 |
| E | 31.00 | 787 |
| F | 7.75 | 197 |
Note: Mounting flanges add 2.00 inches to the width.
Ensure your weight data is clearly visible, even at a distance, with the Rice Lake LaserLight2™ Remote Display. Whether you operate a truck scale, warehouse, or production facility, this rugged, bright, and highly compatible display is a powerful addition to your system.
Order today from SellEton Scales or reach out to our team for expert guidance on the right model and mounting configuration for your operation.
