Enhances alignment and increases load cell repeatability
Naturally dampens vibrations to ensure consistent performance

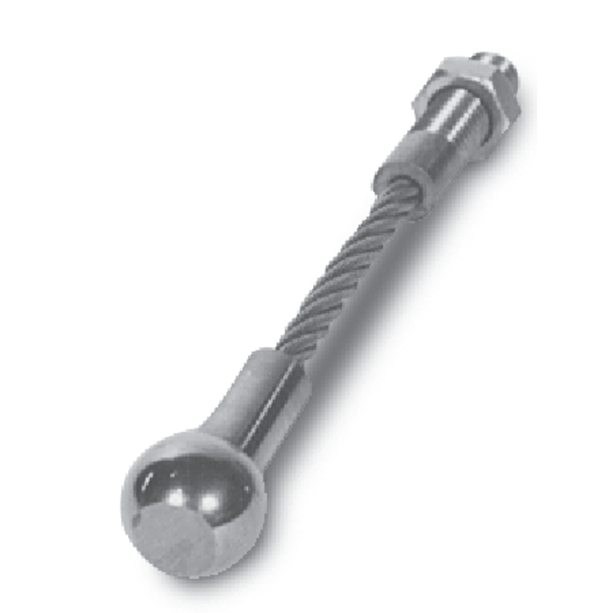

Available for standard use or Cardinal® FH/EP models
Custom wire ropes available for specific tension/capacity needs
Constructed to handle capacities up to 2,880
Wire Rope Assemblies are essential for improving the performance of suspended weighing systems by reducing unwanted forces such as side loads and vibrations. These assemblies allow for greater flexibility and more consistent load alignment, which significantly enhances the accuracy and repeatability of your load cells.
At SellEton Scales, we offer a wide range of wire rope assemblies, including preconfigured models for Cardinal® FH and EP scales, and customizable options to meet unique specifications. Our assemblies feature high-strength construction, various thread configurations, and are suitable for both standard and flexure-based systems.
Whether you're upgrading your existing system or creating a new custom solution, these assemblies serve as a critical component in protecting your load cells and ensuring long-term reliability.
Note: Wire ropes are not recommended for use with shock loads, chemical exposure, or torsional forces. Use safety chains or rods as backup when necessary.

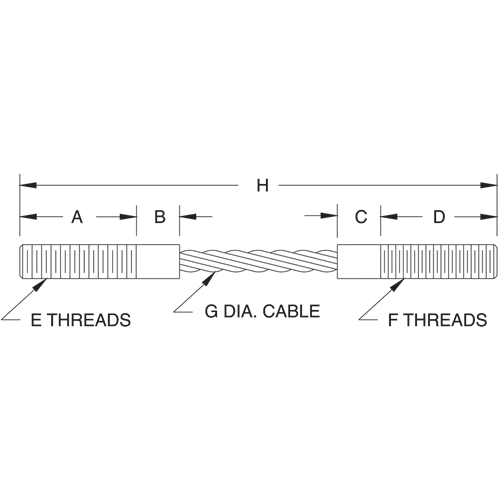

| Part # | A (in) | B&C (in) | D (in) | E Thread | F Thread | G (in) | H (in) | Safe Load | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 17760 | 0.87 | 0.50 | 0.87 | 1/4-20 UNC-2A | 1/4-28 UNF-2A | 0.12 | 4.00 | 400 lb | |||
| 17762 | 1.25 | 0.50 | 1.25 | 3/8-16 UNC-2A | 3/8-24 UNF-2A | 0.18 | 5.00 | 850 lb | |||
| 17766 | 1.62 | 0.50 | 1.62 | 1/2-13 UNC-2A | 1/2-20 UNF-2A | 0.25 | 6.50 | 1,400 lb | |||
| 17765 | 1.62 | 0.50 | 1.62 | 1/2-13 UNC-2A | 1/2-20 UNF-2A | 0.25 | 5.50 | 1,400 lb | |||

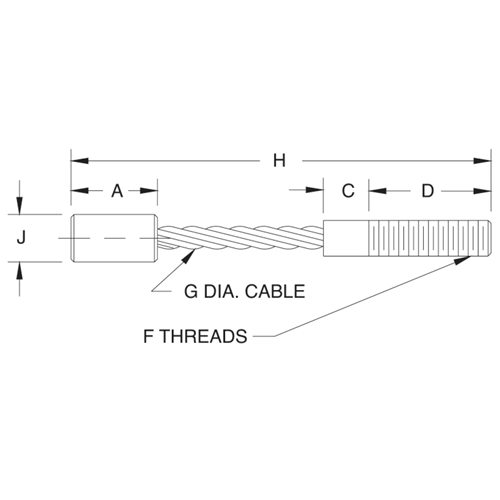

| 17764 | 1.00 | - | 1.37 | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 0.25 | 4.00 | 1,400 lb | |||
| 17768 | 2.00 | - | 2.50 | 3/8-24 UNF-2A | 3/8-24 UNF-2A | 0.12 | 5.50 | 400 lb | |||
| 17769** | 1.25 | - | 0.75 | 1/4-28 UNF-2A | 1/4-28 UNF-2A | 0.12 | 3.00 | 400 lb | |||
| 17771** | 1.25 | - | 0.75 | 1/2-20 UNF-2A | 1/2-20 UNF-2A | 0.25 | 3.00 | 1,400 lb | |||
| 115292*** | 1.25 | - | 0.75 | 1/4-28 UNF-2A | 1/4-28 UNF-2A | 0.12 | 3.00 | 300 lb | |||
| 33084**** | 1.31 | - | 1.00 | 1/2-20 UNF | 1/2-20 UNF | 0.125 | 3.62 | 850 lb |

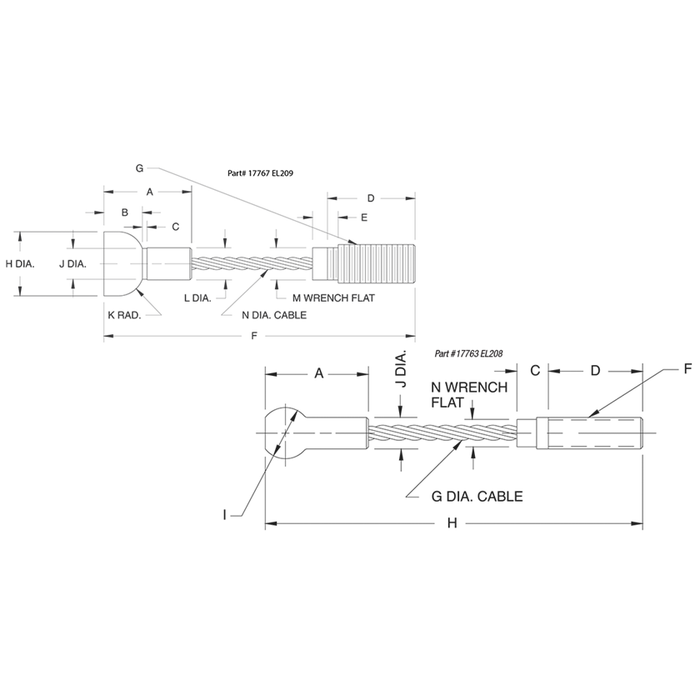

| Part # | A | B | C | D | E | F Thread | G | H | I | J | K | L&M | N | Safe Load | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17763 | 1.50 | — | 0.50 | 1.50 | — | 1/2-13 UNC | 0.25 | 6.00 | 0.81 | 0.43 | — | — | 0.43 | 1,400 lb | |
| 17767 | 1.71 | 0.75 | 0.09 | 2.00 | 0.43 | 3/4-10 UNC-2A | 1.25 | — | 0.60 | 0.50 | 0.625 | 0.375 | 2,880 lb |
Choose SellEton Scales for wire rope assemblies that bring precision, safety, and flexibility to your weighing systems. Upgrade today to enhance your load cell performance and system reliability.
