Are you struggling with inaccurate readings and inefficiencies in managing warehouse or industrial weight measurements?

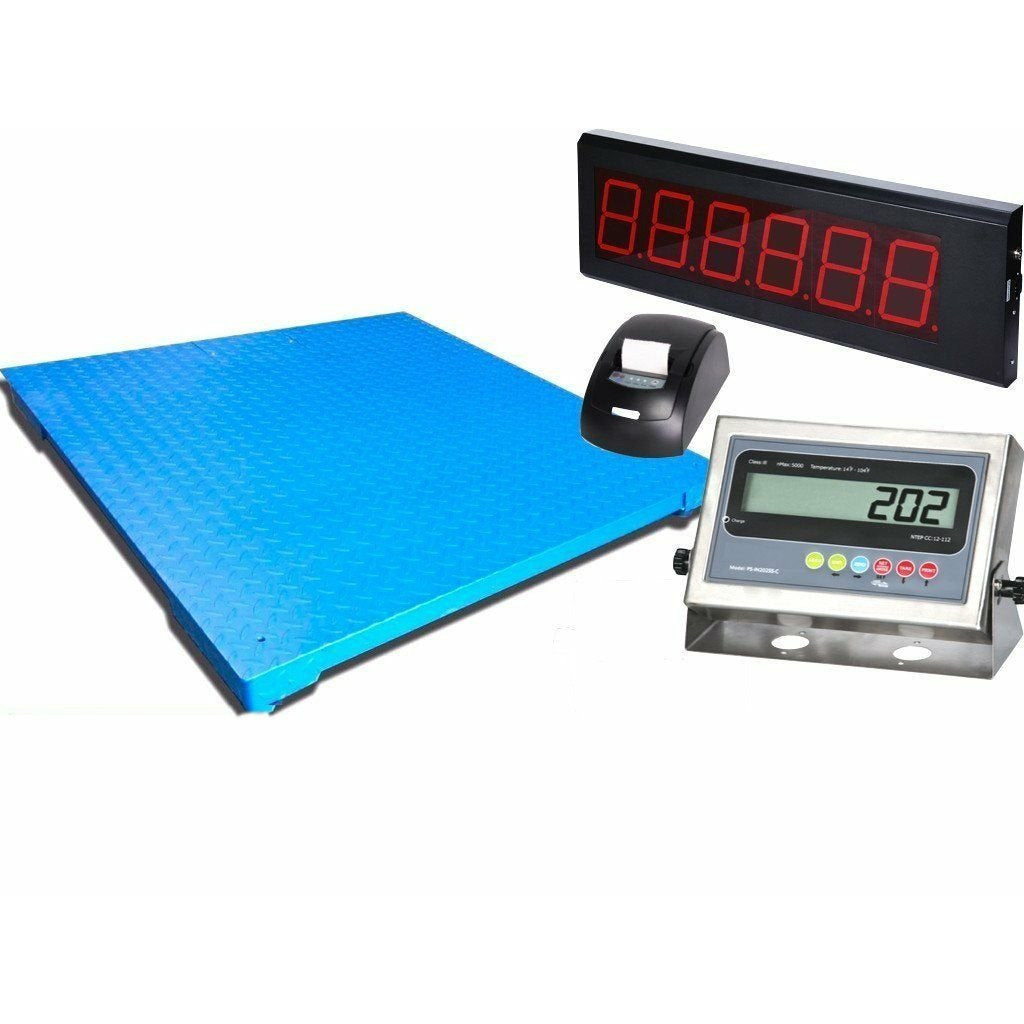

Introducing the SellEton 60" x 60" Floor Scale, your ultimate solution for precision and reliability. This non-NTEP certified scale has a Stainless Steel indicator, a convenient printer, and a visible scoreboard designed to enhance operational efficiency and accuracy in industrial environments.
Key Benefits:
-
Robust Construction: This scale is built with a medium-duty industrial design and a structural steel channel frame to withstand harsh industrial conditions.
-
Precision Weighing: Features four alloy steel shear beam load cells and a top-load design, ensuring accurate measurements with every use.
-
Durable Surface: The rugged diamond deck treadplate offers durability and stability, which is ideal for frequent, heavy loads.
-
Easy Connectivity: Comes with a PS-IN 202 indicator with Rs-232 serial output, making it easy to integrate with other digital systems for streamlined operations.
-
Flexible Installation: Adjustable swivel steel feet and a threaded eyebolt hole for lifting allow easy installation and setup in various industrial settings.
-
Convenience Features: The scale includes a 15′ load cell cable and an ABS NEMA 4x junction box with an excitation trim board for enhanced functionality and ease of use.
-
Reliable Operation: This product features a SellEton PS-IN202 NTEP Certified Indicator with lb/kg options, powered by a rechargeable battery for uninterrupted use.
Indicator Key Features:
-
Ease of Use: Simple calibration and operation process.
-
Scale Base Compatibility: Works with any scale base.
-
Remote Display Capability: This can be a remote display through slave mode.
-
Connectivity Options: Offers connections for printers, scoreboards, and computers, including a mode for livestock auctions.
-
Power Flexibility: Operates on an external AC/DC adapter or a rechargeable battery.
-
Mounting Versatility: Comes with a stainless steel bracket for mounting on a table or wall.
Indicator Specifications:
-
Display: 1.5-inch super large LED display.
-
A/D Conversion Rate: Configurable.
-
Load Cell Compatibility: Supports power for eight 350-ohm load cells.
-
Units: Measurements in pounds (Lb) or kilograms (Kg).
-
Operation: 6-button interface.
-
Communication Port: RS-232 x 1.
-
Power Supply: 110v cord.
-
Mounting Bracket: Stainless steel for table stand or wall mount.
-
Size: 9.3 inches x 6.5 inches x 2.8 inches.
Printer Specifications:
-
Technology: Thermal printing.
-
Dots Per Line: 384.
-
Resolution: 8 dots per millimeter.
-
Printing Speed: Maximum of 2.4 inches per second.
-
Paper Feed: 0.005 inches.
-
Bit/Line: 32 bits per line.
-
Dot Dimensions: 6x8 (Width x Height).
-
Features: Supports graphics, paper checks, and online/offline status checks.
-
Ports: Includes serial and infrared ports.
-
Buffering: 32K.
-
Compatibility: ESC/P commands are compatible with IBM / EPSON printers.
-
Operating Voltage: 7.5V.
-
Current: Normal 1-1.5A, Peak 2-3A.
-
Paper Width: 1.9 inches.
Customization Options for the SL-800-Series Floor Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
-
Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-
Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Pit-Frame Installation: Choose between a permanent, in-ground pit frame installation or versatile industrial portable pit frames for flexible placement.
-
Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.
-
Ramp Access: Implement optional ramps to facilitate simple and safe loading and unloading using carts or pallet jacks.
-
Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.
-
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.
-
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
-
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.
Imagine the relief and confidence you will feel knowing that every load is measured precisely and efficiently. The SellEton 60" x 60" Floor Scale with Printer & Scoreboard is not just a purchase but an investment in the smooth and effective management of your industrial operations. Equip your facility with this top-tier industrial floor scale and watch as everyday weighing tasks become simpler, faster, and more accurate.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
