SL-720-414B NTEP Weighing Kit for Floor Scales & Multi-Purpose Use

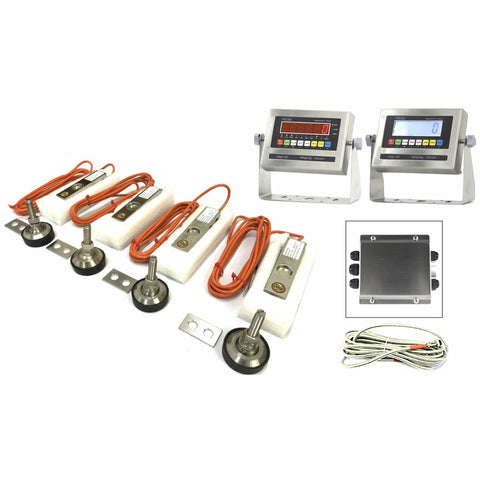

The SL-720-414B is an NTEP weighing kit for building your own floor scale or multi-purpose scale. It has everything but the platform: four shear beam load cells, 6 in feet and the SL-7510 indicator, for kits from 1,000 to 40,000 lb.

Key features

• Build your own scale. Every part except the platform, in one kit.
• Legal for trade. NTEP certified kit with the SL-7510 indicator (certificate 22-027).
• Alloy or stainless. Choose alloy steel load cells, or stainless steel for wet areas.
• Stable footing. Industrial 6 in feet keep the scale steady on the floor.
• Ready to connect. RS-232 output for printers, scoreboards and computers.

Which kit do I need?

Pick the kit capacity and load cell material in the drop down above. Each kit has four load cells.

Specifications

• Load cells: Four shear beam, alloy steel or stainless steel
• Feet: Industrial 6 in
• Indicator: SL-7510 mild steel, 1 in 6-digit display, lb and kg
• Certification: NTEP, Class III, 5,000 divisions (indicator certificate 22-027)
• Output: Full duplex RS-232
• Operating temperature: 14 to 104 °F (-10 to 40 °C)

In the box

• Four shear beam load cells in the capacity and material you choose
• Four 6 in feet
• SL-7510 indicator

Upgrades and add-ons

• Printer. Ticket and label printers for a record of every weight.
• Scoreboard. The SL-910 remote display for reading from a distance.
• Data software. Data logging software keeps weight records on your computer.
• Indicator stand. Stands in painted or stainless steel.
• Explosion-proof indicator. The SL-7510-SS-C-EX for hazardous areas.

Calibrating the indicator? See the decimal point calibration video.

Note: outdoor and wet areas

For outdoor use, choose a stainless steel indicator, stainless steel load cells and a stainless steel junction box.
