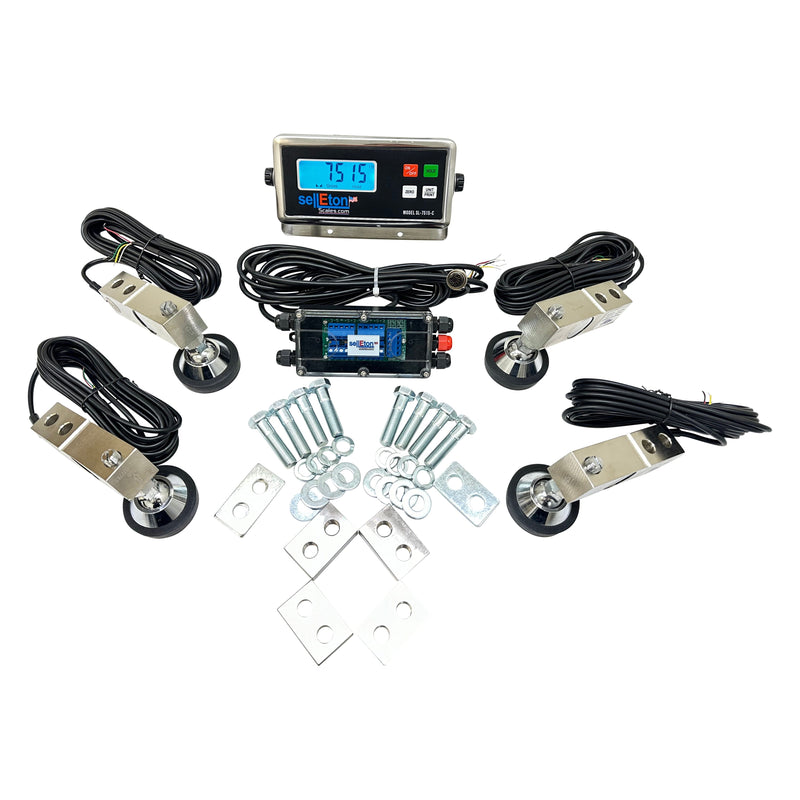

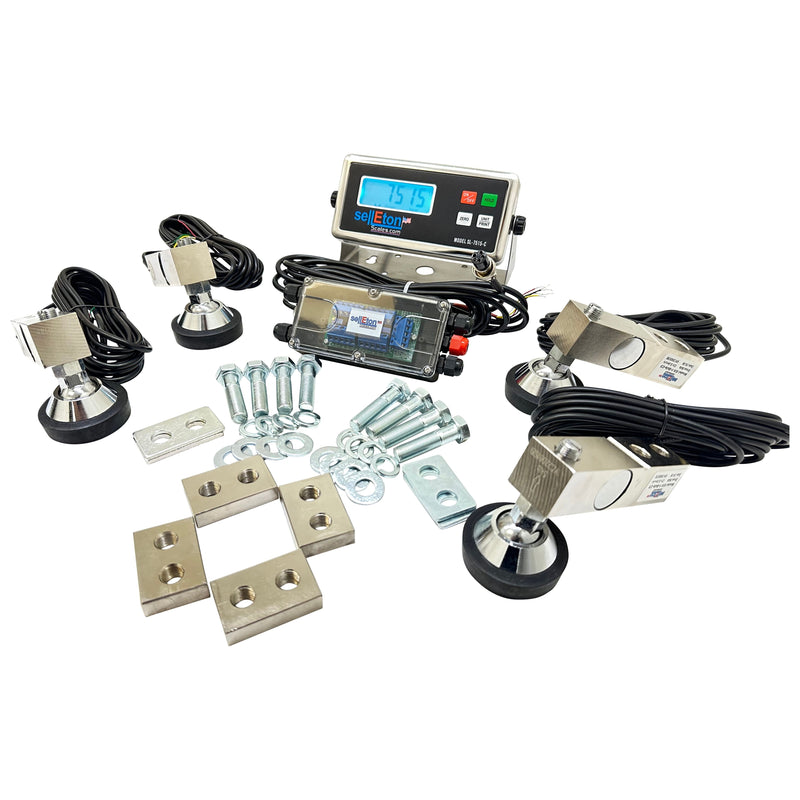

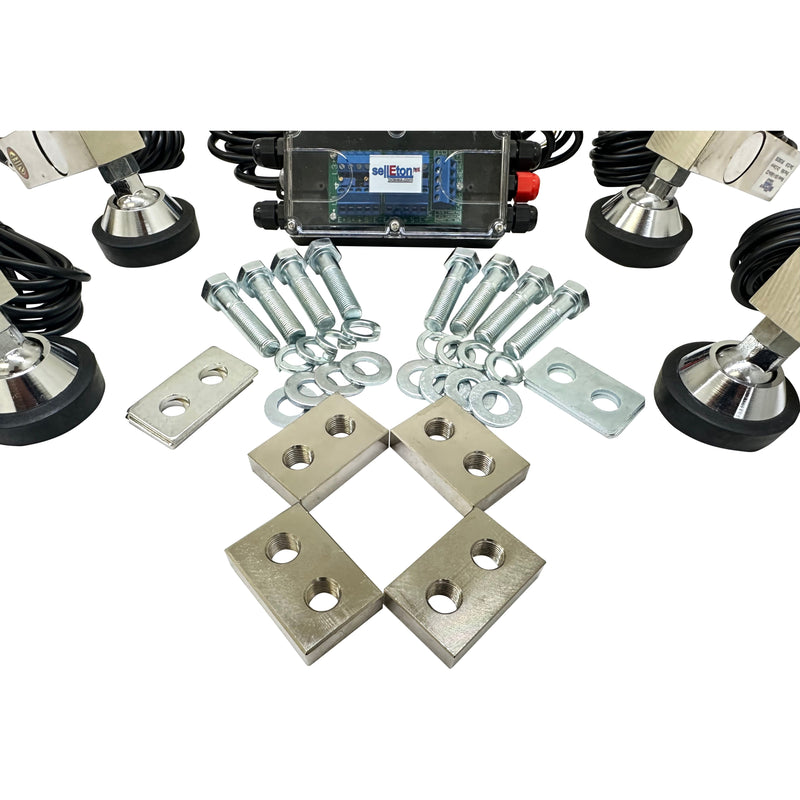

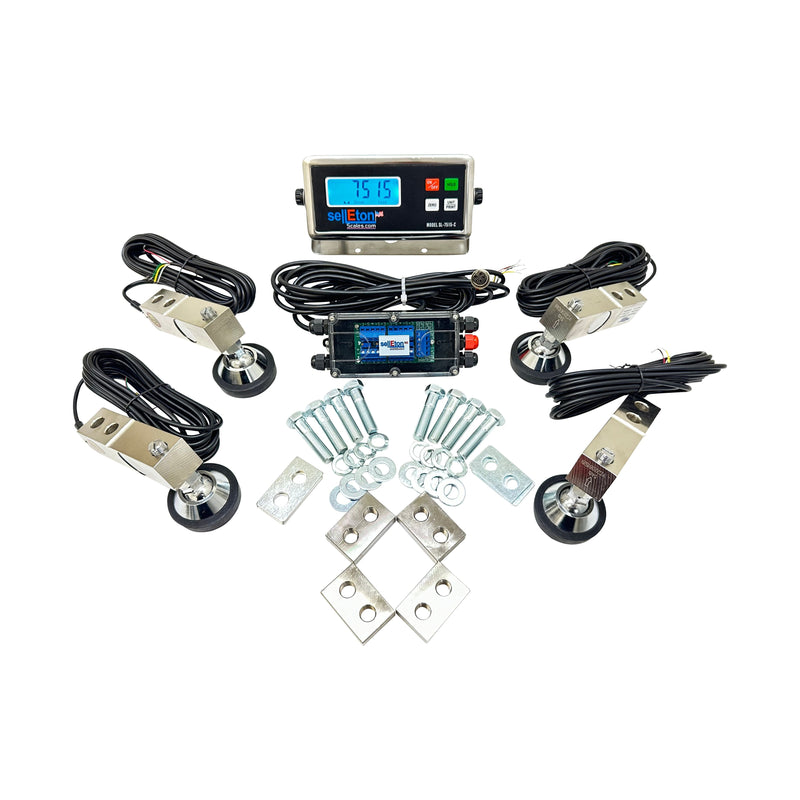

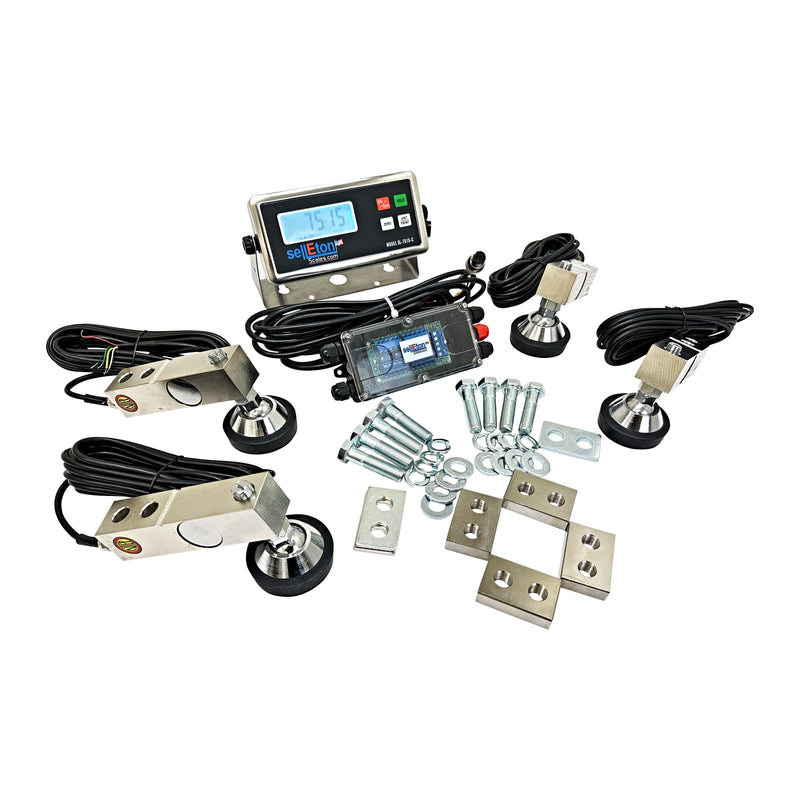

your looking at the SL-Weighing kit. it is an NTEP (legal for trade ) certified kit, comes with everything you will need to make anything into a scale!
This kit can handle from 1k lbs to 15,000 lbs.
Calibration choices:
1000 lb Capacityx .2 lb Accuracy
2500 lb Capacityx .5 lb Accuracy
5000 lb Capacityx 1 lb Accuracy
10,000 lb Capacityx 1 lb Accuracy
Indicator Specifications:
Legal for Trade NTEP CC# 12-112
0.5″ LED display
Configurable A/D conversion rate
power for 8 350 ohm load cells
Units: Lb / Kg / oz
5 button operation
Slave mode to use as a remote display
3 kinds of signal output for printers, Scoreboards & computers ( includes livestock auction mode) Comp ports: Rs-232 x1
Stainless steel bracket for table stand or wall mount
Size: 6.5″ x 3″ x 1.5″
Features:
Shear beam load cells, one end fixed.
Alloy steel or Stainless Steel Option
Self-centering
Easy to install & use
Shear Beam Single Ended Load Cell
load cell Specifications:
Rated Output (mV/V): 3.00±0.015
Nonlinearity: ±0.02%FS
Hysteresis: ±0.02%FS
Repeatability: ±0.01%FS
Creep (30 minutes): ±0.02%FS
Zero Balance: ±1.00%FS
Temperature Effect on Zero: ±0.02%FS/10°C
Temperature Effect on Output: ±0.02%FS/10°C
Input Resistance: 385±5Ω
Output Resistance: 350±3Ω
Insulation Resistance: ≥5000MΩ
Excitation Voltage: 10V(DC/AC)
Compensated Temperature Range: -10°C ~ 50°C
Operating Temperature Range: -20°C ~ 60°C
Safe Overload: 120%FS
Cable: 5.4x6 m
