SellEton SL-926 Hanging Scale (S-Type) used for tension & compression!

Original price $299.00 - Original price $599.00
Original price
$299.00
$299.00 - $599.00
Current price $299.00

Indicator Features

  • SL-7516 indicator with LED or LCD display
  • 1" Tall backlit display
  • Rechargeable battery (up to 100 hrs)
  • Plastic casing
  • AC adapter included
  • Multiple weighing units: (lb/kg)
  • Gross/Tare/Zero
  • Multiple Hold functions
  • Overload / Underload alarm
  • Splash-proof  keyboard and display
  • Connects to a remote display and printer
  • Full Duplex RS-232 Serial Port
Load cell:
  • General weighing for many applications
  • Selectable weighing units: lb, kg
  • Includes SL-7516 LED or LCD indicator with rechargeable battery
  • Standard indicator functions include Tare, Print, and Peak Hold
  • 19’ load cell cable (longer cables available)
  • Eyebolts included
  • Indicator upgrade to NEMA 4 stainless steel for washdown applications
  • RS232 port for printer or computer





    Frequently Asked Question

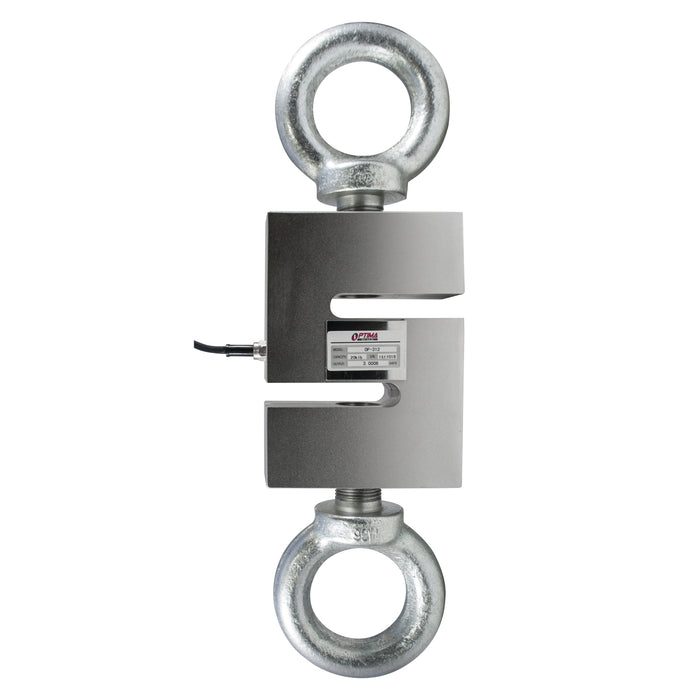

    An S-type of S-beam load cell- named for the recognizable shape of the beam's sensing element- is a force-converting transducer.

    It is used in digital scale hanging equipment and other applications that use tension or compression to create electrical signals using force.

    Put in simpler terms, it measures different types of force and converts the data to display the measurement. This applies to more than just weight measurement.

    These load cells can also be used to measure pressure, tension, and other things. S-type load cells are most typically found in cranes, rod ends, lifting equipment, tension bolts, and hanging scales.

    The weight capacity on SellEton S-Type hanging scales varies. You can select the option that best suits your needs.

    Our range begins with a compact 100 lb hanging scale and extends to a 20,000 Lb product purpose-built for heavy-duty load lifting in industrial and construction settings.

    Some of our most popular weight capacity scales include:

    • 250-300 lb hanging scale
    • 500 lb hanging scale
    • 5000 lb hanging scale

    If you are unsure of the best weight for your requirements, contact our support team for more details.

    We can help you customize your purchase to achieve the most suitable and effective performance.

    An S-type load cell is more versatile than most other options because of its multi-purpose use in tension and compression applications.

    A single point or tension link load cell is more restricted in what it can do.

    Weighing scales that use S-Beam load cells often have greater accuracy, especially when they have gone through the thorough testing applied to every SellEton scale.

    If you need to measure suspended loads using hanging scales, weighing scales that use an S-type load cell is usually the best choice.

    The standard design of the SellEton hanging scales collection is not built with outdoor use in mind.

    However, you can include the outdoor water-resistant package on any scale to expand your uses and better protect it from the elements.

    Our stainless steel water-resistant upgrade lets you confidently transport and use your S-type hanging scale indoors, outdoors, in damp or humid conditions, or near water sources if you have no choice.

    It is a more robust choice than other popular materials, such as alloy steel or aluminum.

    The package costs $449.00 and is available for all the scales in our range. Just add the upgrade when you are customizing your purchase options.

    S-type load cells are very common and even more useful across many different industries. Any company that has a need to measure weight or pressure using load suspension can use this type of hanging scale.

    Construction companies and large-scale industrial sites often use an S-beam load cell scale to weigh building materials. They are also used in automotive systems to check weight consistency across products.

    Other places you often find equipment using an S-type load cell are hospitals. They are often used in patient weighing and lifting systems. The oil, coal, and other mining industries are other examples of some common users of S-type load cell hanging scales.

    In short, any business, company, contractor, or industry that needs to weigh loads that are easiest to measure using suspension, tension, or compression can benefit from this type of equipment.

    We offer two printer options that can be integrated into the working setup of your hanging scale. It is not part of the standard package, but we understand the benefit it brings to some businesses.

    If you want to be able to print collected data directly from the scale when weighing a load, customize your selection when placing your order. Go to the printer option, select the drop-down menu, and choose our thermal printer package or thermal label printer package.

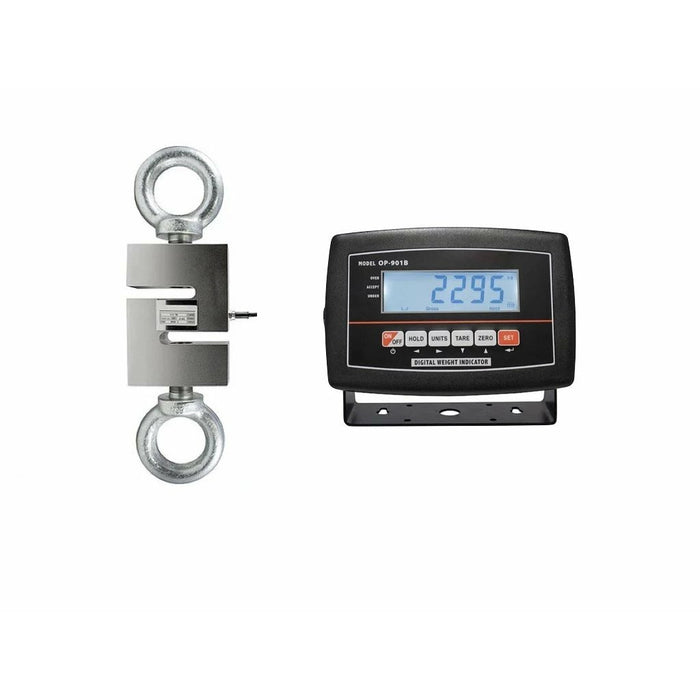

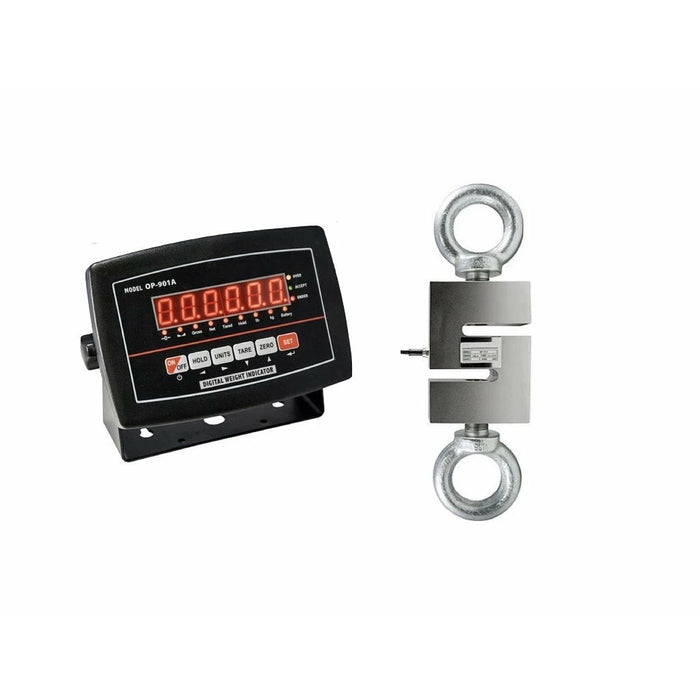

    When you purchase the SellEton S-Type hanging scale, it comes with a digital display indicator. Whatever force your scale reads is converted into electrical signal data and displayed on the digital receiver.

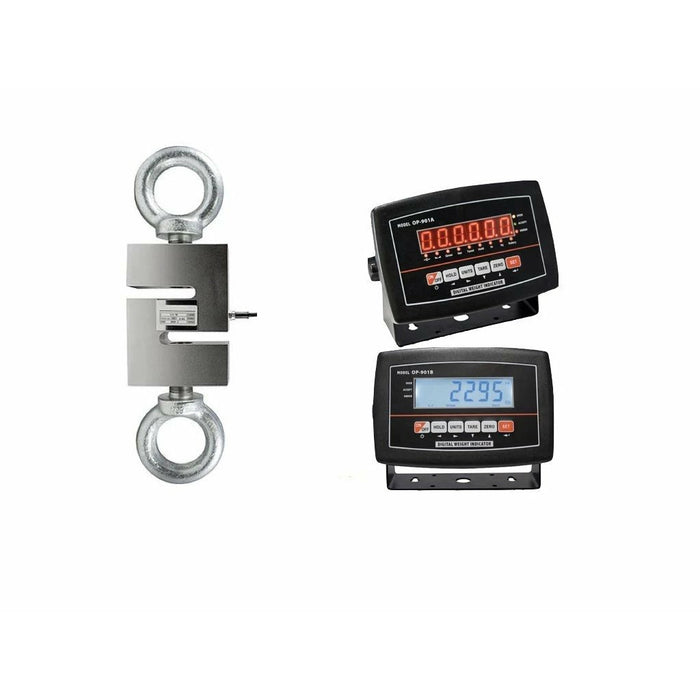

    You can choose between an LCD and LED display for your indicator when you place your order. The display and keyboard are splashproof and able to remotely connect to the scales and printer (if you add one).

    The load cell itself does not require any power source, only the digital indicator does.

    The indicator display unit contains a rechargeable battery with the capacity to last up to 100 hours at a time. When it runs out, you can charge it like any other device.

    It comes with an adapter and charger included, which can be plugged into any normal electrical power socket.

    Your S-type load cell hanging scale comes with a 19’  integral cable as standard. Longer cables are available- just speak to the excellent customer support team.

    An agent can advise on the other options and how to add one to your order.
