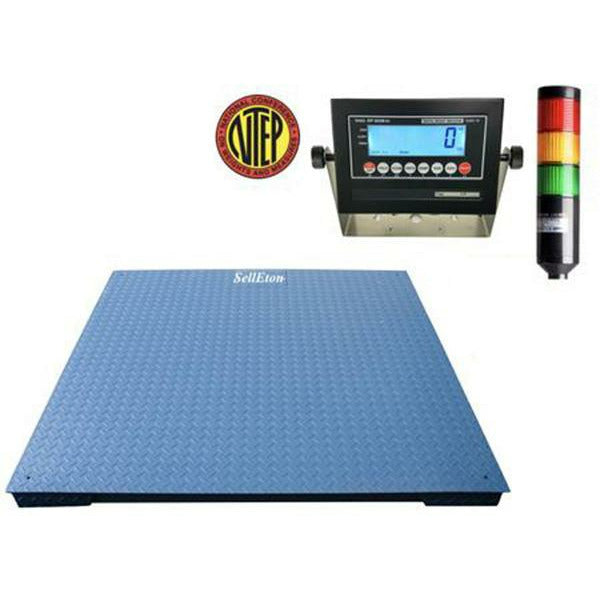

The SellEton SL-800 NTEP checkweigher floor scale pairs an NTEP floor scale with a three-color stack light and 0-5V outputs, so the operator sees at a glance whether a load is under, on or over target. Choose your size:
| Size |
Platform |
| 40" x 40" |
Pallet size, for smaller loads and tight floors |
| 48" x 48" (4' x 4') |
Standard pallet size |
| 60" x 60" (5' x 5') |
Large pallets and crates |
Every size: NTEP certified SL-800 floor scale, SL-7510 indicator with lb/kg and a rechargeable battery, three-color stack light (green, yellow, red), up to three set points and four outputs for external equipment.
Do you need a reliable way to monitor and control weights in your industrial environment?
The SellEton SL-800-0-5V NTEP floor scale, in 40" x 40", 48" x 48" or 60" x 60", is your solution. This NTEP-certified industrial floor scale enhances operational efficiency by integrating a sophisticated Check weigher, Weight control, and Stack light system designed to streamline your processes and improve accuracy.
Key Features:
-
NTEP Certified Accuracy: Ensures reliable weight measurements in commercial and industrial settings.
-
Versatile Weight Notifications: This product features a three-colors Stack light system (Green, Yellow, Red) to communicate weight statuses visually, enhancing workflow and reducing errors.
-
Adjustable Control Points: To meet specific operational needs, customize up to three notification points weighing from 1 lb to 10,000 lbs.
-
Automated Control Functions: The indicator outputs four signals for connecting to external equipment, allowing for automated control actions and upper/lower limit alarms to safeguard your operations.
-
Durable and Robust Design: Built to withstand challenging industrial environments, ensuring longevity and consistent performance.
-
Reliable Power: It comes with a SellEton SL-7510 Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.
-
NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
-
Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
-
Power Options: Includes an AC adapter; optional battery available.
-
Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
-
Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
-
Alarms: Features overload/underload alarms and an automatic error warning alarm.
-
Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
-
Connectivity: Capable of connecting to a remote display and multiple printers.
-
Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
-
Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
-
Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
-
Display: LCD or LED, 1-inch with a 6-digit numeric readout.
-
Units: lb, kg (primary), oz, g (LCD only).
-
Accuracy: Class III, 5,000 e.
-
Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
-
Excitation Voltage: 5V DC.
-
Output Current: Max 120 mA.
-
Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
-
Display Resolution: 30,000; ADC: 2,000,000.
-
Zero Stability Error: TKspn < ± 6 ppm/K.
-
Sensitivity: Internal 0.3 μV/d.
-
Input Voltage: -30 to +30mV DC.
-
Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
-
Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
-
Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
-
Display Increment: Selectable 1, 2, 5, 10, 20, 50.
-
Decimal Point: Selectable 0, 1, 2, 3, 4.
-
Conversion Rate: 12 samples/second typical.
-
Analog Signal Input Range: 1mV / V to 3mV/V.
-
Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
-
Measurement Rate: 0~15mV.
-
Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for the SL-800-Series Floor Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
-
Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-
Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Pit-Frame Installation: Choose between a permanent, in-ground pit frame installation or versatile industrial portable pit frames for flexible placement.
-
Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.
-
Ramp Access: Implement optional ramps to facilitate simple and safe loading and unloading using carts or pallet jacks.
-
Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.
-
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.
-
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
-
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.
Imagine a workspace where every weighing process is precise, streamlined, and error-free. With the SellEton SL-800-0-5V Floor Scale, you'll ensure compliance and accuracy and boost the efficiency and productivity of your operations. Feel the peace of mind that comes with knowing your industrial weighing is under control and contributing to a smoother, more efficient workflow. Take the first step towards a more productive industrial environment by choosing SellEton today. For further details and to view our full specifications, visit our download page on the homepage.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
