Are you facing challenges in maintaining the accuracy and safety of your warehouse operations?

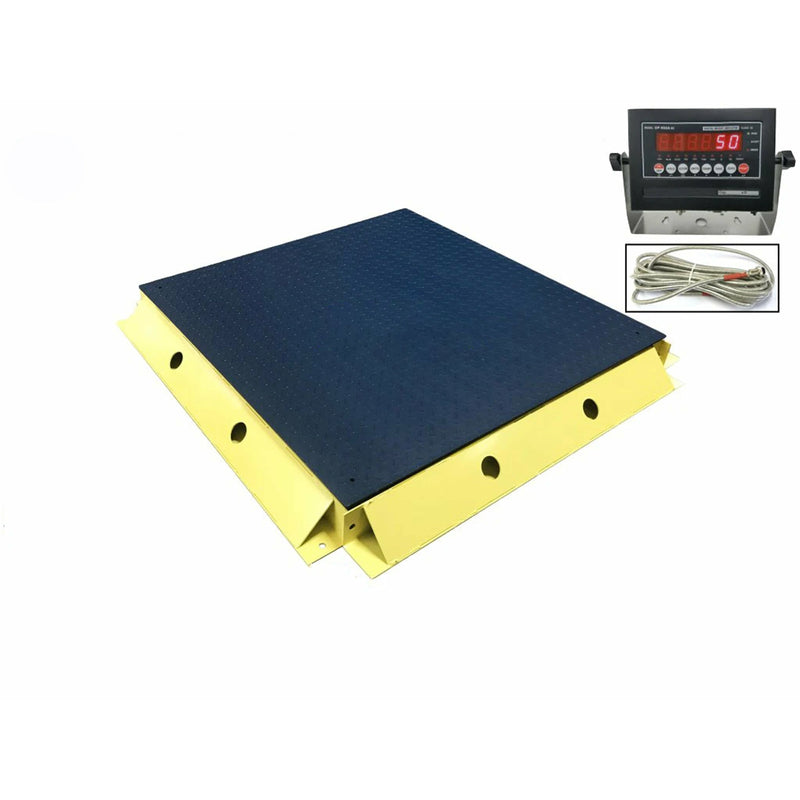

The SellEton SL-800-4x4-10K NTEP Certified Industrial Floor Scale, equipped with two Protection Bumper Guards, is your solution to prevent damage and ensure precise weight measurements even in the most demanding environments.
Key Features:
-
Robust Construction: Enjoy long-lasting durability with welded steel and tread plate construction, capable of withstanding industrial wear and tear.
-
High Accuracy: Certified by NTEP, this floor scale delivers precise measurements with a 10,000 lbs x 2 lb accuracy, crucial for your critical weighing needs.
-
Enhanced Protection: Comes with two matching-size bumper guards that shield the scale from accidental impacts by forklifts or heavy machinery, enhancing its lifespan and reliability.
-
Advanced Indicator: Features an NTEP 6 digits, 1” display indicator with lb/kg selectable options, built-in RS-232 communication port, and a rechargeable battery option for uninterrupted use.
-
Overload Protection: Safeguard your investment with 200% overload protection, ensuring the scale performs accurately under excessive loads.
-
Ease of Use: A 20’ long heavy-duty metal shielded cable provides flexibility in indicator placement, enhancing the user experience in various setup environments.
-
Versatile and Reliable: Features an SL-7510 Mild Steel Indicator with multiple weighing units (lb/kg; g/oz/lb) and a rechargeable battery for uninterrupted operation.
-
NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
-
Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
-
Power Options: Includes an AC adapter; optional battery available.
-
Weighing Units: Supports lb/kg, g/oz, lb(LCD only).
-
Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
-
Alarms: Features overload/underload alarms and an automatic error warning alarm.
-
Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
-
Connectivity: Capable of connecting to a remote display and multiple printers.
-
Certifications: NTEP approved for 5,000 divisions.
-
Additional Features: Power saving mode, automatic date and time update, ability to modify gravity based on different geographical locations, 100% manual zero range setting, splash-proof keyboard, and display.
-
Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells, operates on 110V AC adapter (included), mounting bracket and hardware included.
Indicator Specifications:
-
Display: Available in LCD or LED; features a 1-inch x 6-digit numeric display.
-
Units: Supports primary units of lb and kg, with additional options for oz and g (LCD only).
-
Accuracy Class: Rated at 5,000 e.
-
Resolution: Offers 120,000 dd for industrial use and 10,000 dd as per HB44 standards.
-
Excitation Voltage: Standard 5V DC.
-
Output Current: Maximum of 120 mA.
-
Excitation Circuit: 5 VCDs with 4 wire connections.
-
Load Cell Compatibility: Supports up to 6 load cells with a maximum of 350 Ω each.
-
Load Cell Excitation: 5 ± 0.5VDC.
-
Display Resolution: Capable of 30,000 with ADC (Analog-to-Digital Converter) of 2,000,000.
-
Zero Stability Error: TKspn < ± 6 ppm/K.
-
Sensitivity (Internal): 0.3 μV/d.
-
Input Voltage Range: -30 to +30mV DC.
-
Power Supply: 100~240VAC @ 50/60Hz.
-
Power Consumption: 5W @ 9VDC.
-
Operating Temperature: Ranges from 14 °F to 104 °F (-10 °C to +40 °C).
-
Internal Resolution: 24-bit A/D Sigma-Delta; 1,048,000 d.
-
Display Increment: Selectable options of 1, 2, 5, 10, 20, 50.
-
Decimal Point: Can be set to 0, 1, 2, 3, or 4.
-
Conversion Rate: Processes 12 samples per second typically.
-
Analog Signal Input Range: From 1mV/V to 3mV/V.
-
Analog Signal Sensitivity: Minimum 0.1 uV per graduation.
-
Measurement Range: 0~15mV.
-
Auto Zero Tracking: Adjustable from 0 to 5 dd increments.
Customization Options for the SL-800-Series Floor Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
-
Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-
Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Pit-Frame Installation: Choose between a permanent, in-ground pit frame installation or versatile industrial portable pit frames for flexible placement.
-
Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.
-
Ramp Access: Implement optional ramps to facilitate simple and safe loading and unloading using carts or pallet jacks.
-
Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.
-
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.
-
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
-
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminum.
Investing in the SellEton SL-800-4x4-10K Floor Scale means not just meeting, but exceeding, safety and efficiency standards in your warehouse operations. Feel confident and in control, knowing that your workflow is optimized for both safety and accuracy. Enhance your operational capabilities today and see the difference it makes in your daily logistics.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
