Key Highlights
-
Double-ended shear beam design for rigid mount applications
-
Wide capacity range: 2,000 lb to 20,000 lb with the same profile
-
Stainless steel construction for strength and corrosion resistance
-
Hermetically sealed to IP69 for maximum protection in harsh environments
-
High accuracy with ±0.03% full scale non-linearity
-
Wide excitation range (5–15 VDC) for versatile system integration
-
25 ft cable with color-coded wiring for easy installation
-
Backed by a one-year limited warranty

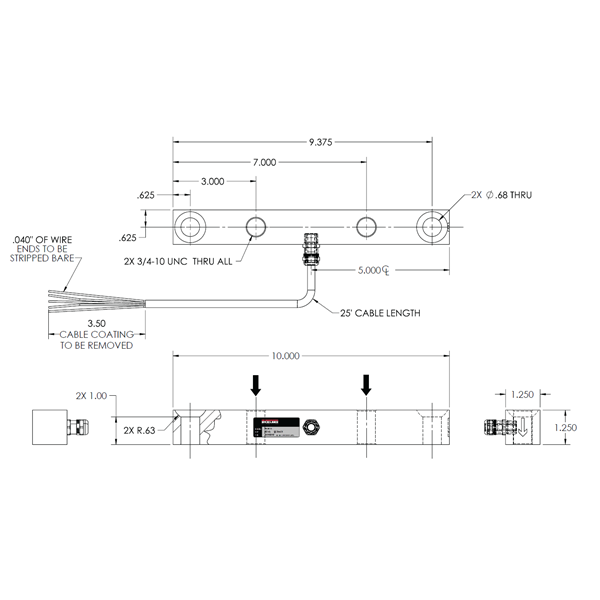

The PL9110 Load Cell is a low-profile, double-ended shear beam sensor designed for weighing equipment commonly fixed to truck bodies. With its rigid mount design and capacity range from 2,000 lb to 20,000 lb, the PL9110 is a versatile and dependable solution for onboard and industrial weighing applications.
Built from stainless steel, this load cell delivers long-lasting durability and corrosion resistance in tough working conditions. Its hermetic IP69 sealing ensures total protection against dust, water, and extreme weather, making it suitable for both indoor and outdoor installations.
Offering a 2.0 mV/V full scale output and ±0.03% non-linearity, the PL9110 provides exceptional accuracy for demanding weight measurement tasks. With a 25-foot cable and standard wire color coding, installation and integration into existing systems are fast and straightforward.
Ideal for truck bodies, hoppers, tanks, and other heavy-duty weighing systems, the PL9110 is engineered to deliver precision, reliability, and resilience in every application.
Specifications
| Feature |
Details |
| Full Scale Output |
2.0 mV/V |
| Output Resistance |
700 Ω (nominal) |
| Input Resistance |
736 Ω (nominal) |
| Material/Finish |
Stainless steel |
| Temperature Range |
14 °F to 104 °F (-10 °C to 40 °C) |
| Rated Excitation |
5–15 VDC |
| Non-linearity |
±0.03% full scale |
| Insulation Resistance |
5,000 megaohms at 50 VDC |
| Seal Type |
Hermetically sealed, IP69 |
| Cable Length |
25 ft |
| Wire Color Code |
Red – Excitation +
Green – Signal +
Black – Excitation -
White – Signal -
Yellow – Shield |
| Warranty |
One-year limited |
The PL9110 Stainless Steel Load Cell delivers rugged durability, IP69 hermetic sealing, and superior accuracy for truck body and industrial weighing applications.
Contact us today for pricing, technical details, or assistance in configuring the PL9110 for your system.
